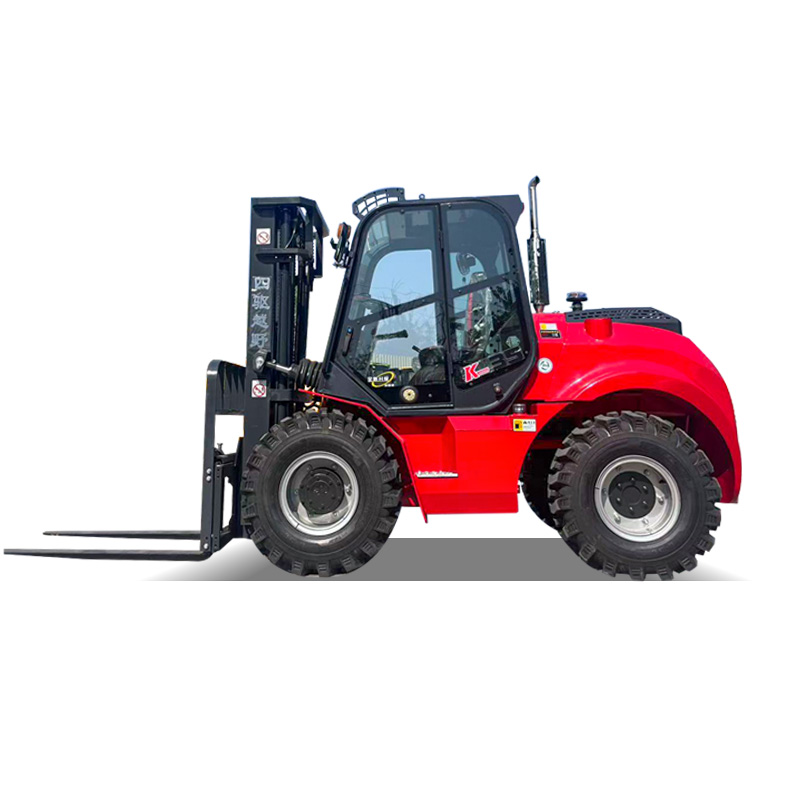

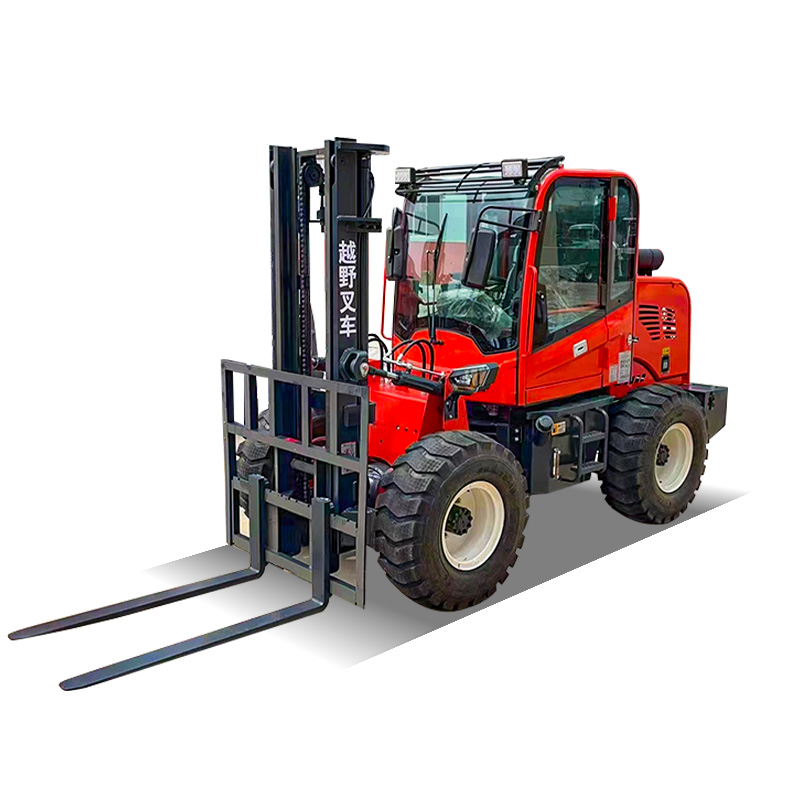

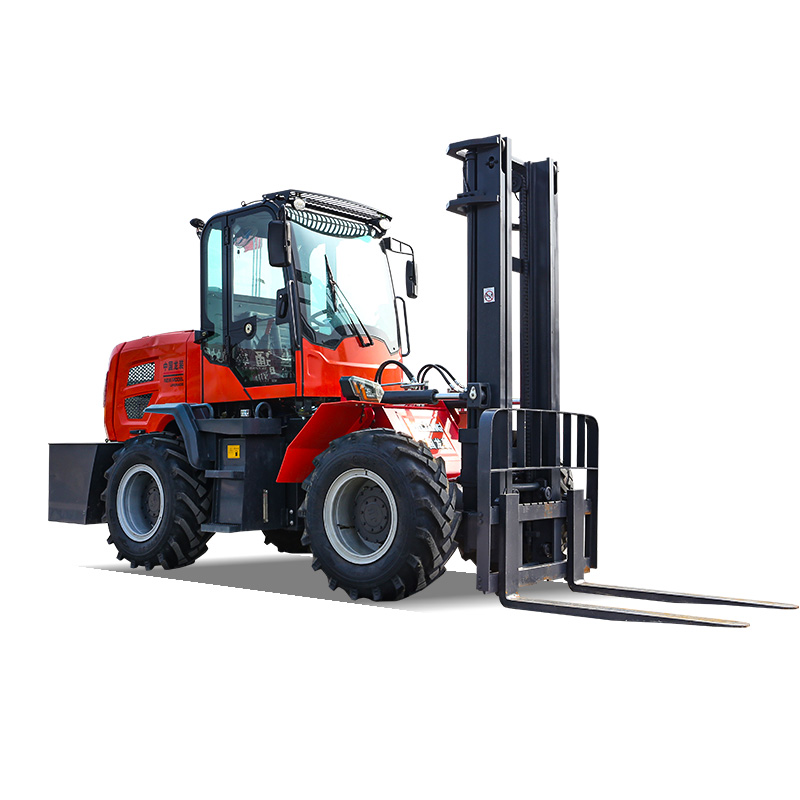

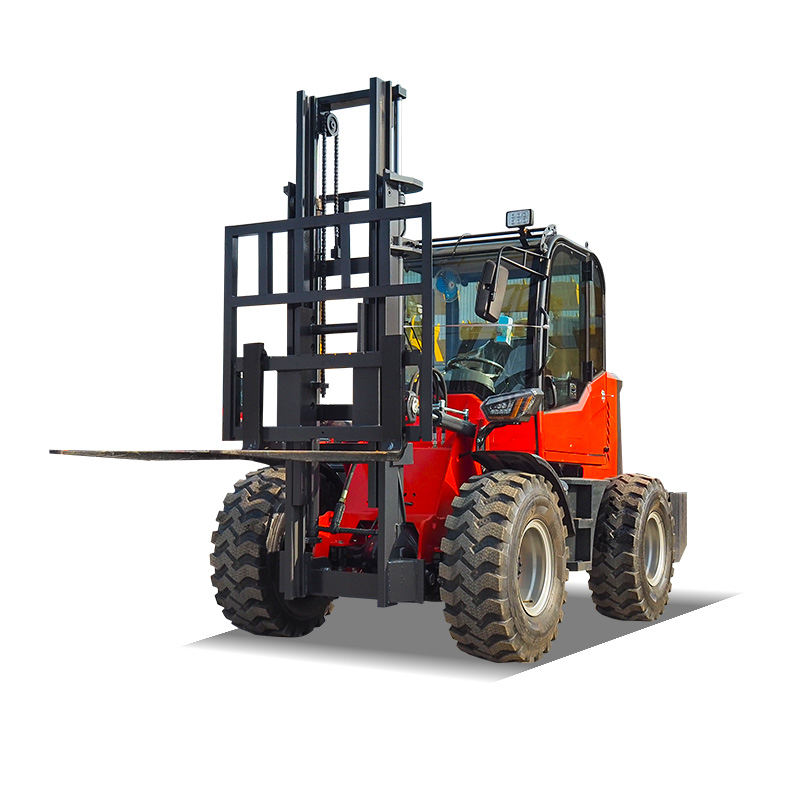

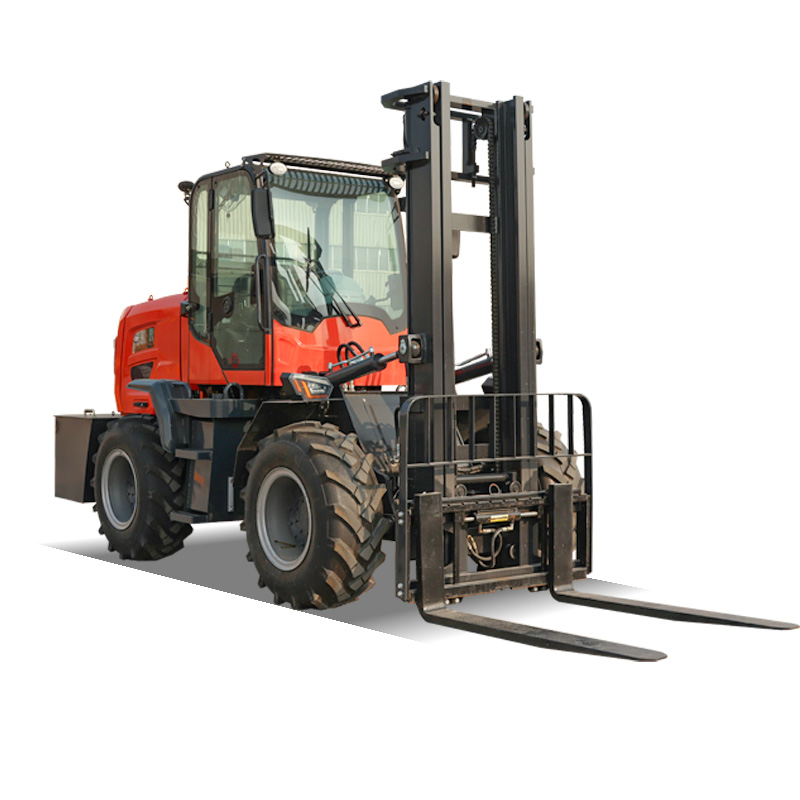

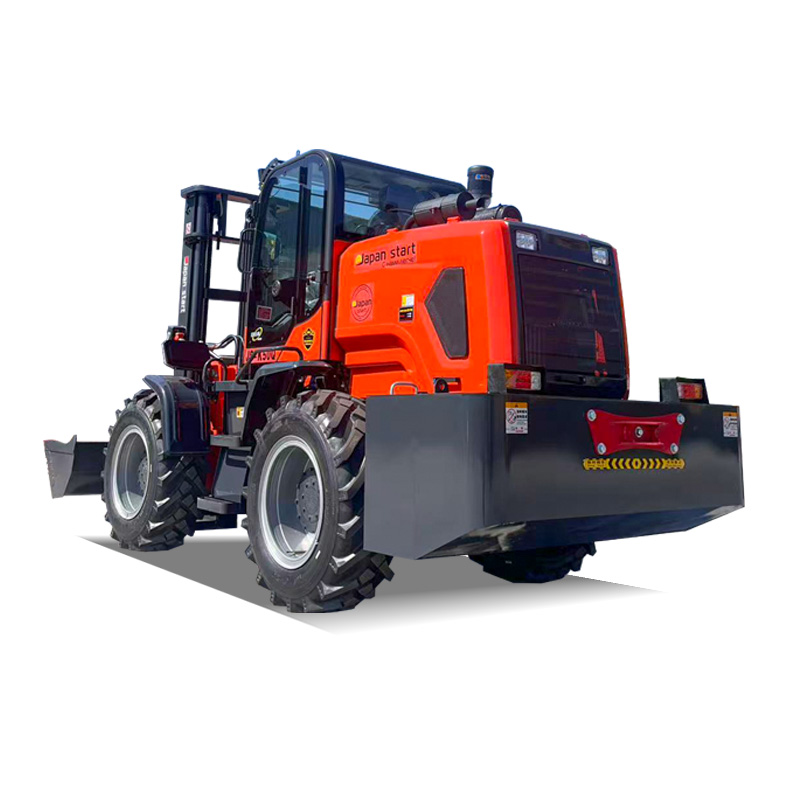

Short Hinged Steering - The Perfect Tool for Narrow Spaces

With a turning radius of only 2900mm and a hinged frame design, this vehicle offers significantly greater maneuverability than ordinary off-road forklifts.

Move freely in narrow spaces such as forest paths, warehouse corridors, and inside containers.

The front and rear frames can swing relative to each other, enabling them to adapt to uneven roads. All four wheels remain in contact with the ground at all times, resulting in greater stability.

All-wheel drive - Unafraid of any terrain

All-wheel drive enables you to conquer all terrains, including muddy roads, snowy areas, sandy grounds, and rocky slopes with ease.

Wheel-mounted heavy-duty cast steel bridge, with strong impact resistance. It remains stable and reliable even under heavy-load conditions.

The maximum climbing angle is ≤ 38°, making it effortless to perform operations on steep slopes.

Ultra-high lifting capacity - up to 8 meters

Rated lifting weight: 3500 kg

The lifting height is available in two options: 3000–6000mm (standard) or 3000–8000mm (customized).

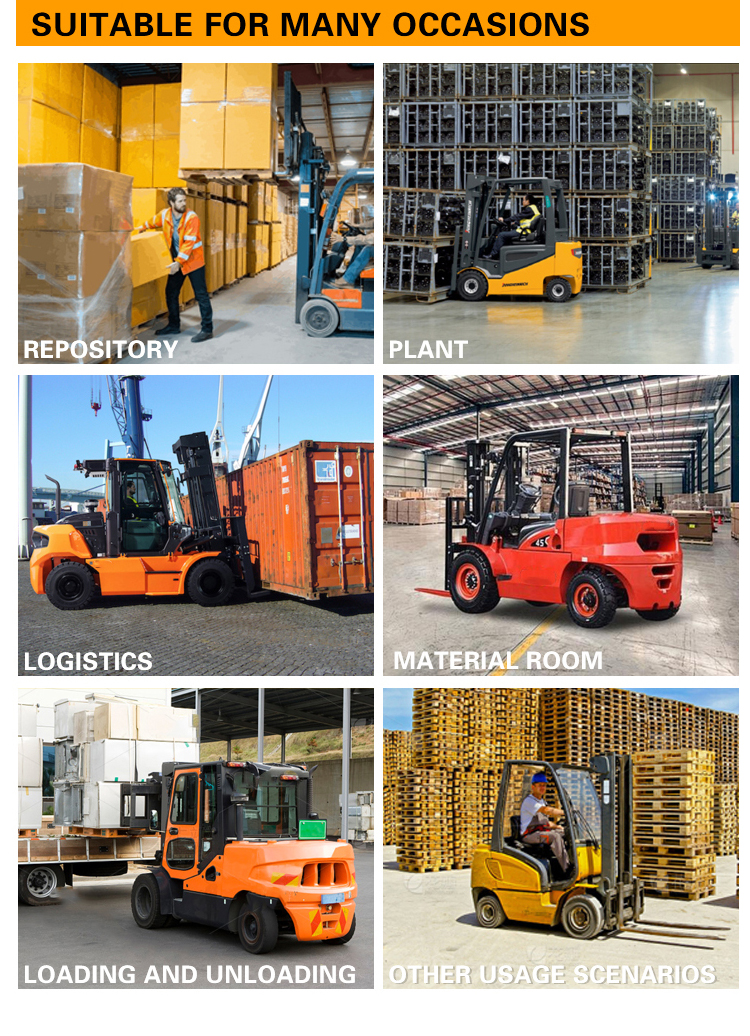

It can be used in conjunction with scenarios such as high-level stacking, high-rise shelves, and truck loading/unloading, and is multi-functional in one device.

Strengthened chassis and tires

20.5/70-16 Strengthened tires, with large tread design, providing excellent grip and being highly durable and wear-resistant

The front end of the gantry has a ground clearance of 180–250mm, allowing it to easily pass over obstacles.

The overall size of the machine is 3800×1900×2340mm. The wide-body frame provides a wide field of vision.

Powerful powertrain system

490 Euro IV variable-frequency engine, meeting Euro IV emission standards, energy-efficient and environmentally friendly

265 dual high and low speed large pump torque converter transmission. It can switch between high and low speeds flexibly. At low speed, it has strong climbing power; at high speed, it has high transfer efficiency.

The hydraulic system has sufficient flow and the lifting response is rapid.

Flexible self-weight selection

Overall weight: 4500kg (standard version) / 3320kg (lightweight version)

The appropriate self-weight can be selected according to the application scenario, taking into account both adhesion and fuel economy.
