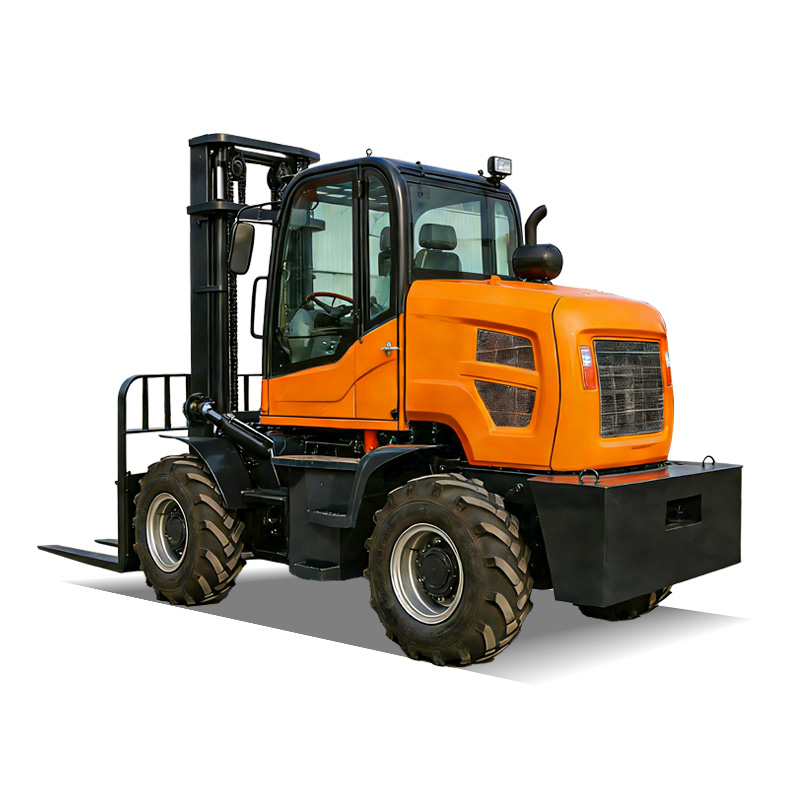

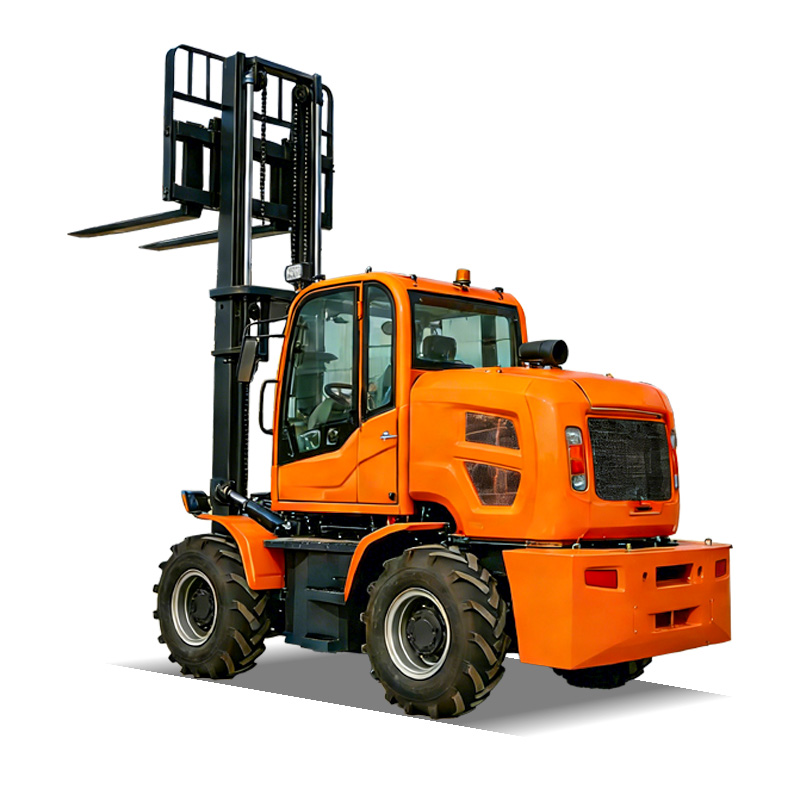

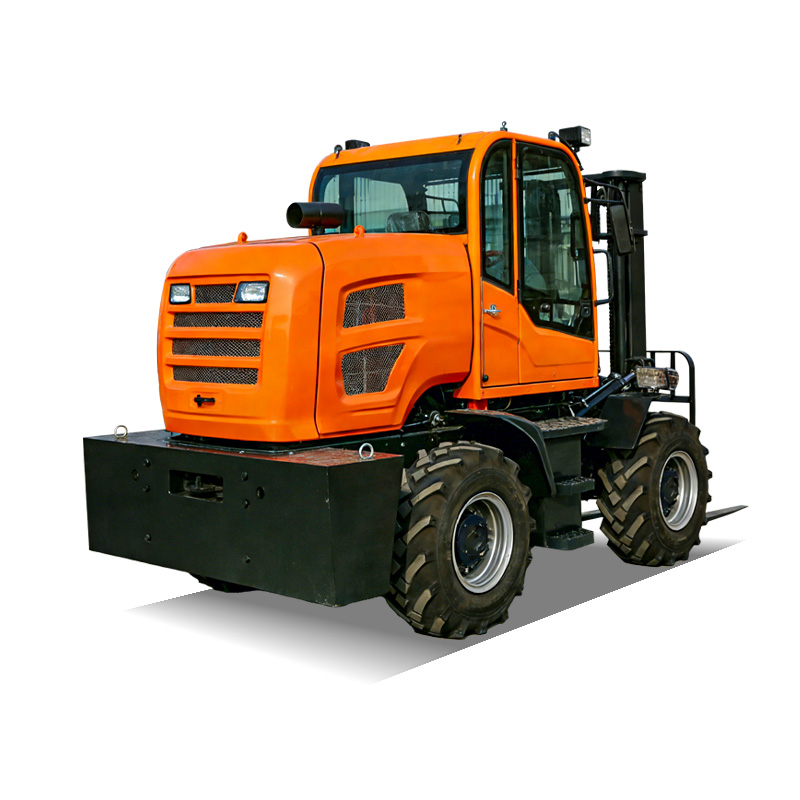

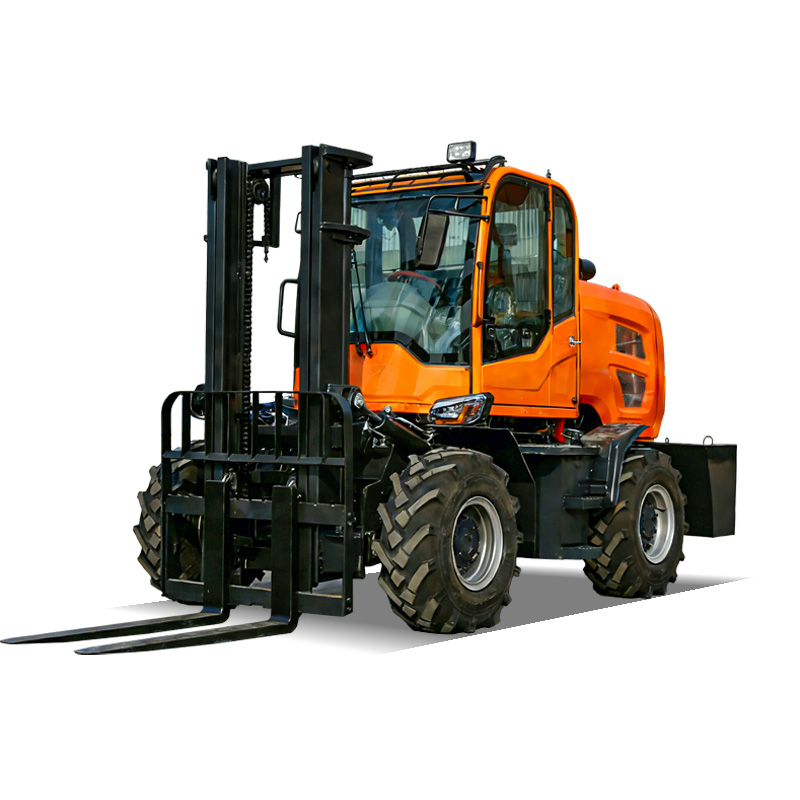

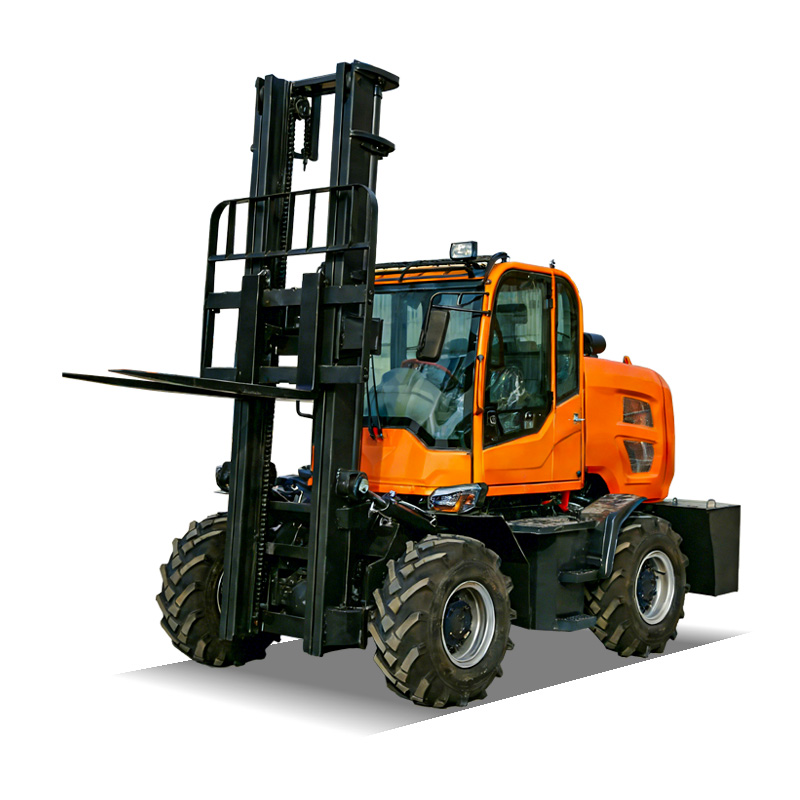

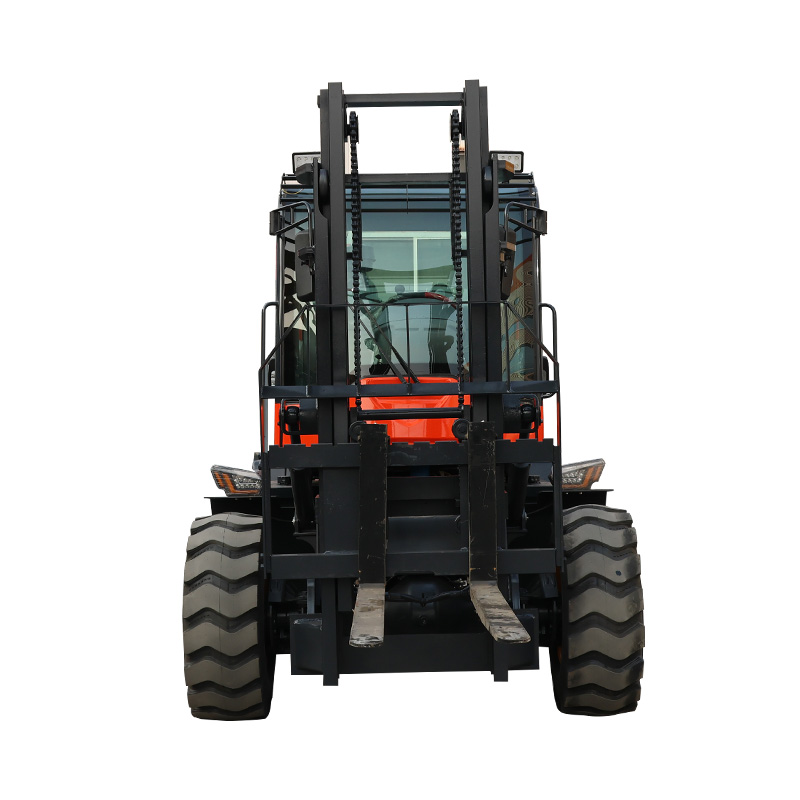

Post-hung steering - The flexible representative in heavy-duty models

The turning radius is only 3300mm, 200mm less than that of the standard 5T forklift (3500mm)

The wheelbase is 2600mm, and with the rear hinged design, the steering response is very sensitive.

Dimensions: 4250×2000×2650mm. It is shorter, narrower and lower than the standard version.

Move freely in heavy-load scenarios with limited space such as mine tunnels, port storage areas, and large warehouses.

5-ton heavy-duty lifting - Performance without compromise

Rated lifting capacity: 5000kg, meeting the requirements for heavy goods transportation

The lifting height can be selected from 3000 to 7000mm, suitable for high-level stacking and loading/unloading by large trucks.

The length of the fork is 1550mm, which is longer than the standard version and is suitable for larger-sized goods.

The width of the frame is 180mm. It has a sturdy structure and can withstand heavy loads stably.

4102 Boost Power - Powerful Core

4102 Boost engine, with strong power and abundant torque at low speeds

China IV variable-frequency technology, in line with the latest emission standards, is energy-efficient and environmentally friendly.

280 sets of high and low speed torque converter gearboxes, with efficient transmission and smooth shifting.

The climbing angle is ≤ 38°, which is stronger than the standard 5T model (35°) and enables smoother climbing under heavy loads.

Off-road capability - All-terrain Conqueror

Front end ground clearance: 300–380mm, excellent obstacle-crossing ability

16/70-20 Large-sized tires, excellent grip in mud, gravel and snow conditions

Four-wheel drive + wheel-mounted heavy-duty cast steel axle, significantly enhancing shock resistance and load-bearing capacity

Flexible self-weight selection

Overall weight: 6100kg (standard version) / 4460kg (lightweight version)

The standard version has strong adhesion and is suitable for harsh terrains.

The lightweight version reduces the need for heavy ground compaction and is suitable for soft ground.
