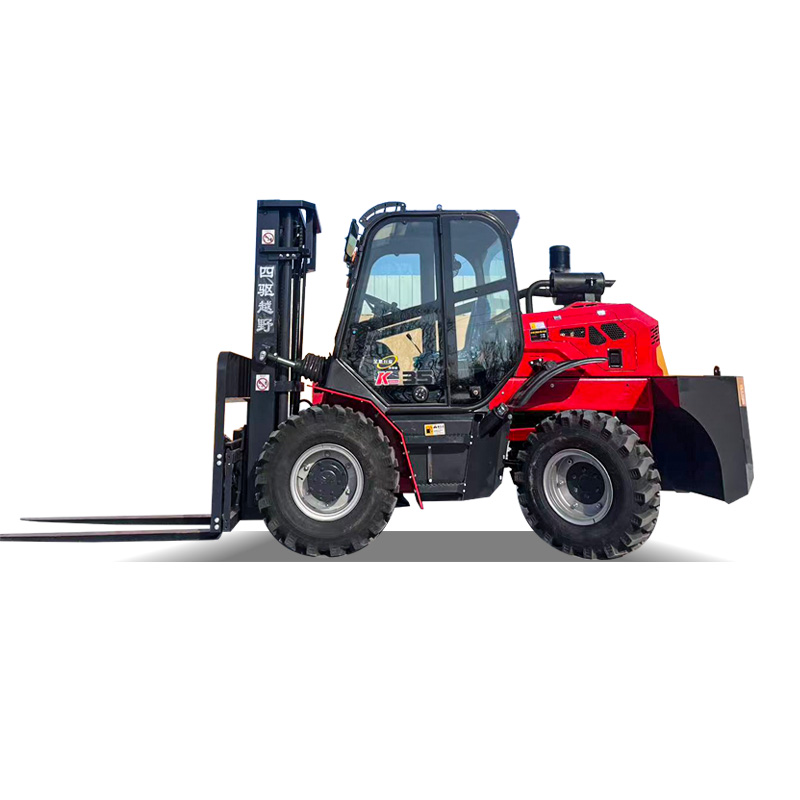

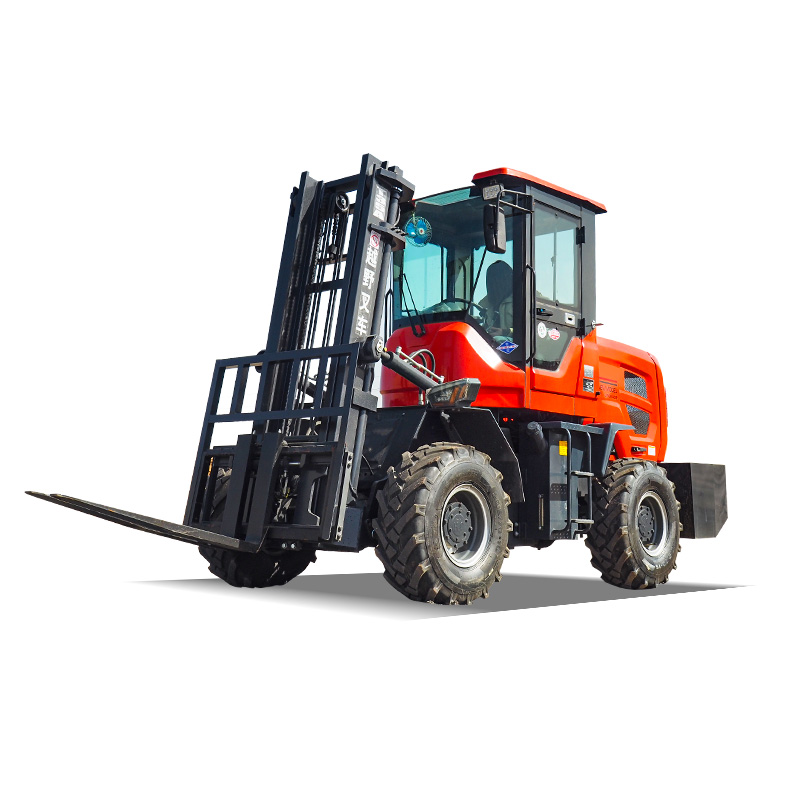

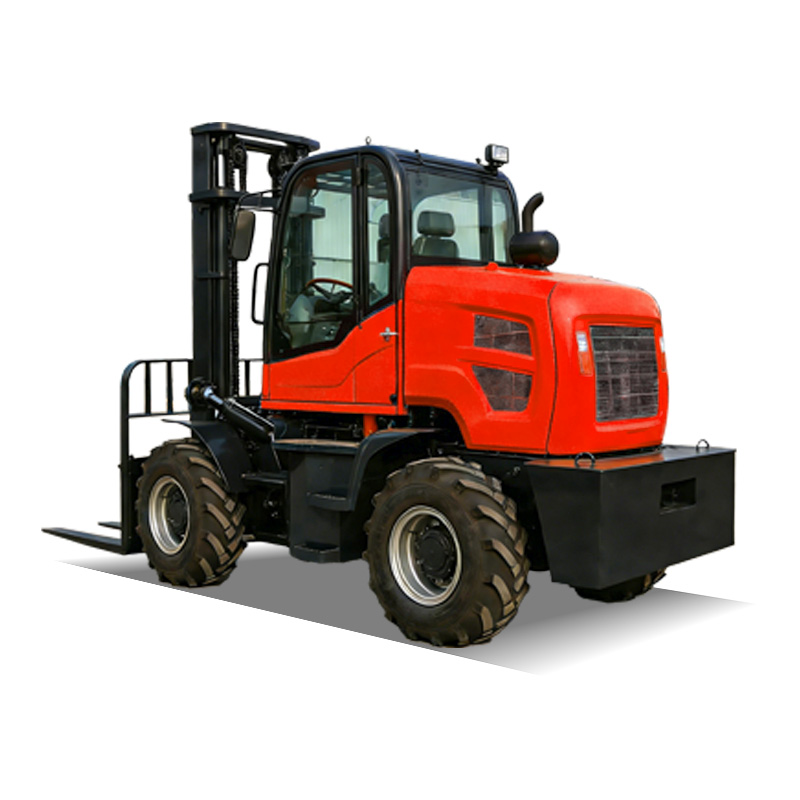

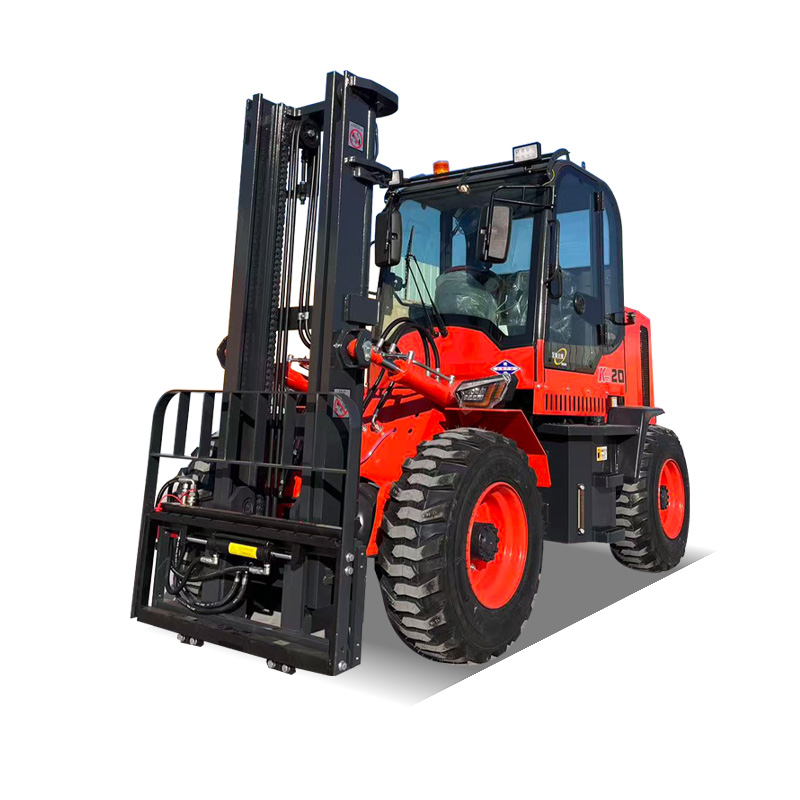

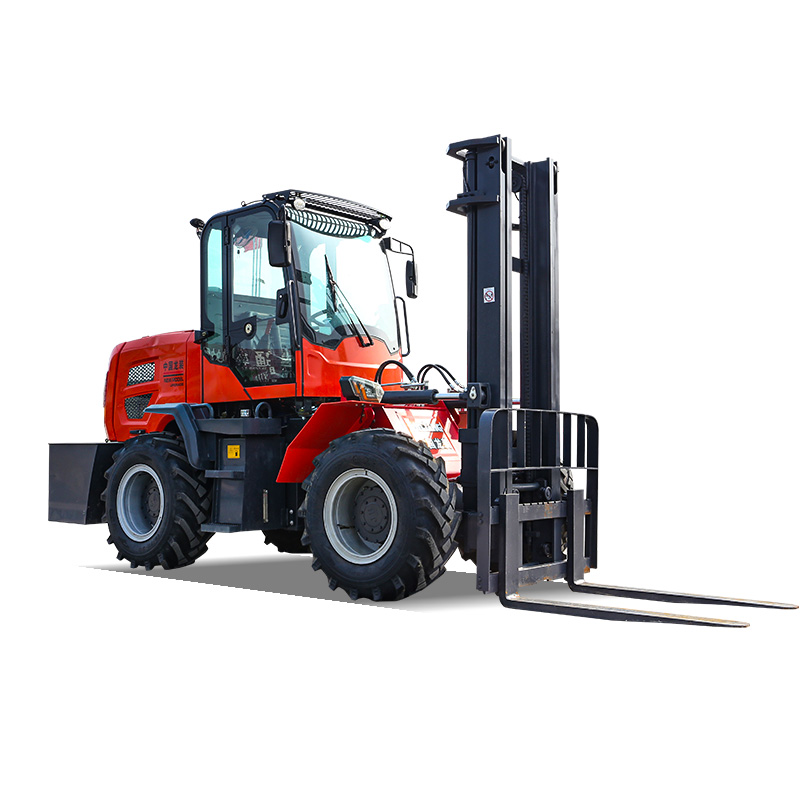

Mid-mounted articulated steering - The flexible ceiling

The turning radius is only 2400mm, the smallest in the entire series, 500mm less than the short articulated version.

The wheelbase is only 1850mm, and the total length of the vehicle is only 3650mm. It can easily navigate through aisles in supermarkets, rows in orchards, and narrow spaces in warehouses.

The center hinge design ensures more coordinated movement of the front and rear frames, resulting in better four-wheel contact on bumpy roads.

Four-wheel drive - All-terrain passing capability

The four-wheel drive system can adapt to all scenarios including muddy terrain, snowy terrain, sandy terrain, and rocky slopes.

Wheel-mounted heavy-duty cast steel bridge, resistant to impact and capable of withstanding heavy loads. Even in harsh conditions, it remains reliable.

The maximum climbing angle is ≤ 38°, and there is no pressure when operating on steep slopes.

Stable lifting - Handles heavy loads at high heights with ease

Rated lifting capacity: 3500kg

The lifting height can be selected from 3000 to 6000mm, meeting the needs of most stacking and loading/unloading operations.

The width of the frame is 160mm, and it is structurally compact yet maintains high strength.

Off-road chassis configuration

20.5/70-16 reinforced tires, with large tread design, providing excellent grip

The front end of the gantry has a ground clearance of 180-250mm, enabling it to pass through obstacles smoothly and effortlessly.

The overall size of the machine is 3650×1880×2150mm. The width is moderate and the field of view is good.

Efficient power system

490 Euro IV variable-frequency engine, meeting Euro IV emission standards, energy-saving and environmentally friendly

265 dual high-low speed torque converter transmission, capable of flexible switching between high and low speeds. It offers strong climbing power at low speeds and efficient transfer performance at high speeds.

Flexible self-weight selection

Overall weight: 4400kg (standard version) / 3510kg (lightweight version)

The lightweight version is more suitable for soft surfaces (such as farmland, sandy areas), reducing the need for ground compaction.
