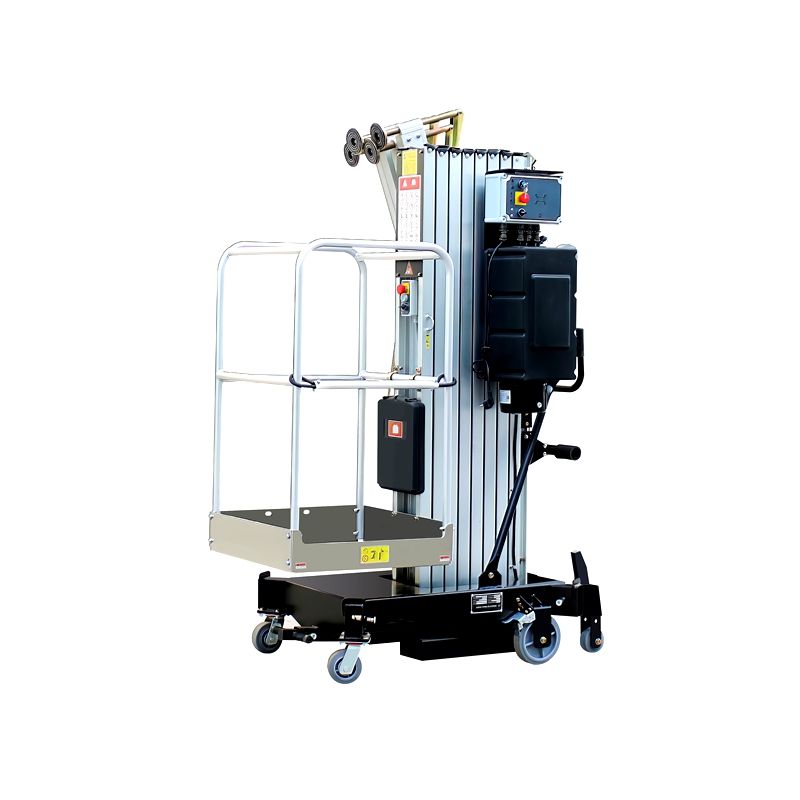

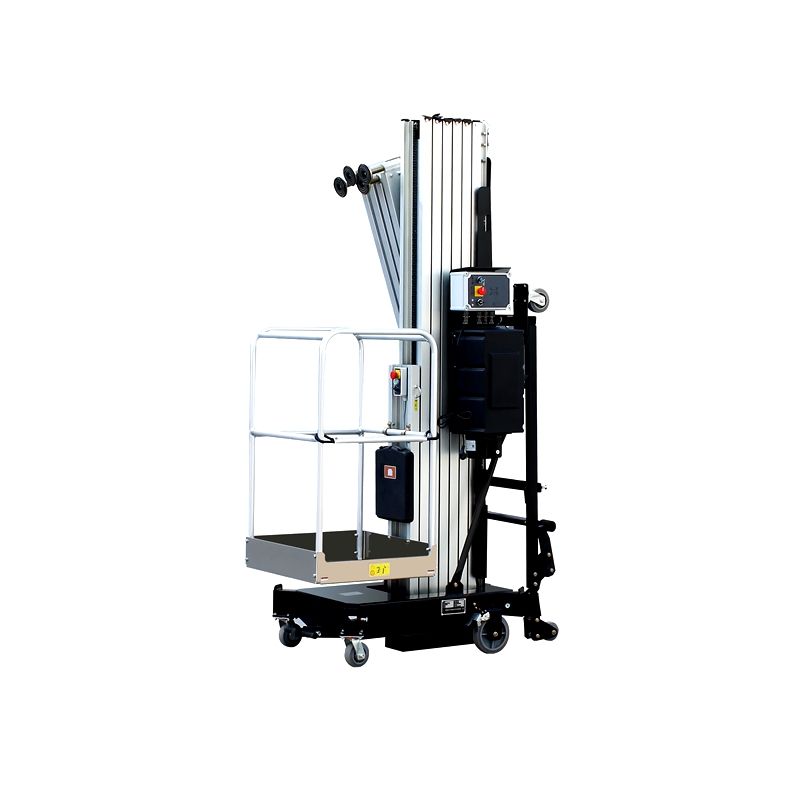

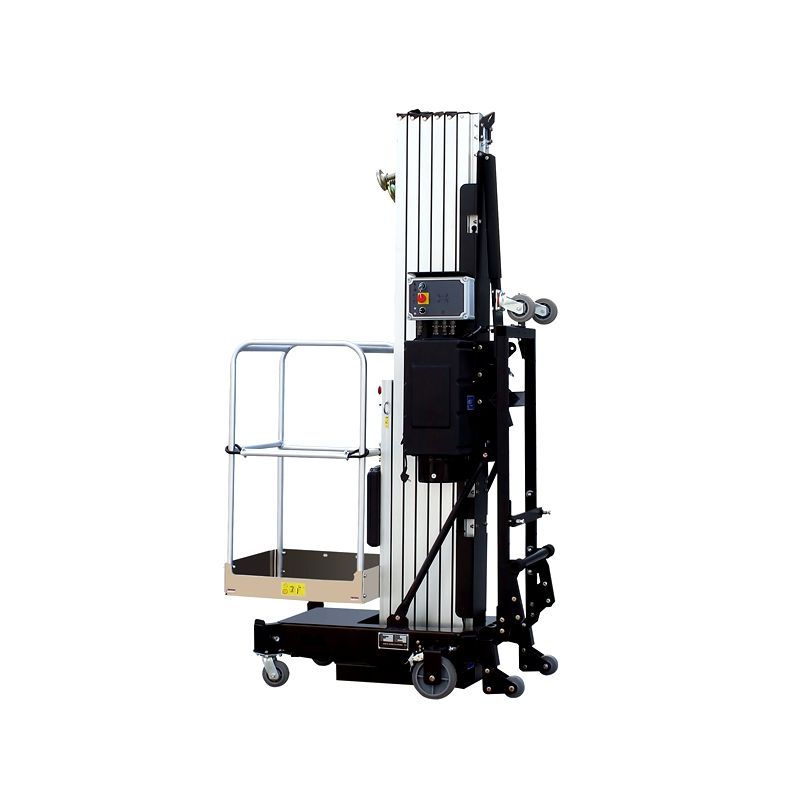

ATWY6-150-1-B Single-Mast Aluminum Alloy Lifting Platform: A Load-Upgraded Flexible Solution for 6m Mid-Low Altitude Operations

6m Height Coverage: Precise Extension for Mid-Low Altitude Scenarios

The ATWY6-150-1-B features a core structure made of high-strength, high-quality aluminum alloy. While retaining the compactness of the single-mast design, it elevates the working height to 6m, precisely covering the commonly used 4-6m mid-low altitude range. It not only meets routine needs such as retrieving goods from 5th-level warehouse shelves and installing 3rd-level ceilings in shopping malls but also handles slightly higher tasks like inspecting the tops of workshop equipment and building exhibition trusses—expanding application scenarios by 30% compared to 4m-class platforms.

The 0.65×0.65m platform size balances operational space and passability. With a 150kg rated load, it stably supports one person plus combined tools (e.g., impact drills, levels, light scaffolding accessories), increasing load capacity by 50% compared to light-load models of the same height. This addresses the mid-low altitude operation pain point of "being unable to reach a little higher or carry a little heavier."

Balancing Compactness and Load Capacity: Flexible Performance at 360kg Weight

With external dimensions of 1.40×0.78×1.97m, the width is controlled at 0.78m, allowing easy passage through 0.9m-wide workshop aisles, shopping mall freight elevators, and equipment gaps—nearly 40% narrower than dual-mast platforms with the same load capacity. The 360kg overall weight achieves "strength without excess weight" by optimizing the thickness distribution of aluminum alloy profiles (key parts thickened by 1.2mm). Combined with an anti-slip push-pull handle, the pulling resistance for one person on flat ground is ≤50N, with a turning radius of 1.5m, enabling smooth relocation in moderately narrow spaces such as supermarket shelf rows and laboratory equipment areas.

The bottom polyurethane tires adopt a "wide tread + shallow pattern" design (80mm tread width) with walking noise ≤58dB. They reduce wear on epoxy floors and wooden floors while enhancing grip on slightly uneven ground (height difference ≤8mm) to avoid slipping risks.

1.1kW Power Adaptation: Stable Output for Mid-High Frequency Operations

The 1.1kW motor is compatible with 220V power supply, optimizing hydraulic system flow for 6m height and 150kg load. The lifting speed reaches 0.45m/s, taking only 13 seconds to rise from the ground to 6m—15% faster than models with the same parameters. After 8 hours of continuous operation (10 lifts per hour), the motor temperature rise is ≤40℃, and the surface temperature of the machine body is ≤45℃, making it suitable for high-frequency start-stop scenarios such as e-commerce warehouse restocking and office building lamp replacement.

The remote controller is upgraded to a 2.4G wireless module with enhanced signal penetration. In workshop environments surrounded by metal equipment, the effective control distance remains 10m, supporting two modes: "one-key lifting" for quick positioning and "inching fine adjustment" (accuracy ±10mm) for precise operations like lamp alignment and pipe joint docking—reducing time wasted on repeated lifting.

Safety Protection: Full-Scenario Guarantee for 6m Height

Active Protection Mechanism:

The level gauge is equipped with a dual-axis tilt sensor. When the tilt angle exceeds 3°, in addition to sound and light alarms, it automatically triggers a slow stop of the lifting system (instead of an emergency stop) to prevent tools from sliding due to sudden braking. The quick locker uses "mechanical latch + electromagnetic assistance" dual fixation, with impact resistance increased to 800N after locking, adapting to stability needs under slight shaking at 6m height.

Emergency Response Design:

The emergency descent valve features a "quick pressure relief + buffer damping" dual structure. During power outages, manual operation allows the platform to descend at a constant speed of 0.3m/s (instead of free fall), taking only 20 seconds to reach the ground from 6m height while avoiding tool damage from violent vibrations. The platform's chain protection is heightened to 1.2m, with an anti-slip pedal (2mm pattern depth) added at the bottom, forming a closed-loop protection with lifting guardrails to reduce the risk of falling during high-altitude leaning operations.

Configuration Expansion: Adapting to Scenario Characteristics on Demand

Core Advantages of the Basic Version: Standard configurations such as lifting guardrails, remote control, and emergency descent valves meet general safety and convenience needs, suitable for most indoor mid-low altitude operations.

Scenario-Adapted Upgraded Versions:

The optional battery-powered lifting version (12V/80Ah battery) offers 5 hours of runtime, eliminating cable restrictions for outdoor billboard installation and community surveillance pole maintenance;

The explosion-proof motor version (Ex dⅡBT4) is suitable for pipeline inspection in chemical workshops, with the entire machine undergoing anti-static treatment to avoid sparks igniting volatile gases;

The auxiliary walking version adds electric drive wheels (2km/h speed), reducing manpower by 60% during long-distance relocation (e.g., large logistics parks) and supporting one-key switching between "manual/electric" modes.

Key Application Scenarios: Exclusive Value at 6m Height

Commercial Venue Maintenance: The 6m height covers 3rd-level shopping mall ceilings and high supermarket shelves. With a 0.78m width, it passes through shelf aisles, and the 150kg load carries cleaning tools + replacement lamps to complete multi-point maintenance in one operation;

Industrial Workshop Assistance: Beside automobile production lines, it lifts to 6m to inspect suspended conveyors, with remote operation avoiding personnel entry into equipment operation areas;

Municipal Light Operations: Replacing bulbs in community street lamps (5-6m height) and installing community surveillance cameras. The optional battery version eliminates dependence on mains electricity, and polyurethane tires protect community walkway floor tiles;

Efficient Warehousing and Logistics Operations: Restocking 5-6m high shelves in e-commerce warehouses. The 150kg load can carry 8 standard cartons at a time, reducing the number of up-and-down trips.

Product Positioning: A "Versatile Hand" for Mid-Low Altitude Operations

The ATWY6-150-1-B fills the gap between 4m light-load and 8m heavy-load mid-low altitude equipment with its optimal combination of "6m height + 150kg load + compact size." It retains the flexible passability of single-mast platforms while enhancing load capacity and height coverage, providing an "efficient, safe, and adaptive" one-stop solution for mid-high frequency mid-low altitude operations in commercial, industrial, and municipal fields.
