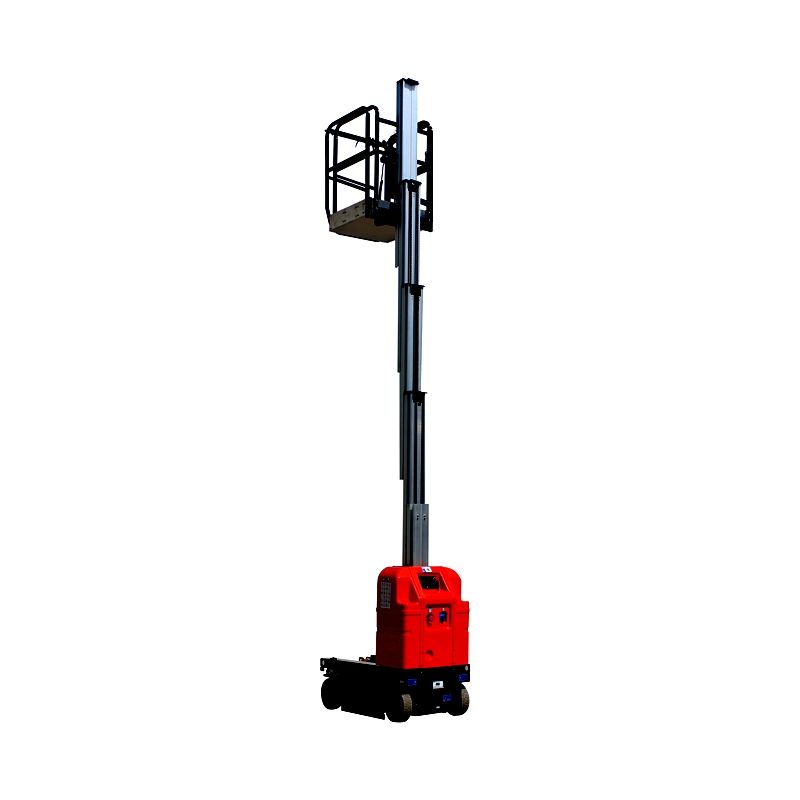

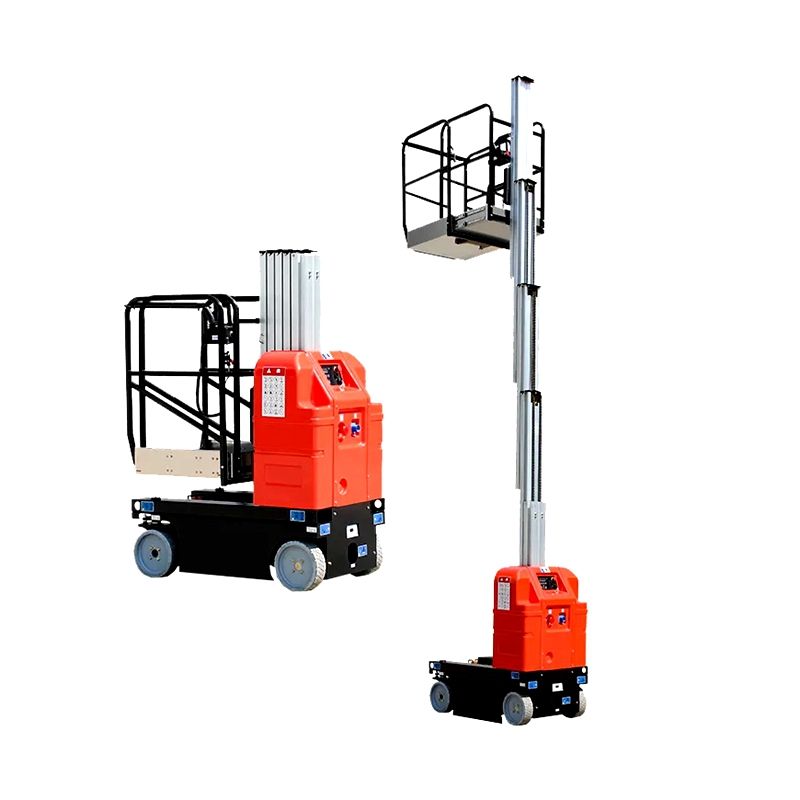

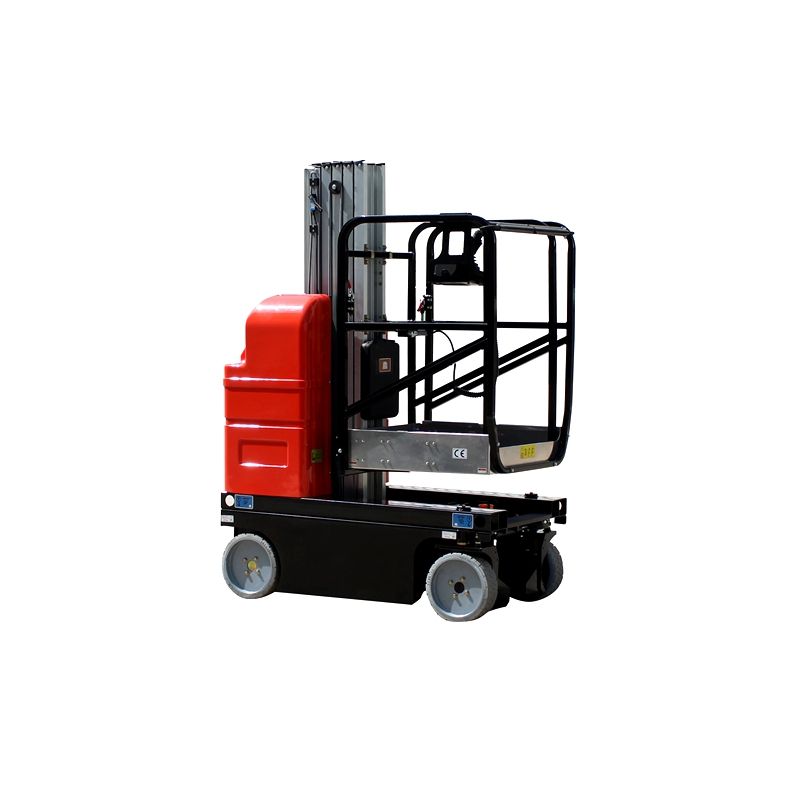

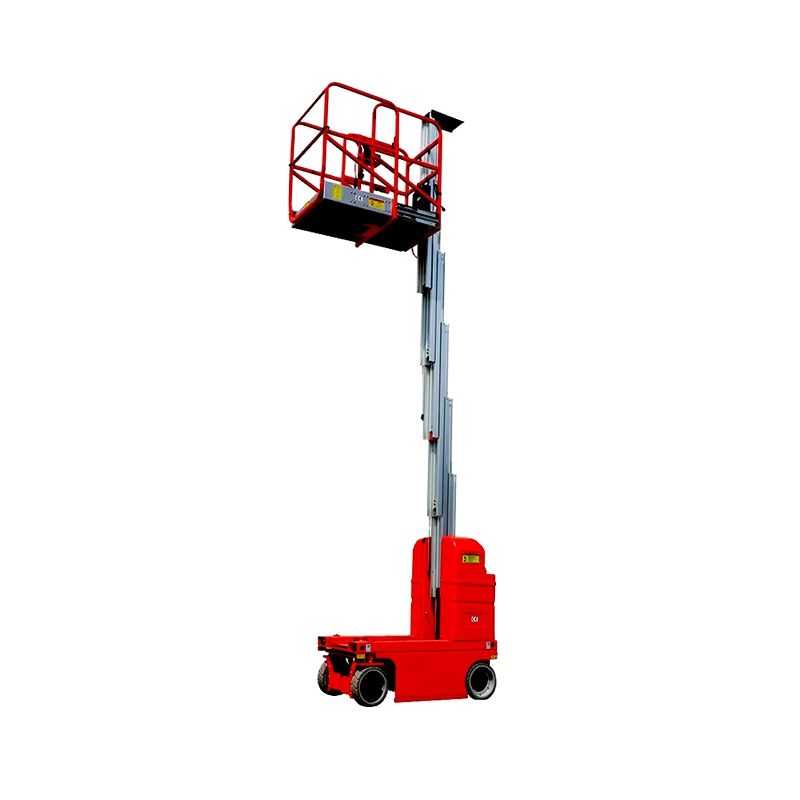

ATWP-7.5-C Self-Propelled Mast Aerial Work Platform: High-Reach Agility for 9.5m Tasks

When your work demands 9.5m height—like installing high ceiling trusses in stadiums, maintaining tall warehouse racking, or repairing 9m-tall streetlights—most lifts either lack the reach or lose agility at maximum height. Bulky models get stuck in 1m-wide gaps; lifts with 9m+ height sacrifice maneuverability; and underpowered ones struggle with slopes. The ATWP-7.5-C changes this: a self-propelled mast lift with 9.50m maximum working height, 0 turning radius, and precision engineering that keeps 9.5m tasks efficient and accessible.

9.5m Reach, 0 Turning Radius: Maneuver at New Heights

9.5m isn’t just an extra meter—it’s the difference between finishing a stadium ceiling job in a day vs. two. What sets this lift apart is how it maintains agility even at full height:

0 minimum inner turning radius lets it spin 360° in place, critical for navigating between 1m-wide stadium beams or warehouse pillars.

1.40m length + 0.82m width slide through 0.9m doorways and squeeze into elevator shafts, even with the mast extended.

Self-propelled at 1.1km/h when lifted, so you can glide between 9.5m work spots without lowering the platform—no more wasting time repositioning.

On flat ground, it hits 4km/h in collapsed state，covering 200m (the length of a small stadium) in 3 minutes. And with 25% maximum gradeability，it climbs warehouse ramps or sloped construction sites without straining—ideal for outdoor tasks like repairing 9m streetlights on hilly roads.

0.78×0.70m Platform: Compact Efficiency for 125kg Loads

Don’t let the 125kg capacity fool you—it’s engineered for focused, high-reach work. This load is perfect for one worker + 25kg of tools: a 10kg wrench set, 8kg power drill, and 7kg safety harness, with room to spare. The 0.78×0.70m platform stays compact on purpose: it fits through narrow stadium tunnels, tucks under overhead pipes, and balances stability with accessibility.

At 7.50m maximum platform height (just 2m below full reach), it’s low enough to navigate under 8m ceiling beams, then rises to 9.5m to reach the highest points—no need to detour around obstacles.

Self-Propelled Power: Steady Performance for 9.5m Tasks

Dual 12VDC/0.4KW drive motors deliver the power to match the height. They handle 25% slopes effortlessly, whether carrying a worker + tools up a stadium ramp or climbing a sloped warehouse floor. The 2×12V/100Ah batteries last 5.5 hours of mixed use—enough to install 15 stadium light fixtures, service 25m of 9m warehouse racking, or repair 8 streetlights.

Recharging is simple: the 24V/11A charger tops up batteries overnight, so it’s ready for 7am starts. No generators, no cords—just plug in and go.

Precision Controls: Smooth Moves at 9.5m

High reach demands precise control, and this lift delivers with proportional walk /lifting systems:

Inch forward at 0.3km/h to align with a 9.5m ceiling joist—no overshooting.

Raise/lower in 5cm increments to match the height of stadium trusses or streetlight brackets.

Glide sideways at 0.2km/h to paint a straight edge along a 9m wall—no jerks, no mistakes.

Even with the mast extended, the controls feel responsive, making solo 9.5m work less stressful and more efficient.

Safety Systems Built for High Heights

Working at 9.5m requires extra safeguards, and this lift doesn’t cut corners:

Emergency descent system: Drops 9.5m in 40 seconds if power fails—faster than most 9m+ lifts, which take 50+ seconds.

Pit protection: Sensors stop the lift if it detects a 10cm drop, critical for uneven construction sites or stadium floors.

Explosion-proof oil lines: Reinforced hoses resist damage from falling debris, a must for building sites.

Full-height walking stability: Stays steady at 1.1km/h even at 9.5m, so you can move confidently.

Where It Shines: 9.5m Tasks in Tight or Sloped Spaces

This lift excels where height and agility collide:

Stadiums: Reaches 9.5m ceiling trusses, navigates between narrow beams, climbs ramps to upper levels.

Tall Warehouses: Services 9m racking, fits between 1m-wide aisles, self-drives to loading bays.

Municipal Work: Repairs 9m streetlights on hilly roads, fits through narrow sidewalk gaps.

Construction Sites: Installs 9.5m wall panels, turns in tight corners around building materials.

The ATWP-7.5-C proves 9.5m height doesn’t require sacrificing agility. Its self-propelled design, 0 turning radius, and focus on high-reach efficiency make it the go-to for stadiums, tall warehouses, and 市政 projects where every meter matters. Finally, a lift that reaches the heights you need—without getting stuck on the way up.
