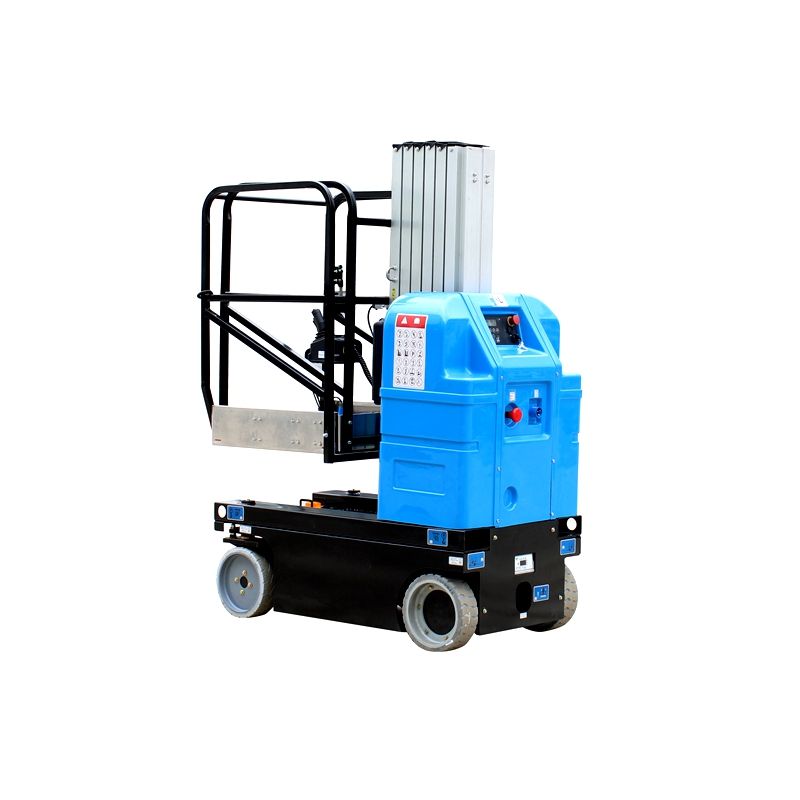

ATWP-6-C Self-Propelled Mast Aerial Work Platform: Agile 8m Reach for Tight Spaces

When your work demands 8m height and the ability to navigate narrow alleys, sharp corners, or crowded warehouses, most lifts hit a wall—literally. Bulky models get stuck in 1m-wide corridors; rigid lifts can’t turn in place; and non-self-propelled ones waste time being pushed. The ATWP-6-C solves this: a self-propelled mast lift with 8m maximum working height, 0 minimum inner turning radius, and precision controls that turn tight spaces into workable ones.

8m Reach, 0 Turning Radius: Maneuver Where Others Can’t

8 meters of height is impressive, but it’s the agility that makes this lift stand out. With a 0 minimum inner turning radius, it spins 360° in place—no need to back up or hunt for extra space. This is game-changing for:

Warehouse aisles (1.4m length + 0.82m width slide through 1m gaps between shelves).

Factory corners (turns effortlessly between 0.9m-wide machinery gaps).

Indoor construction sites (navigates around stacked materials without blocking pathways).

Even at full 8m height, it maintains this nimbleness: self-propelled with 1.1km/h lifting speed, so you can glide to the next spot mid-job without lowering the platform. On flat ground, it hits 4km/h in collapsed state —fast enough to move from one end of a warehouse to the other in 5 minutes.

0.78×0.70m Platform: Compact but Purposeful

Don’t let the 0.78×0.70m platform fool you—it’s engineered for efficiency, not excess. At 150kg capacity, it carries one worker + 30kg of tools (a 10kg drill, 8kg paint sprayer, and 12kg tool belt) with room to spare. The compact size is intentional: it fits through standard 0.9m doorways and squeeze into elevator shafts, while the 1.14m wheelbase keeps it stable on uneven floors.

Need to reach over obstacles? The platform’s low profile (paired with 6m maximum platform height) lets you tuck under overhead pipes or beams, then rise to 8m without collisions.

Self-Propelled Power: 2×12VDC Motors for All-Day Work

Why waste human resources pushing when the lift can drive itself? Dual 12VDC/0.4KW drive motors deliver steady power—climbs 25% slopes (like warehouse ramps) without straining, and runs quietly enough for indoor use. The 2×12V/100Ah batteries last 6 hours of mixed driving and lifting—enough to service 20 warehouse shelves, paint 15 factory walls, or install 10 8m-tall lights.

Recharging is hassle-free: the 24V/11A charger tops up batteries overnight, so it’s ready for 7am shifts. No more waiting for cords or generators—just plug in and go.

Precision Controls: Work Smoother, Faster

This lift doesn’t just move—it responds. Proportional walk /lifting controls let you adjust speed and height in tiny increments:

Inch forward at 0.5km/h to align with a 8m wall panel.

Raise the platform 10cm at a time to match ceiling fixture heights.

Glide sideways at 0.3km/h to paint a straight edge along a 6m beam.

For solo workers, this means no more overshooting marks or wasting time readjusting. It’s like having a “fine-tune” button for every move.

Safety Systems That Cover Every Risk

High agility doesn’t mean cutting corners on safety. The ATWP-6-C comes loaded with safeguards:

Emergency descent system: Drops 8m in 35 seconds if power fails, no manual cranking.

Pit protection: Sensors stop the lift if it detects a 10cm drop (prevents falls into floor gaps).

Explosion-proof oil lines: Reinforced hoses resist punctures, even in rough factory environments.

Full-height walking: Stable enough to move at 1.1km/h at 8m height, with no sudden jolts.

Where It Outperforms: Tight, High-Traffic Spaces

This lift thrives where others struggle:

Warehouses: Reaches 8m shelf tops, navigates between 1m-wide racks, self-drives to loading bays.

Factories: Maintains 8m machinery, turns in 0.9m gaps between equipment, runs quietly near assembly lines.

Construction: Fits through 0.9m job site doors, climbs 25% ramps with materials, spins in place in cluttered rooms.

Municipal work: Services 8m streetlights, navigates narrow sidewalks, parks compactly during repairs.

The ATWP-6-C redefines what an 8m lift can do. It’s not just about reaching height—it’s about reaching where the height is, even when space is scarce. With 0 turning radius, self-propelled power, and precision controls, it turns tight spots into your most productive work zones. Finally, a lift that moves as smart as you work.
