ATWY2-14 Dual-Column Outrigger Mobile Aluminum Platform: 14m Two-Person High-Efficiency Load-Bearing Solution

Dual-Column Reinforced Architecture: Industrial-Grade Design for 16m Working Height and Stable Support

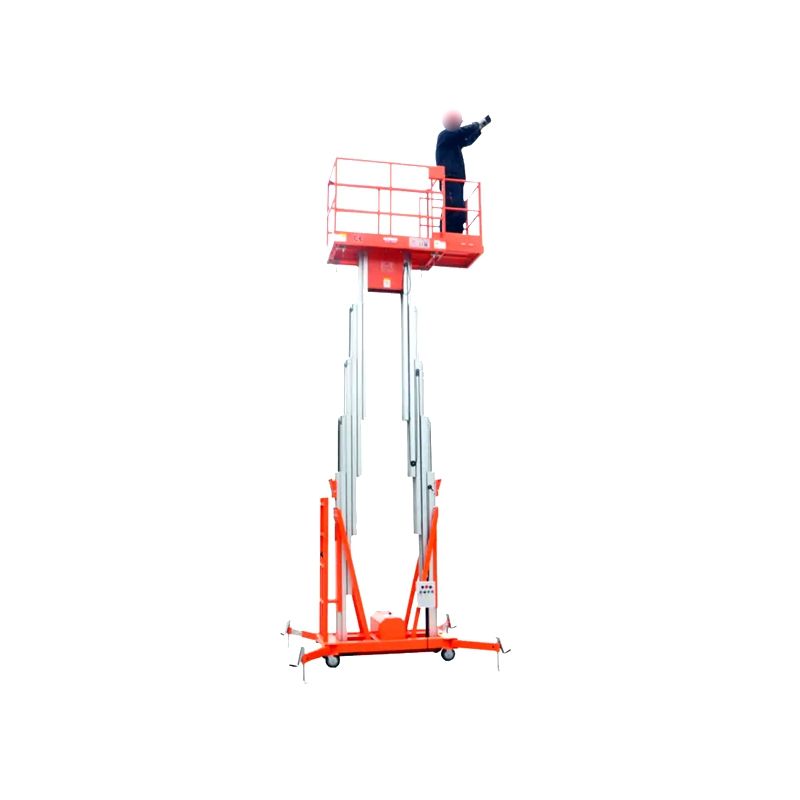

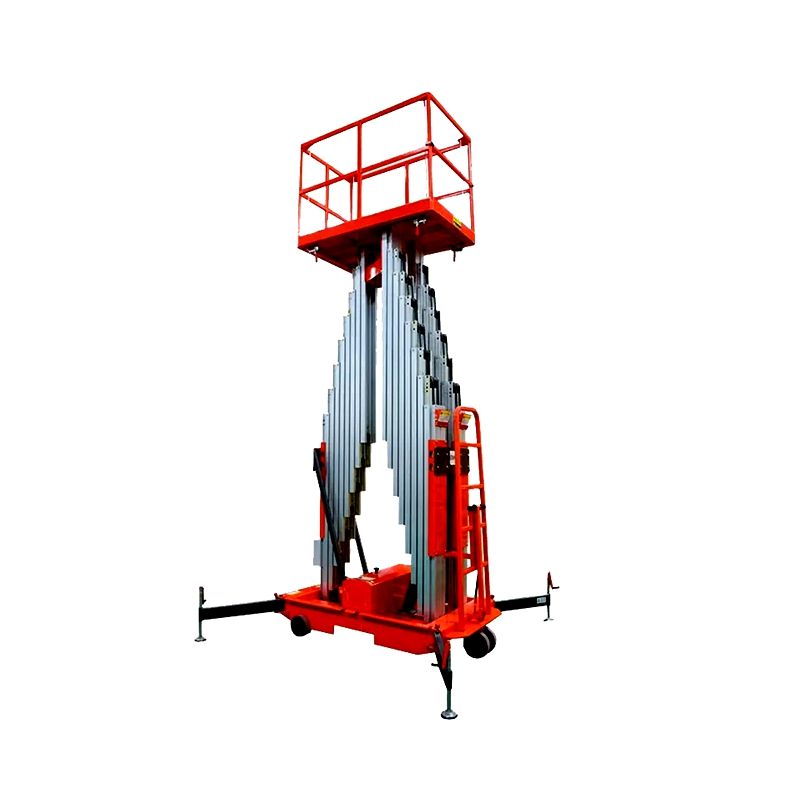

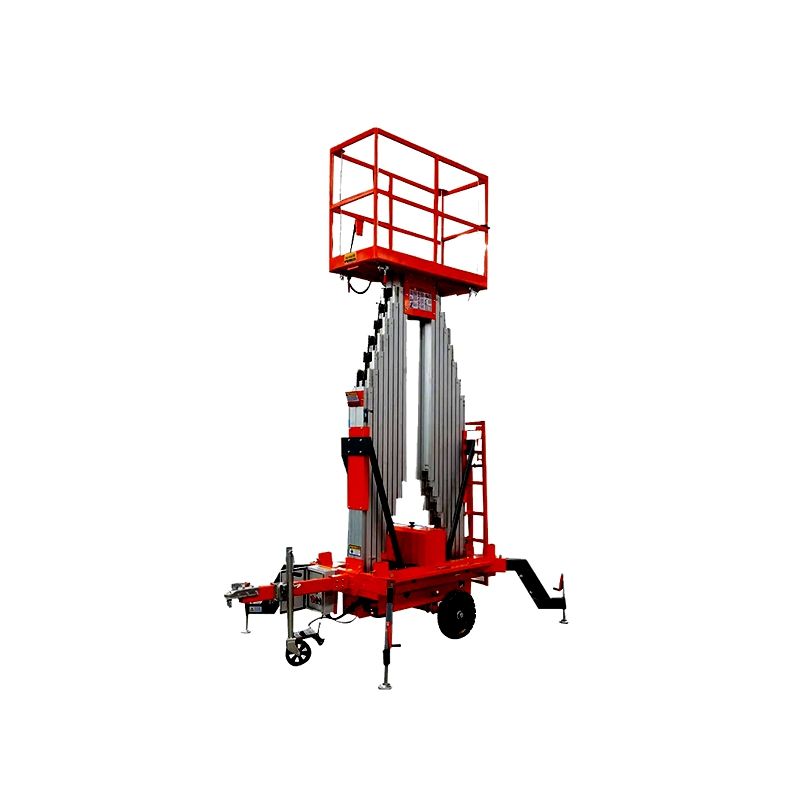

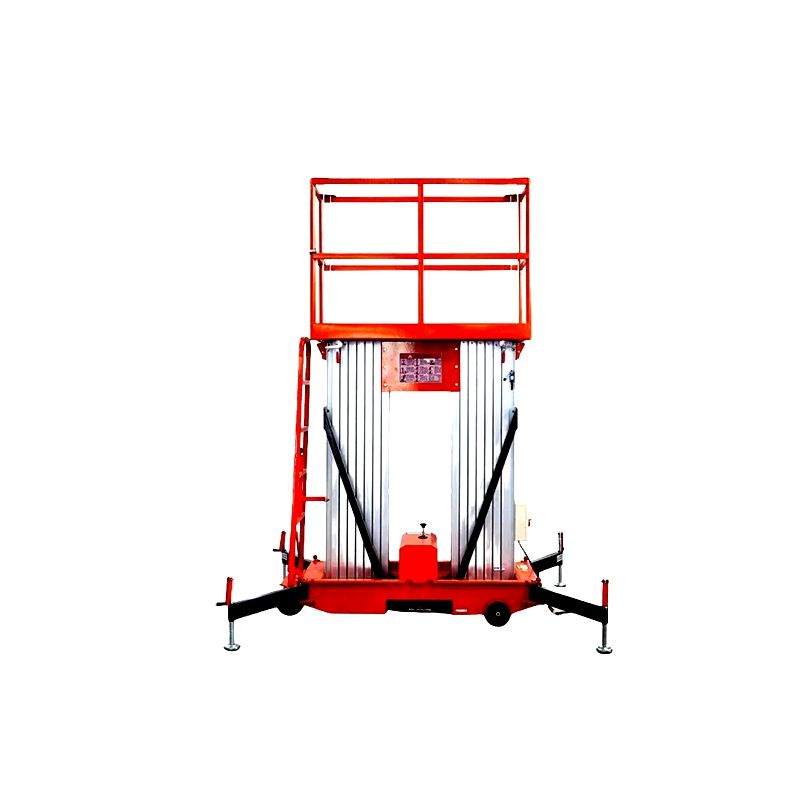

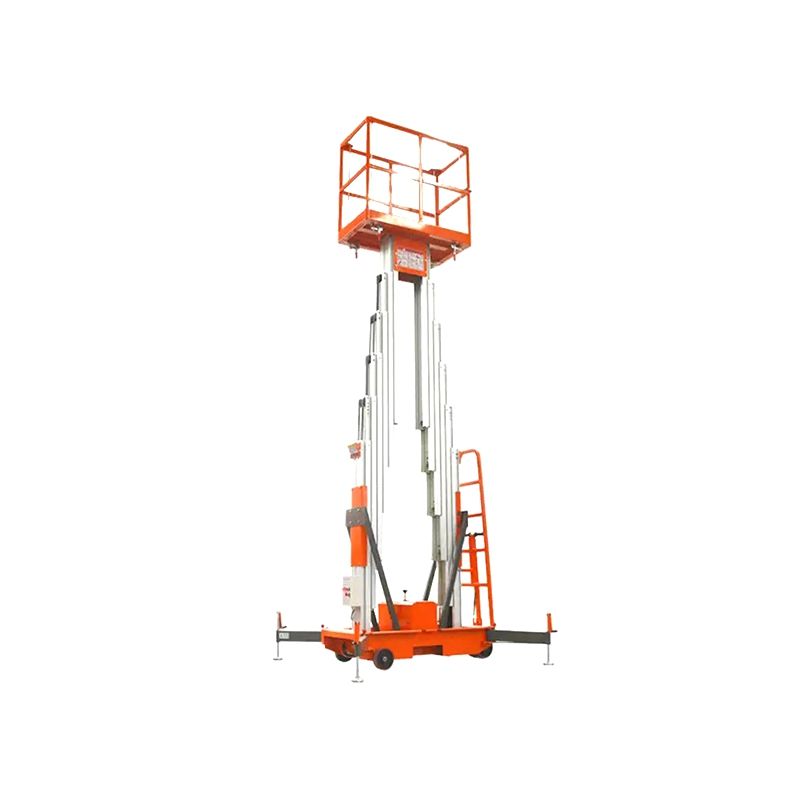

The ATWY2-14 features a dual-column outrigger structure constructed from high-strength aluminum alloy, achieving a 16m maximum working height and 14m platform height with a 200kg rated load for 2-person collaborative operations. The 1.8m×0.7m non-slip work platform, 15% wider than standard models, adapts to two-person tool placement and aerial collaboration—suitable for complex tasks like electromechanical equipment installation and curtain wall construction. With retracted dimensions of 1.88m×0.81m×2.68m, it passes through ≥0.9m-wide corridors. The deployed 2.9m×2.4m outrigger support forms a stable quadrilateral base, limiting platform sway to ≤18mm at full load, complying with GB/T 27548-2011 safety standards.

Full-Scene Dual-Power Hydraulic System: Covering Indoor/Outdoor Energy Demands

Industrial-Grade AC Power (Standard Configuration)

Supports 380V/220V/110V wide-voltage input, driven by a 1.5kW motor to operate the hydraulic pump station, achieving a smooth lifting speed of 0.6m/s. Ideal for 24-hour continuous operations in scenarios like 16m-high equipment maintenance in factory workshops and high-bay racking in logistics warehouses.

DC Power System (Optional)

Equipped with two 12V batteries, a 1.6kW DC motor drives the hydraulic system, enabling 4 hours of operation at full charge (10 lifting cycles/hour). The 12V/15A charger fully charges in 6 hours, adapting to off-grid environments like outdoor bridge inspection and mountain wind power facility maintenance—free from cable constraints for all-terrain mobile operations.

The dual-cylinder synchronous lifting technology intelligently adjusts lifting speed based on load, with noise controlled within 80dB to meet silent operation requirements in malls and exhibition halls.

Multi-Layer Safety Protection and Convenient Operation Design

Structural Safety

Outriggers use dual locking with mechanical pins and hydraulic locks. An audio-visual alarm triggers and disables lifting when the tilt angle exceeds 3°; a pressure sensor cuts power to prevent overload tipping if the load exceeds 220kg (110% of rating). Dual top limit switches and bottom buffer devices avoid boundary impacts.

Operational Convenience

Both ground and platform dual-control panels feature IP65 waterproof emergency stop buttons, supporting manual pump emergency descent during power outages. The platform handrail integrates 0.3–0.6m/s variable frequency speed control buttons with ±40mm positioning accuracy. Four universal load-bearing wheels combined with quick-release outriggers allow two persons to deploy/retract the equipment within 60 seconds—20% higher transition efficiency than similar products.
