ATWP2-8 Double-Mast Swing-Outrigger Mobile Aluminum Platform: 8m All-Round Solution for Heavy-Duty Aerial Work

Reinforced Double-Mast Swing-Outrigger Architecture: Industrial-Grade Breakthrough in 200kg Load Capacity and High-Altitude Stability

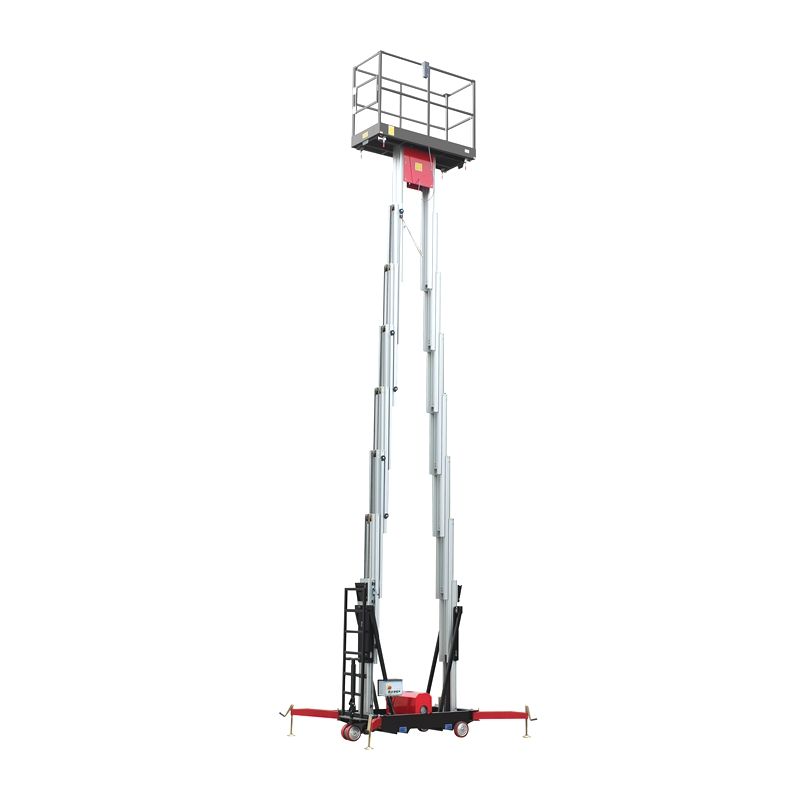

The ATWP2-8 features an aerospace-grade 6061-T6 aluminum alloy double-mast swing-outrigger structure. Its symmetrical dual-mast mechanical design boosts load capacity to 200kg, enabling single-person operation with heavy equipment like welders or hydraulic pumps. It achieves an 8m maximum platform height and 10m working height. The 1.5m×0.67m widened non-slip platform is equipped with foldable railings and three-layer tool racks, compatible with large tool combinations and material storage—ideal for complex multi-tool operations.

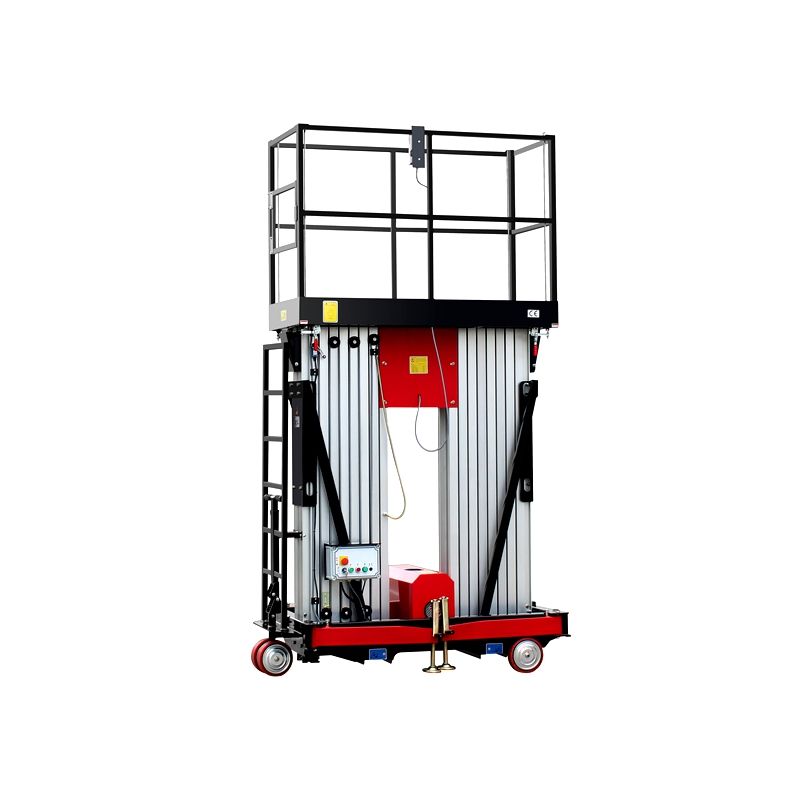

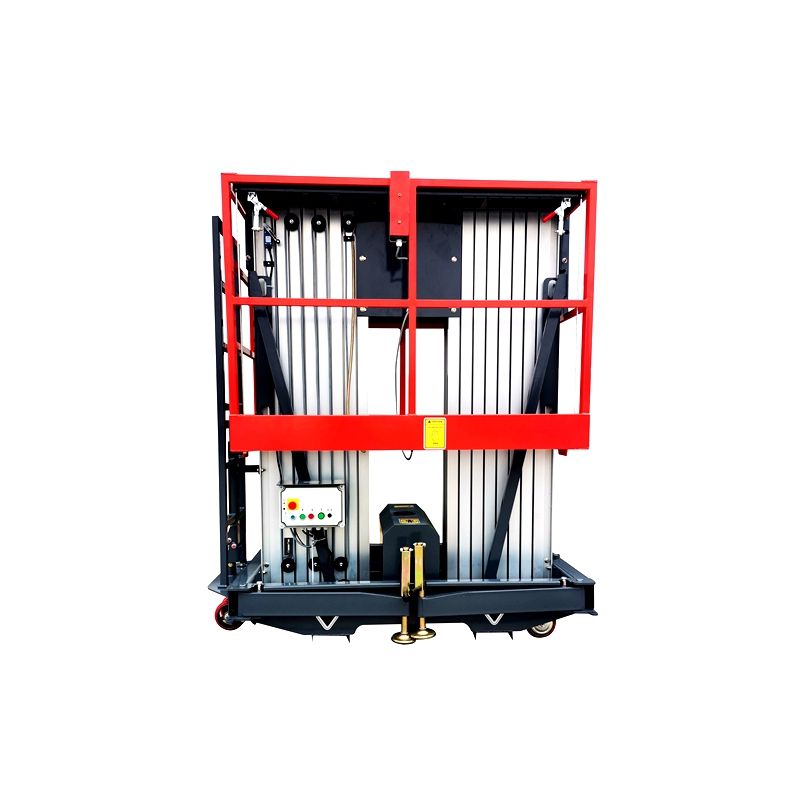

With retracted dimensions of 1.70m×0.76m×1.99m, it navigates through ≥0.8m-wide industrial corridors and standard freight elevators (car size ≥1.8m×1.2m). When deployed, the 2.4m×2.2m swing-outrigger support forms an isosceles trapezoidal stable base, limiting platform sway to ≤12mm at 8m height. Certified by both ISO 16330:2013 and GB/T 27548, it sets a performance benchmark for heavy-duty aerial work equipment.

Intelligent Dual-Power System: All-Condition Energy Adaptation and Efficiency Upgrade

Industrial-Grade AC Power (Standard Configuration)：

A 1.5kW permanent magnet synchronous motor supports 220V/110V wide-voltage input, integrated with vector control technology to achieve a lifting speed of 0.6m/s. When carrying 200kg, its efficiency is 40% higher than traditional models—perfect for high-frequency heavy-duty scenarios like factory crane rail inspection and warehouse shelf reinforcement, with 12 hours of continuous operation without performance loss. The motor includes built-in temperature sensors and overload protection modules to monitor operating status in real time, preventing overheating or overload risks.

Enhanced DC Power (Optional)：

Equipped with two 12V/100Ah maintenance-free lithium battery packs (available as an optional purchase) and a 2.2kW DC motor, it offers 7 hours of runtime (8 lifting cycles per hour) and supports fast charging (80% charge in 4 hours). Suitable for off-grid environments such as outdoor wind turbine tower bolt tightening and mountain power transmission tower maintenance, its cable-free design—paired with optional all-terrain tires—enables operation on complex terrains like slopes (gradient ≤7°) and muddy ground. The battery management system displays real-time power and intelligently balances cell performance.

Swing-Outrigger Rapid Deployment and Precise Control Experience

90-Second Tool-Free Ultra-Fast Deployment：

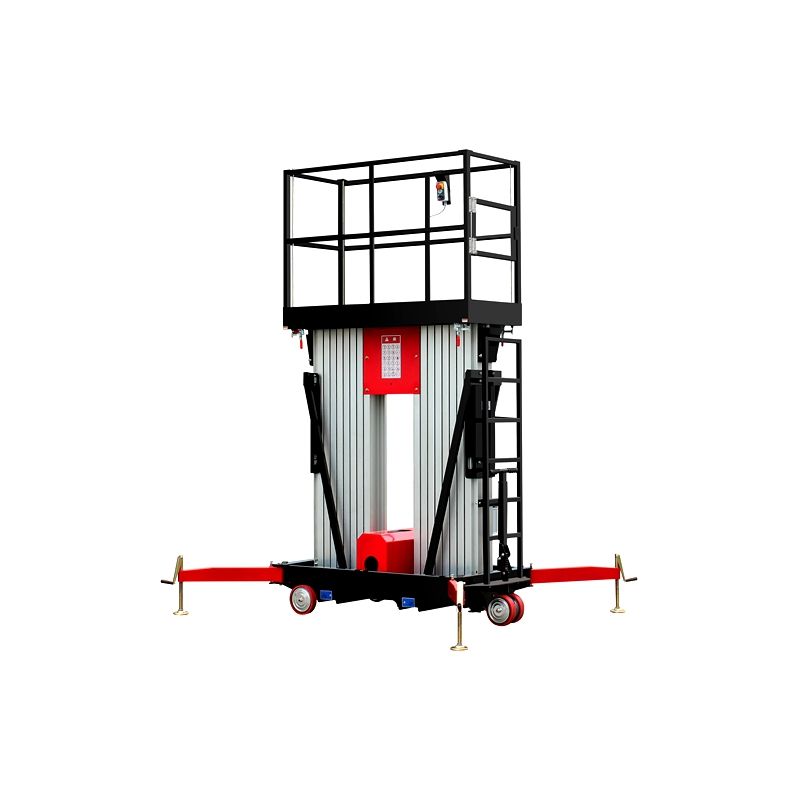

The patented hydraulic-assisted swing-outrigger mechanism allows single-person adjustment via a lever handle to lock support leg angles—no tools required. Deployment/retraction time is reduced to 90 seconds, with the support range expanded by 20% compared to traditional outrigger structures, while the retracted width remains just 0.76m, enabling access to dense storage areas with shelf spacing ≤0.8m. Four 12-inch heavy-duty universal wheels with electromagnetic brakes ensure a single-person pushing resistance of ≤35N on flat ground for the 680kg AC model, offering superior mobility compared to other heavy-duty equipment in its class.

Ergonomic Control System：

The platform handrail integrates a full-color touch panel, displaying real-time height, load, battery status, and tilt angle. It supports three-speed adjustment (0.3–0.6m/s) with ±25mm positioning accuracy, meeting millimetre-level operation needs such as pipe flange alignment and precise curtain wall glass installation. The foldable safety gate features both gravity sensing and mechanical double locks; lifting functions are automatically cut off when the gate is open. Combined with 1.2m-high non-slip railings and toe boards, it creates a 360° fall-prevention protective space.

Six-Layer Intelligent Safety Protection: Full-Lifecycle Assurance for Heavy-Duty Operations

Structural Safety：

The dual masts use thickened profiles, with stress distribution optimized via finite element analysis, achieving a wind resistance rating of Level 12 (wind speed ≤28m/s). Swing-outrigger support arms include dual mechanical locks and hydraulic dampers, triggering audio-visual alarms and disabling lifting when the tilt angle exceeds 3° to ensure a working surface level error of <0.8°.

Power Safety：

The hydraulic system comes standard with explosion-proof hoses and pressure sensors, locking cylinders within 0.15 seconds to prevent sudden platform drops if pipes burst. When the load exceeds 220kg (110% of the rated capacity), the motor controller automatically enters protection mode, gradually unloading and sounding a beep alarm—dual mechanisms to avoid tipping risks.

Operational Safety：

An anti-misoperation three-key interlock design (power button + confirm button + lifting button) requires a 2-second continuous press to start, eliminating accidental activation risks. Both ground and platform control panels feature IP67 waterproof emergency stop buttons, responding within 0.3 seconds to cut all power.

Emergency Safety：

Equipped with a manual hydraulic pump and mechanical descent valve, it allows single-person lowering to the ground within 30 seconds via handle operation during power outages or system failures, supporting emergency recovery across all height ranges for all unexpected conditions.

Transportation Safety：

Embedded forklift interfaces (180mm×100mm) at the bottom are compatible with international standard warehouse forklifts. Swing outriggers fully retract within the body contour during transport, paired with detachable protective pads to prevent component damage from collisions during long-distance shipping.

Environmental Safety：

The aluminum alloy surface undergoes fluorocarbon coating, achieving 1,500 hours of salt spray corrosion resistance to adapt to harsh environments like coastal humidity and northern dust. Motor noise is controlled within 72dB—10% lower than the industry average—meeting operation requirements in quiet venues such as hospitals and data centers.

All-Scenario Heavy-Duty Applications: Comprehensive Coverage from Industrial Maintenance to Special Engineering

Heavy Industry Equipment In-Depth Maintenance：With a 200kg load capacity supporting full welding equipment, its 8m platform height fits large factory crane beam inspection and high-altitude pipeline replacement in petrochemical facilities. The dual-mast structure improves stability by 35% under full load compared to single-mast models, significantly reducing operational errors caused by aerial work sway.

Commercial Facility Upgrades：The widened platform can carry a single person plus large materials (e.g., ceiling panels, advertising light box components), suitable for shopping mall atrium steel structure hoisting and hotel lobby dome decoration. Its narrow design accesses passenger elevators directly to work floors, eliminating the time and cost of scaffolding setup.

Outdoor Special Engineering：The DC model supports wind turbine blade repair and highway overpass bearing replacement. Its 2.4m×2.2m large support range adapts to ±5° sloped ground, with optimized outrigger pressure distribution reducing ground pressure to ≤0.3MPa on soft soil, preventing equipment sinking.

Municipal and Public Facility Operations：Platform dimensions are compatible with quick-install interfaces for streetlight maintenance baskets, supporting high-altitude cable fusion and traffic signal replacement. The IP55-rated motor enables 2 hours of continuous operation in moderate rain, expanding application boundaries.

Technical Advantages & Value Proposition

Positioned as a "Double-Mast Heavy-Duty Aerial Work Expert," the ATWP2-8 redefines performance limits for 200kg-class mobile aluminum platforms through dual-mast structural innovation, intelligent power system upgrades, and six-layer safety protection. It comes standard with a 1.5kW AC power system and basic safety features, with optional DC lithium battery packs and all-terrain tires. Tailored to search needs like "8m double-mast swing-outrigger aluminum platform" and "200kg high-altitude heavy-duty equipment," it offers customized solutions for heavy industry scenarios, complex terrains, and precision operations. With military-grade quality and smart technology, it makes heavy-duty aerial work more efficient and safer.
