ATWP1-9 Single-Column Swivel-Leg Mobile Aluminum Platform: 9m Flexible & Safe New Solution for Single-Person Aerial Operations

High-Strength Lightweight Single-Column Architecture: Dual Breakthroughs in Swivel-Leg Support & Narrow-Body Design

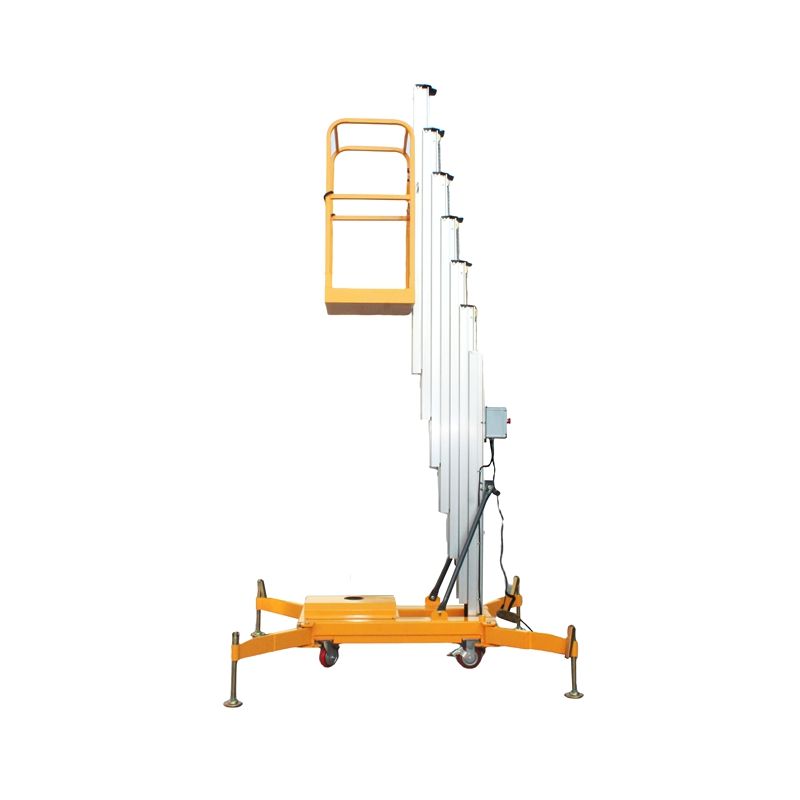

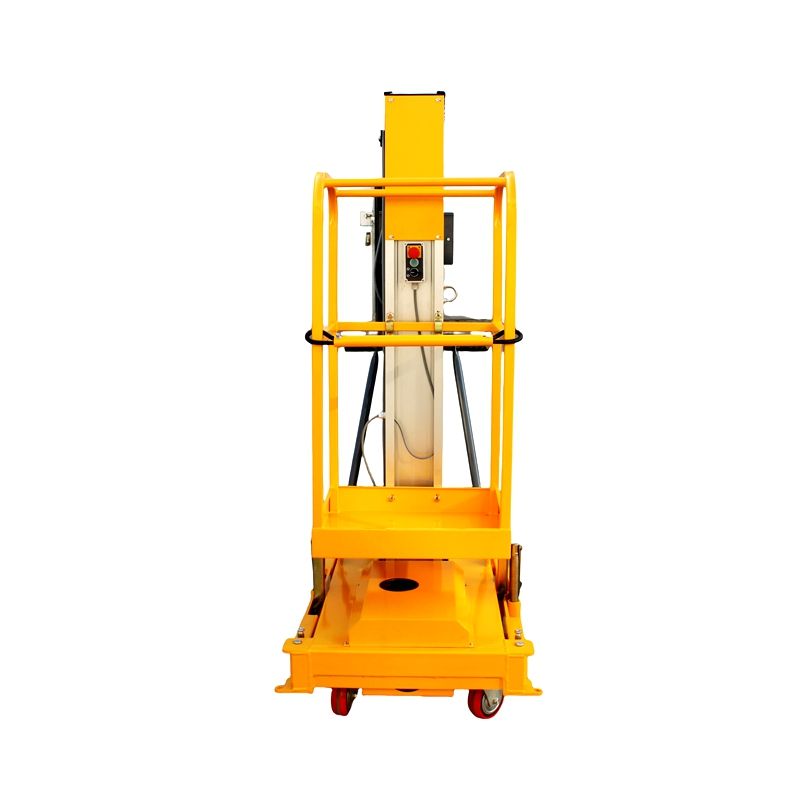

The ATWP1-9 features an aerospace-grade 6061-T6 aluminum alloy single-column swivel-leg structure, achieving lightweight design while ensuring high-strength load-bearing performance. With a maximum platform height of 9m and working height of 11m, its 150kg rated load is customized for single-person aerial operations. The 0.6m×0.55m non-slip work platform is equipped with a magnetic tool tray and foldable safety guardrails, supporting efficient work with small power tools.

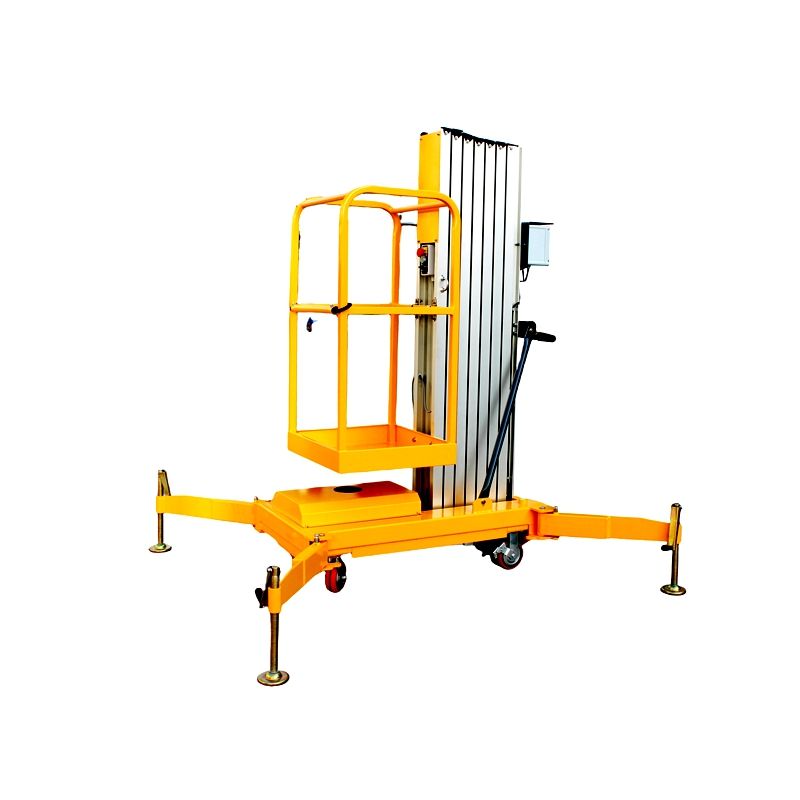

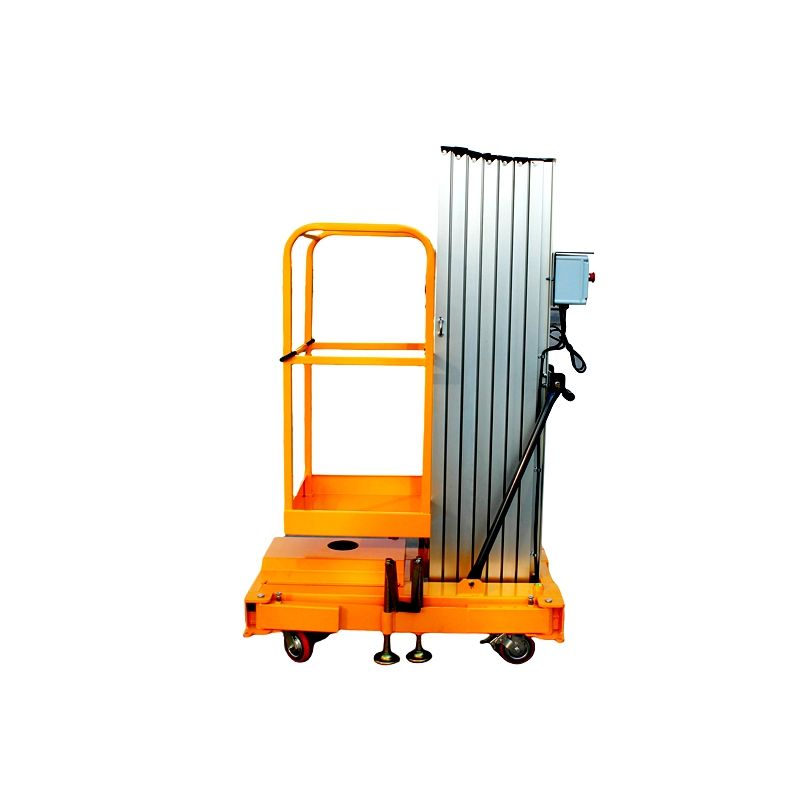

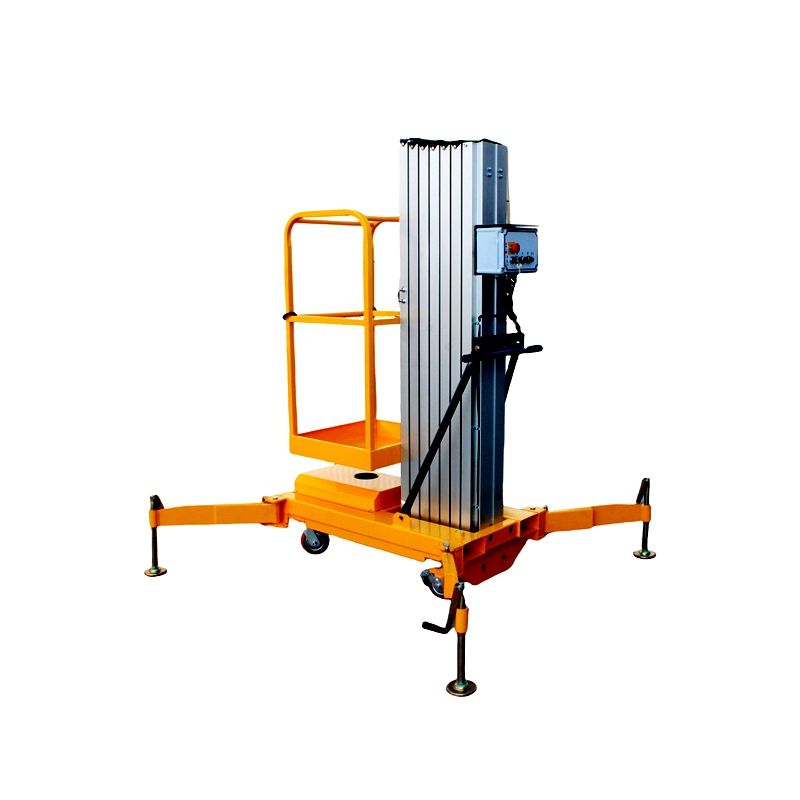

With retracted dimensions of 1.45m×0.85m×1.99m, it easily fits through standard residential elevators (car size ≥1.5m×1.2m) and indoor corridors ≥0.9m wide. When deployed, the 1.93m×1.77m swivel-leg support forms a stable diamond-shaped base, limiting platform sway to ≤15mm at 9m height. Certified by both CE and GB/T 27548-2011, it meets the demands of diverse aerial work scenarios.

Intelligent Dual-Power System: All-Environment Energy Adaptation Solution

Industrial-Grade AC Power (Standard Configuration)

A 0.75kW high-efficiency motor supports 220V/110V wide-voltage input, with a lifting speed of 0.4m/s. Designed for continuous-power scenarios such as shopping malls, factories, and office buildings, it enables 8 hours of uninterrupted operation—ideal for high-frequency tasks like aerial equipment maintenance, shelf inventory management, and lighting replacement. Equipped with a built-in overload protection module, it monitors motor temperature and load in real time to extend the lifespan of core components.

Enhanced DC Power (Optional)

Fitted with a 12V/80Ah maintenance-free lead-acid battery pack (available as an optional purchase), a 1.5kW DC motor provides 6 hours of runtime (10 lifting cycles per hour) on a full charge. The 12V/15A smart charger supports fast-charging mode (80% charge in 4 hours), making it suitable for off-grid scenarios such as outdoor billboard installation, highway streetlight maintenance, and equipment repairs in remote areas—free from cable constraints for all-terrain operation coverage.

Swivel-Leg Quick-Response Design: Enhanced Efficiency for Single-Person Operation

Second-Level Deployment Capability

The innovative lever-type swivel-leg adjustment mechanism allows single-person deployment or retraction without tools in just 60 seconds. While expanding the support range by 10% compared to traditional outrigger structures, it saves 20% of floor space—ideal for operations in narrow areas like stair corners and shelf gaps. Four 360° universal silent wheels with brake devices ensure a single-person pushing resistance of ≤20N, enabling easy short-distance relocation.

Precise Control Experience

The platform handrail integrates an ergonomic control handle, supporting stepless speed adjustment from 0.2-0.4m/s. Equipped with an LED digital display that shows real-time height, power, and tilt angle, it achieves ±30mm positioning accuracy—meeting the requirements of millimetre-level precision operations such as curtain wall gluing and circuit connection. The foldable safety gate uses a gravity self-locking design; lifting functions are automatically locked when the gate is open, eliminating safety hazards at the source.

Five-Layer Safety Protection System: Full-Process Operational Assurance

Structural Safety

Swivel-leg support arms are made of thickened aluminum alloy profiles, with flexural strength increased by 25%. Built-in dual stabilization devices (mechanical locking + hydraulic damping) trigger an audio-visual alarm and stop lifting when the tilt angle exceeds 3.5°, ensuring the working surface level error is <1°.

Operational Safety

The anti-misoperation dual-button design requires simultaneous pressing of the power and lifting buttons to execute actions, avoiding accidental triggering. Both ground and platform control panels are equipped with red emergency stop buttons (IP65 waterproof), cutting all power output within 0.3 seconds.

Hydraulic Safety

Hydraulic pipes are fitted with explosion-proof rupture valves, which automatically lock cylinders in case of sudden high-pressure leaks to prevent uncontrolled platform descent. An overload protection sensor cuts power when the load exceeds 165kg, providing dual protection against tipping risks.

Emergency Safety

In case of power failure or system malfunction, a manual emergency pump lowers the platform to the ground within 40 seconds, supporting powerless emergency descent across all working heights.

Transportation Safety

Standard forklift interfaces (150mm×80mm) are pre-installed at the bottom, compatible with various warehouse forklifts for quick handling—avoiding equipment damage from manual lifting.

Multi-Scenario Adaptability: Versatile Applications from Commercial to Professional Fields

Commercial Facility Maintenance: The 9m platform height is ideal for replacing chandeliers in shopping mall atriums and arranging goods on high supermarket shelves. Its narrow design fits elevators for direct access to working floors, improving post-closure maintenance efficiency in malls.

Residential Project Scenarios: Suitable for villa exterior wall painting, second-floor balcony guardrail installation, and ceiling decoration in high-ceilinged rooms. Single-person operation eliminates the high cost and low flexibility of renting large machinery.

Power & Communication Maintenance: Adaptable to aerial equipment inspection in community distribution rooms, 5G base station antenna debugging, and close-range maintenance of power transmission towers. The DC power version supports long-term outdoor operations, reducing frequent return trips for charging.

Advertising & Signage Industry: Enables installation of exterior wall advertisements on high-rise buildings, maintenance of rooftop luminous characters, and installation of glass curtain wall signs. Its precise positioning ensures safety and efficiency in complex environments.

Technical Advantages & Value Proposition

Positioned as a "9m high-efficiency single-person operation platform," the ATWP1-9 redefines the flexibility and safety of aerial work equipment through swivel-leg structural innovation, dual-power intelligent adaptation, and five-layer safety protection. It comes standard with an AC power system and basic safety devices, with DC battery packs and advanced protective accessories available as options. Tailored to search demands such as "9m single-column swivel-leg aluminum platform" and "150kg single-person aerial work equipment," it offers customized solutions for narrow spaces, off-grid environments, and precision operations. Empower your aerial work with technology—where safety and efficiency are always within reach.
