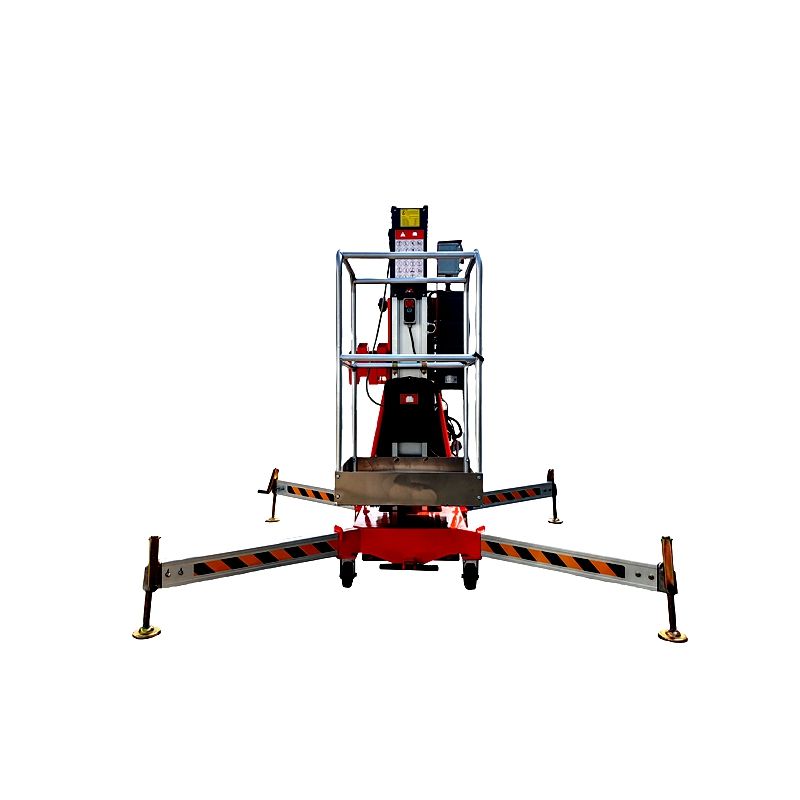

ATWY10-130-1-B Single-Mast Aluminum Alloy Lifting Platform: "Precision Lifting Expert" for 10m Mid-High Altitude Narrow-Space Operations

10m Height Breakthrough: "Reach Upgrade" for Mid-High Altitude Operations

As a 10m-class lifting platform with a single-mast design, the ATWY10-130-1-B features high-strength, high-quality aluminum alloy as its core. Within its compact dimensions of 1.42×0.78×1.97m, it achieves a dual breakthrough in "height and flexibility"—its maximum working height of 10m expands coverage by 25% compared to 8m-class platforms. It can reach 10m-high ventilation ducts in factories, 10m-high lighting trusses in stadiums, and even top-level cargo positions in 10m-high warehouses, filling the gap in 10m mid-high altitude operations that require "narrow-space + balanced light-heavy load" capabilities.

The 0.65×0.65m platform retains sufficient operational space, with 1.5cm-high anti-slip ridges added to its edges. Combined with 1.1m-high lifting guardrails and chain protection, the standing stability of a single operator carrying tools (such as a 10kg electric wrench + 5kg detector) at 10m height is improved by 30%. The bottom of the platform is pre-equipped with 4 tool hanging points to secure cable reels and parts boxes, preventing tools from falling at high altitudes—a critical feature for safe 10m operations.

Single-Mast "Strong Yet Light" Design: 10m Load-Bearing Wisdom at 420kg

The single-mast main column is made of 6061-T6 aluminum alloy (tensile strength ≥260MPa) and optimized through a "variable cross-section forming" process: the bottom load-bearing section has a wall thickness of 4.5mm (0.5mm thicker than 8m-class models), while the top extension section is reduced to 3mm. This ensures a deflection of ≤3mm at 10m height under a 130kg load, while keeping the overall weight at 420kg—20% lighter than dual-mast platforms of the same height. A single person can easily tow it using the push-pull handle, with a turning radius of only 1.6m, allowing flexible movement through 0.9m-wide workshop passages and warehouse shelf gaps.

This "single-mast + 10m + 130kg" combination frees 10m high-altitude operations from reliance on large equipment, making it especially suitable for scenarios where "height is reachable and space is navigable" (such as 10m-high ceiling maintenance in shopping malls and 10m-high cable tray maintenance in substations).

10m-Exclusive Safety System: Full-Process Protection from Anti-Sway to Emergency

Enhanced High-Altitude Stability: The level gauge sensitivity is optimized for 10m height (±0.3°). When tilting exceeds 2.5°, it immediately triggers sound and light alarms + lifting lock (0.2° earlier than 8m-class models). Deployed hidden outriggers have a support span of 1.8×1.5m, with ground pressure ≤0.25MPa, preventing indentation on epoxy floors or wooden floors and avoiding sway caused by slight ground settlement at 10m height.

Stable Lifting Control: The 1.1kW motor is adapted to the 10m-high hydraulic system, with a lifting speed of 0.3m/s (taking about 33 seconds to rise from the ground to 10m). Hydraulic impact during start and stop is ≤0.3MPa, preventing precision tools (such as laser line projectors) from shifting due to vibration—critical for "millimeter-level alignment" at 10m height (e.g., lamp installation, pipe docking).

Dual Emergency Insurance: The emergency descent valve is equipped with a "buffer damping" structure. In case of power failure, the descent speed can be controlled via a knob (0.2-0.3m/s), taking only 35 seconds to lower from 10m to the ground. Combined with a manual pump backup system (easier to operate with a single-mast design), manual operation is possible even in case of hydraulic failure, eliminating the risk of being stranded at 10m height.

Power and Mobility: Efficient Adaptation for 10m Operations

Wide-Range Power Compatibility: The 220V mains power supply supports optional 110V wide-range input, operating stably in factory environments with ±15% voltage fluctuations. After 8 hours of continuous lifting operations (once every 20 minutes), the motor temperature rise is ≤42℃, and the body surface temperature is ≤46℃, making it suitable for 10m-high pipeline maintenance in enclosed factories in summer.

Quiet and Wear-Resistant Mobility: Polyurethane tires adopt a "wide tread + curved shoulder" design (75mm tread width) with walking noise ≤58dB, avoiding disturbance when moving in quiet environments such as hospital outpatient buildings and school auditoriums. The tread is reinforced with wear-resistant carbon black, showing no obvious wear after 8,000 meters of cumulative walking on concrete or floor tiles, extending tire life during 10m operation transfers.

Configuration Expansion: Customized Upgrades for 10m Scenarios

Core Advantages of the Basic Version: A remote controller (10m anti-interference), polyurethane tires, and a full set of safety devices meet regular 10m high-altitude operations (such as warehouse restocking and venue maintenance), with the single-mast design adapting to narrow spaces.

Scenario-Based Upgrade Options:

Battery-powered lifting version (12V/100Ah): 7-hour battery life, suitable for outdoor 10m-high surveillance pole and street lamp installation, with a full charge in 5 hours to eliminate cable restrictions;

Explosion-proof motor version (Ex dⅡBT4): The entire machine undergoes anti-static treatment, suitable for 10m-high pipeline inspection in chemical workshops to prevent sparks from igniting volatile gases;

Auxiliary walking version: Equipped with electric drive wheels (2.2km/h speed), reducing manpower by 60% during transfers in 10m shelf areas of large logistics parks. The narrow single-mast body easily passes through shelf gaps.

10m Scenario Focus: The Irreplaceable Single-Mast Lifter

10m Maintenance in Industrial Factories: The 0.78m-wide single-mast design passes through 0.9m-wide workshop passages. At 10m height, it inspects ventilation ducts, with a 130kg load carrying duct sealant + detection instruments to complete docking and testing in one operation;

10m Maintenance in Cultural and Sports Venues: Under 10m-high lighting trusses in stadiums, remote control adjusts the platform height, avoiding scaffolding occupation of the venue. Polyurethane tires protect the venue's wooden floors;

10m Restocking in Logistics Warehouses: The single-mast design flexibly shuttle through shelf gaps, organizing top-level cargo positions at 10m height. The 130kg load can carry 5 standard cartons at a time, reducing up-and-down trips;

10m Municipal Installation: In the construction of 10m-high bus stop canopies, the battery-powered version eliminates reliance on mains electricity. The single-mast stability copes with mild outdoor winds, with platform sway ≤6mm.

Product Positioning: "Lifting Benchmark" for 10m Mid-High Altitude Narrow Spaces

The ATWY10-130-1-B single-mast aluminum alloy lifting platform redefines 10m mid-high altitude operation standards with its core advantages of "10m height + 130kg load + 0.78m narrow body". It not only solves the "unreachable" problem of 8m-class platforms but also offers more flexibility than 12m-class heavy-duty platforms, turning 10m-high narrow-space operations from "high-difficulty tasks" into "efficient standardized operations"—making it the first choice for 10m operations in industrial, cultural, sports, and logistics fields.
