ATWP1-10 Single-Column Swivel-Leg Mobile Aluminum Platform: 10m High-Efficiency & Safe Flagship Solution for Single-Person Aerial Operations

Enhanced Single-Column Swivel-Leg Architecture: Innovative Balance of Stability and Portability in High-Altitude Work

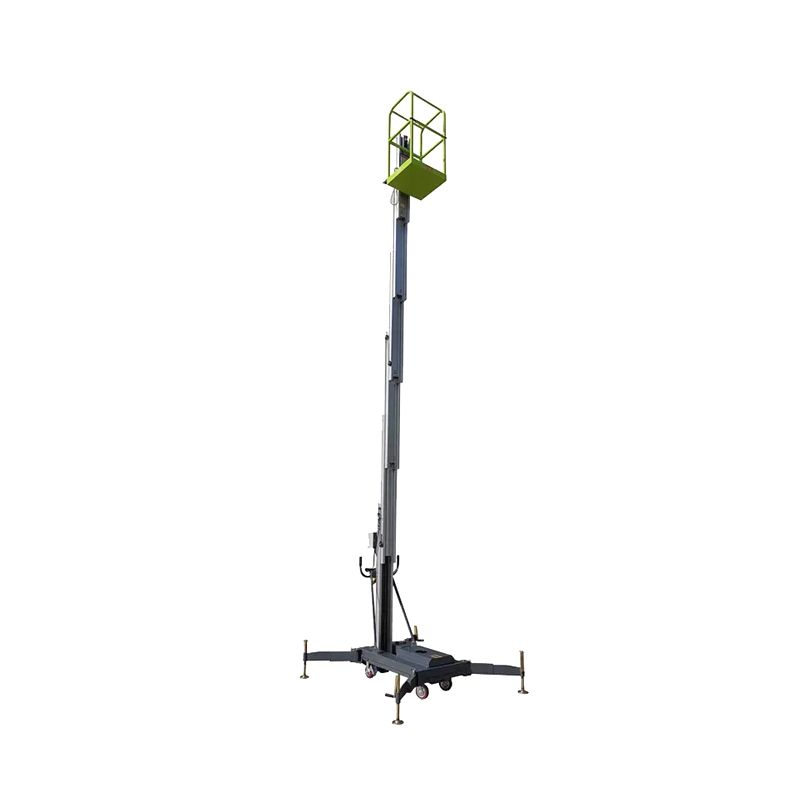

The ATWP1-10 features a military-grade 6061-T6 aluminum alloy single-column swivel-leg structure, with profile cross-sections optimized via finite element analysis. It achieves a 10m maximum platform height and 12m working height under a 130kg rated load, specifically designed for high-precision aerial tasks. The 0.6m×0.55m non-slip platform is equipped with a foldable tool bar and magnetic parts box, supporting efficient work with precision instruments or small power tools by a single operator.

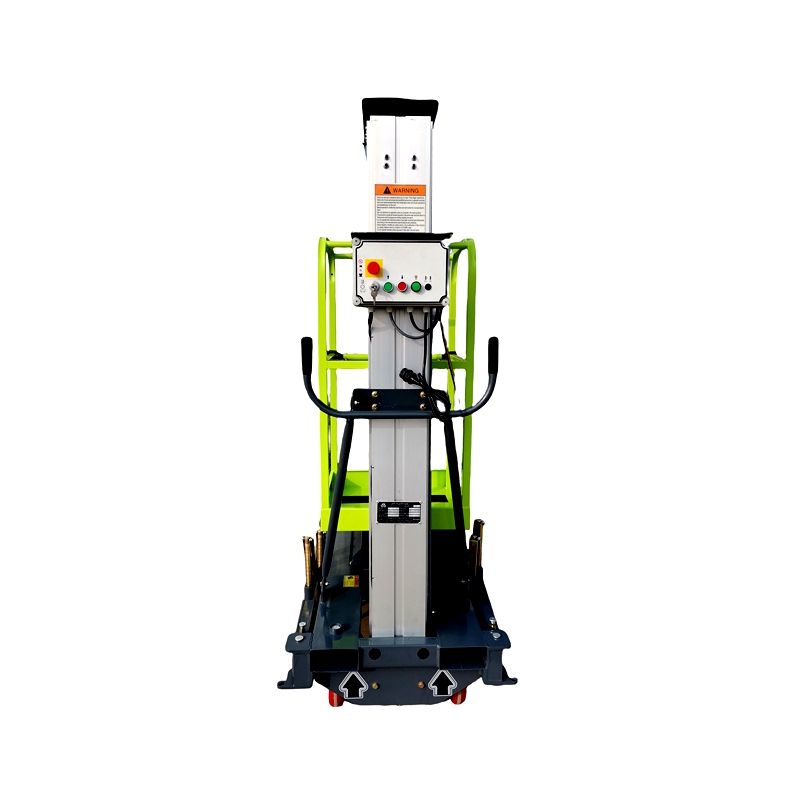

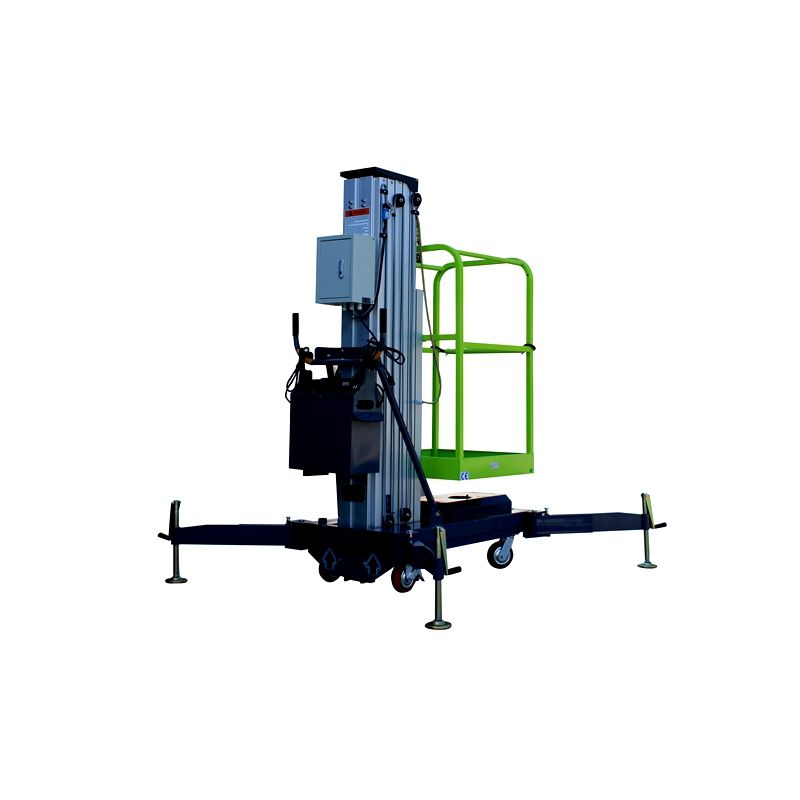

With retracted dimensions of 1.45m×0.85m×1.99m, it easily navigates 90cm-wide indoor corridors and standard elevators (car size ≥1.5m×1.2m). When deployed, the 1.93m×1.77m swivel-leg support forms a stable golden triangular base, limiting platform sway to ≤12mm at 10m height. Certified by both ISO 16330:2013 and GB/T 27548, it sets a new safety benchmark for aerial work equipment.

Upgraded Power System: 1.1kW High Performance & Intelligent Energy Management

Industrial-Grade AC Power (Standard Configuration)

A new 1.1kW high-efficiency motor supports 220V/110V wide-voltage input, with lifting speed increased to 0.5m/s—25% more efficient than previous models—ideal for high-frequency aerial work scenarios. Equipped with an intelligent temperature control module, it maintains motor temperature rise ≤60℃ during 8 hours of continuous operation. Combined with an overload protection sensor, it monitors load status in real time to eliminate risks of overheating or overloading in the power system.

Enhanced DC Power (Optional)

Fitted with a 12V/80Ah maintenance-free lithium battery pack (available as an optional purchase), a 1.5kW DC motor extends runtime to 7 hours (8 lifting cycles per hour). It supports fast-charging technology (80% charge in 3 hours), making it suitable for harsh environments such as wind turbine tower maintenance and mountain communication base station repairs. Cable-free design enables all-terrain operation coverage, while the Battery Management System (BMS) displays real-time power and prevents overcharging/over-discharging.

Swivel-Leg Rapid Deployment System: Further Breakthrough in Single-Person Operation Efficiency

60-Second Ultra-Fast Deployment

The patented lever-linked swivel-leg mechanism allows single-person adjustment of support leg angles via a rotating handle—no tools required. Deployment/retraction time is reduced to 60 seconds, 40% more efficient than traditional outrigger structures. Optimized to a 1.93m×1.77m support range, it occupies only 1.2㎡ in narrow spaces (e.g., shelf aisles, stairwells), improving space utilization by 30%.

Precise Control Experience

The platform handrail integrates an OLED touch panel, displaying 12 real-time parameters including height, power, and tilt angle. It supports 5-speed adjustment (0.1–0.5m/s) with ±20mm positioning accuracy, meeting millimetre-level precision needs for tasks like curtain wall gluing and circuit welding. The foldable safety gate features a gravity-sensing lock; lifting functions are automatically disabled when the gate is open. Combined with 1.1m-high non-slip guardrails, it creates a 360° all-around protective space.

Six-Layer Intelligent Safety Protection: Full-Dimensional Operational Assurance System

Structural Safety

Swivel-leg support arms use thickened aerospace-grade aluminum, with fatigue strength increased by 40%. Built-in high-precision tilt sensors cut power and sound an alarm when the tilt angle exceeds 3°. Hydraulic damping buffers effectively absorb operational vibration energy.

Power Safety

The hydraulic system comes standard with dual-stage filters and explosion-proof rupture valves, locking cylinders within 0.1 seconds to prevent sudden platform drops if pipes burst. When load exceeds 143kg (110% of rated capacity), pressure sensors link to the motor controller for gradual unloading, avoiding overload tipping.

Operational Safety

An anti-misoperation three-key interlock design (power button + confirm button + function button) eliminates accidental startup risks. Both ground and platform control panels feature IP67 waterproof emergency stop buttons, responding within 0.2 seconds to cut all power.

Emergency Safety

Equipped with a manual hydraulic pump and mechanical descent valve, it allows single-person lowering to the ground within 30 seconds during power outages or system failures, supporting emergency descent across all heights.

Transportation Safety

Embedded forklift interfaces (150mm×80mm) at the bottom are compatible with international standard warehouse forklifts. Combined with four 8-inch silent universal wheels (with electromagnetic brakes), single-person pushing resistance is ≤15N, enabling stable and convenient relocation.

Environmental Safety

The aluminum surface undergoes ceramic treatment, achieving 1,000 hours of salt spray corrosion resistance to adapt to coastal humidity, northern dust, and other harsh conditions. Motor noise is controlled within 68dB—12% lower than the industry average—suitable for silent venues like hospitals and libraries.

All-Scenario Adaptability: Versatile Applications from Ultra-High Buildings to Precision Maintenance

Ultra-High-Altitude Commercial Operation & Maintenance: The 10m platform height fits high-rise building curtain wall glass replacement and luxury hotel dome lighting maintenance. Its narrow design accesses passenger elevators directly to work floors, significantly reducing large machinery rental costs.

Industrial Equipment Maintenance: The 12m working height meets needs for factory crane rail inspection and high-bay warehouse shelf maintenance. The 1.1kW powerful motor easily handles loaded lifting, improving efficiency in heavy-industry scenarios.

Power & Communication Engineering: The DC version supports high-altitude busbar maintenance in substations and 5G base station antenna debugging, operating for 7 hours off-grid to reduce reliance on generators.

Precision Installation Scenarios: ±20mm positioning accuracy suits museum exhibit case installation and laboratory overhead pipe alignment. Magnetic tool trays prevent part drops, ensuring safety in high-value work environments.

Technical Advantages & Value Proposition

Positioned as a "10m high-altitude single-person operation expert," the ATWP1-10 redefines performance standards for aerial work equipment through enhanced power systems, upgraded swivel-leg structures, and six-layer intelligent protection. It comes standard with a 1.1kW AC power system and basic safety features, with optional DC lithium battery packs and OLED touch panels. Tailored to search needs like "10m single-column swivel-leg aluminum platform" and "130kg aerial work equipment," it offers customized solutions for ultra-high working heights, narrow spaces, and precision operations. With military-grade quality and smart technology, it makes high-altitude work safer and more efficient.
