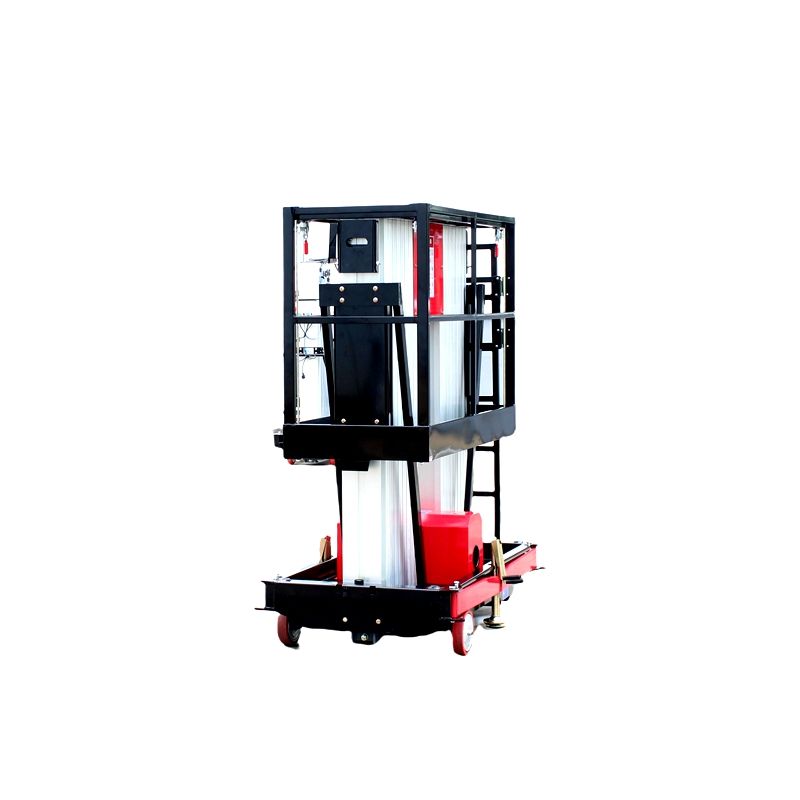

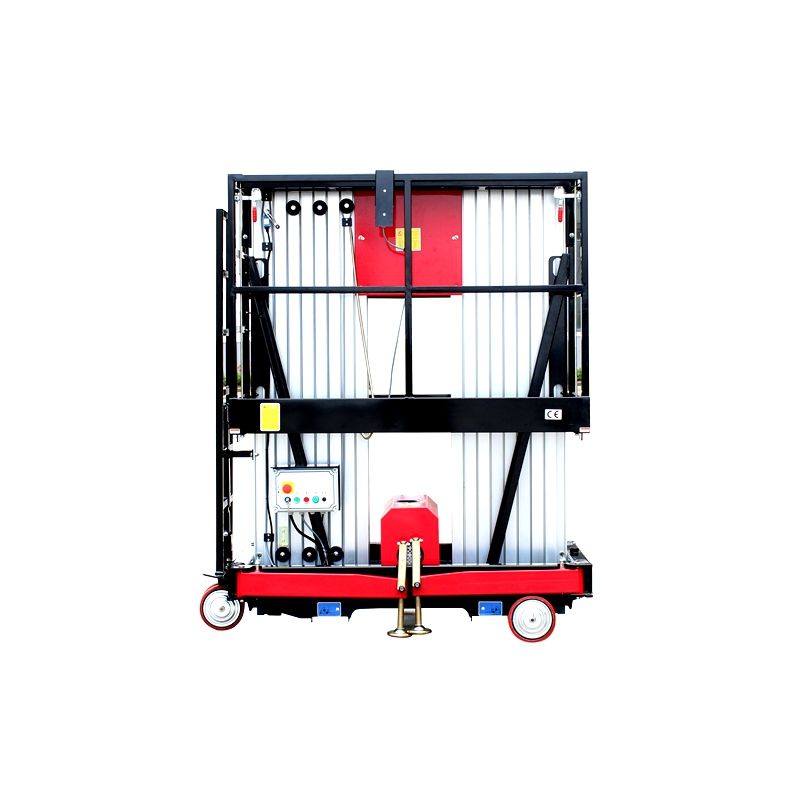

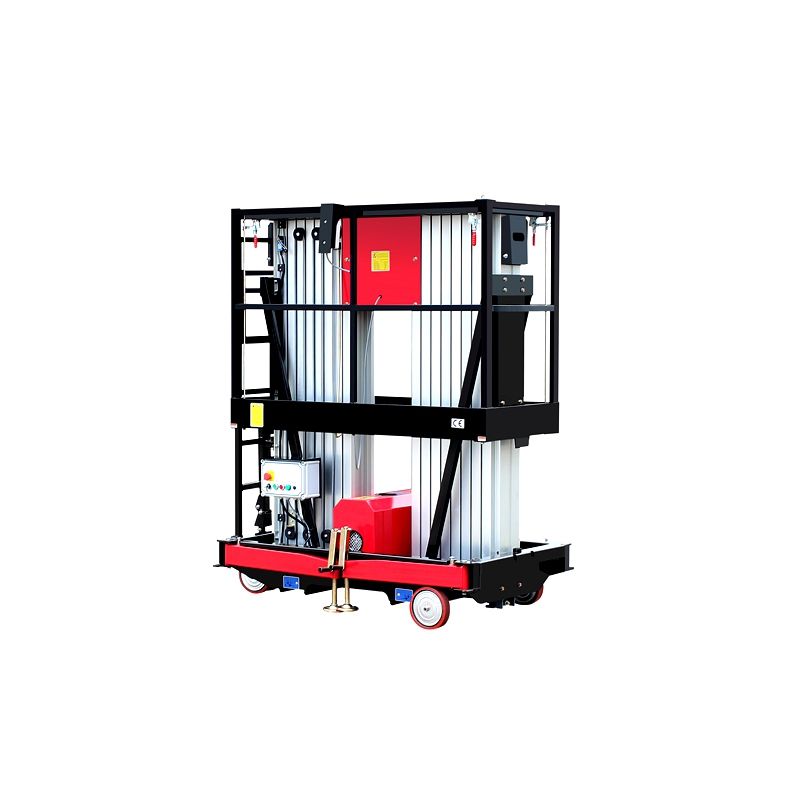

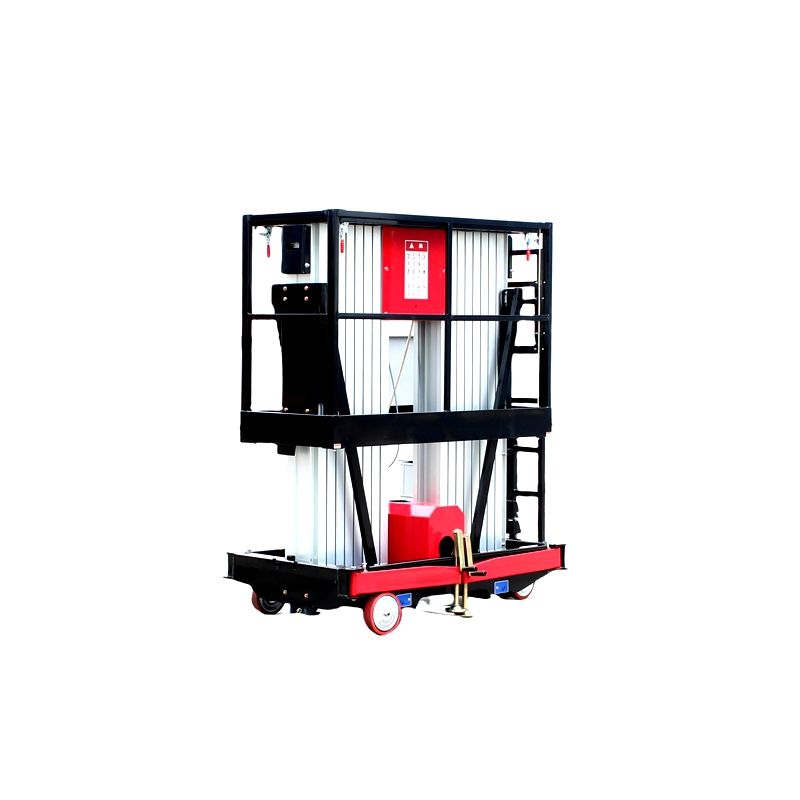

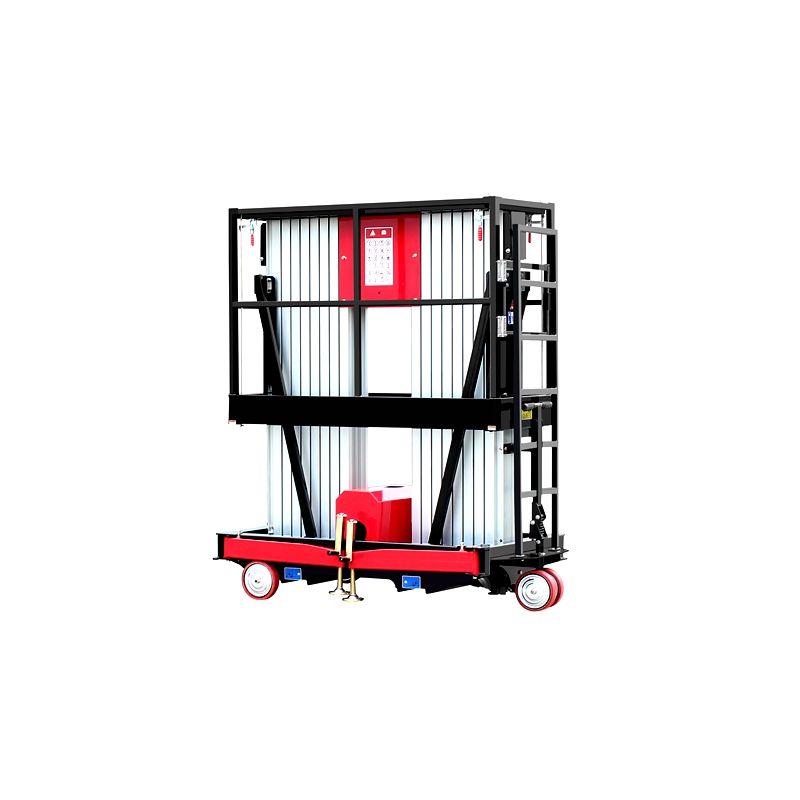

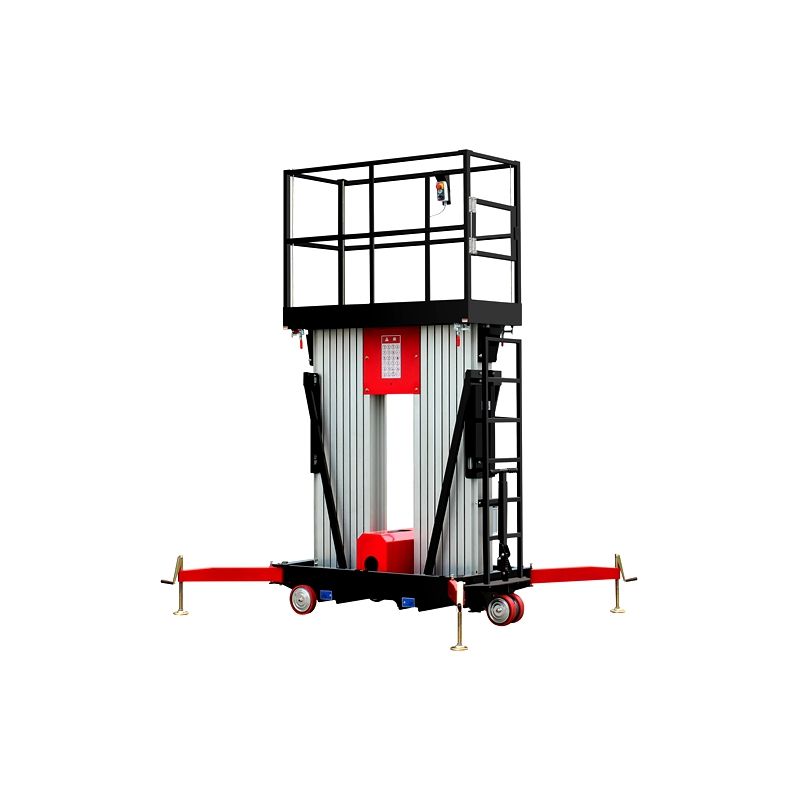

ATWP2-6 Double-Mast Swing-Outrigger Mobile Aluminum Platform: 6m High-Efficiency & Stable Solution for Heavy-Duty Aerial Work

Reinforced Double-Mast Swing-Outrigger Architecture: Dual Breakthrough in 200kg Load Capacity and High-Altitude Stability

The ATWP2-6 features a high-strength 6061-T6 aluminum alloy double-mast swing-outrigger structure. The innovative dual-mast design boosts load capacity to 200kg, supporting single-person operation with large tools or materials, achieving a 6m maximum platform height and 8m working height. The 1.5m×0.67m widened non-slip platform is equipped with foldable guardrails and dual-side tool hangers, adapting to complex tool combinations and material-carrying needs.

With retracted dimensions of 1.70m×0.76m×1.99m, it navigates through ≥0.8m-wide indoor corridors and standard construction elevators (car size ≥1.8m×1.2m). When deployed, the 2.4m×2.2m swing-outrigger support forms a trapezoidal stable base, limiting platform sway to ≤15mm at 6m height. Certified by both CE and GB/T 27548-2011, it sets a new benchmark for heavy-duty aerial work equipment.

Upgraded Power System: 1.5kW High Performance & All-Scenario Energy Adaptation

Industrial-Grade AC Power (Standard Configuration)

A 1.5kW permanent magnet synchronous motor supports 220V/110V wide-voltage input, with a lifting speed of 0.6m/s—30% more efficient than traditional asynchronous motors. Ideal for high-frequency heavy-duty tasks like factory workshop equipment maintenance and mall atrium chandelier replacement, it operates continuously for 10 hours without performance degradation. The built-in vector control module optimizes motor torque in real time, ensuring smooth and efficient load-bearing lifting/lowering.

Enhanced DC Power (Optional)

Fitted with two 12V/100Ah maintenance-free lead-acid battery packs, a 2.2kW DC motor extends runtime to 6 hours (10 lifting cycles per hour) and supports charge-while-use mode. The 12V/15A smart charger completes a full charge in 8 hours, making it suitable for off-grid scenarios such as wind turbine tower bolt tightening and highway overpass maintenance. The cable-free design enables all-terrain operation, while the battery management system monitors power and temperature in real time to prevent overcharging.

Swing-Outrigger Rapid Deployment System: Space Efficiency Revolution for Heavy-Duty Scenarios

90-Second Ultra-Fast Deployment

The patented swing-outrigger linkage mechanism, adjusted via a hydraulic-assisted handle, allows single-person angle locking of support legs without tools, reducing deployment/retraction time to 90 seconds. While expanding the support range by 15% compared to traditional outrigger structures, its retracted width of only 0.76m enables access to warehouse interiors with shelf spacing ≤0.8m, improving space utilization by 40%. Four 10-inch wear-resistant universal wheels with electromagnetic brakes ensure single-person pushing resistance ≤30N on flat ground, offering superior mobility compared to same-load-class equipment.

Precise Control Experience

The platform handrail integrates a color LCD display, showing real-time height, load, battery power, and tilt angle. It supports three-speed adjustment (0.3–0.6m/s) with ±30mm positioning accuracy, meeting millimetre-level alignment needs for tasks like pipeline flange connection and curtain wall panel installation. The foldable safety gate features dual locking devices; lifting functions are automatically cut off when the gate is open. Combined with 1.2m-high non-slip guardrails, it creates a full-protection operational space.

Five-Dimensional Safety Protection System: Full-Process Assurance for Heavy-Duty Operations

Structural Safety

The dual-mast symmetrical design withstands wind loads up to 10 级 (wind speed ≤24m/s). Swing-outrigger support arms incorporate dual mechanical locks + hydraulic balance valves, triggering audio-visual alarms and prohibiting lifting when the tilt angle exceeds 3.5°, ensuring working surface level error <1°.

Power Safety

The hydraulic system includes high-pressure explosion-proof hoses and pressure sensors, locking cylinders within 0.2 seconds to prevent sudden platform drops in case of pipe bursts. When load exceeds 220kg (110% of rated capacity), the motor controller automatically limits current and sounds an alarm, providing dual protection against overload tipping.

Operational Safety

An anti-misoperation dual-button design (power button + mode button) requires a 3-second continuous press to start, eliminating accidental activation risks. Both ground and platform control panels feature IP65 waterproof emergency stop buttons, responding within 0.5 seconds to cut all power.

Emergency Safety

Equipped with a manual pump emergency descent device, it allows single-person lowering to the ground within 40 seconds during power outages or system failures, supporting powerless emergency recovery across all heights.

Transportation Safety

International-standard forklift interfaces (180mm×100mm) at the bottom are compatible with various warehouse forklifts. Swing outriggers fully retract within the body contour during transport, avoiding protruding part damage—ideal for long-distance shipping and frequent relocations.

All-Scenario Heavy-Duty Applications: Versatile Adaptation from Industrial Maintenance to Outdoor Projects

Heavy-Industry Equipment Maintenance: The 200kg load capacity supports carrying heavy equipment like welding machines and hydraulic tools. A 6m platform height fits factory crane rail lubrication and high-bay warehouse shelf reinforcement, with dual-mast stability improving by 25% under load to reduce aerial work sway risks.

Commercial Facility Upgrades: The widened platform allows two-person collaborative work (with strict load control), suitable for mall ceiling steel structure installation and large billboard skeleton welding. Its narrow design accesses passenger elevators directly to work floors, cutting large machinery rental costs.

Outdoor Engineering Tasks: The DC version supports Field base station antenna lifting and highway soundwall maintenance. A 2.4m×2.2m large support range adapts to uneven ground, maintaining stability on slopes (gradient ≤5°) or soft foundations.

Municipal Aerial Work: Platform dimensions are compatible with streetlight maintenance basket modifications, supporting aerial cable Connection and traffic signal light replacement. The IP54-rated motor enables short-term rainy operations, expanding application scenarios.

Technical Advantages & Value Proposition

Positioned as a "Double-Mast Heavy-Duty Aerial Work Expert," the ATWP2-6 redefines performance boundaries for 200kg-class mobile aluminum platforms through dual-mast structural innovation, power system upgrades, and five-dimensional safety protection. It comes standard with a 1.5kW AC power system and basic safety features, with optional DC battery packs and LCD control panels. Tailored to search needs like "6m double-mast swing-outrigger aluminum platform" and "200kg aerial work equipment," it offers customized solutions for heavy-load scenarios, complex terrains, and collaborative operations. With dual-mast stability and high-efficiency power, it makes heavy-duty aerial work safer and more convenient.
