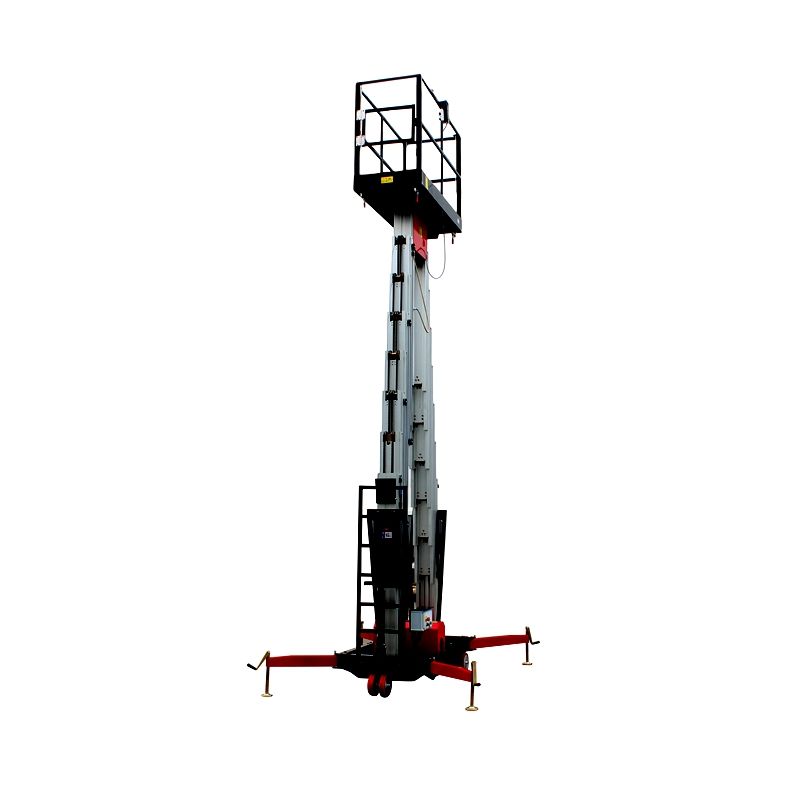

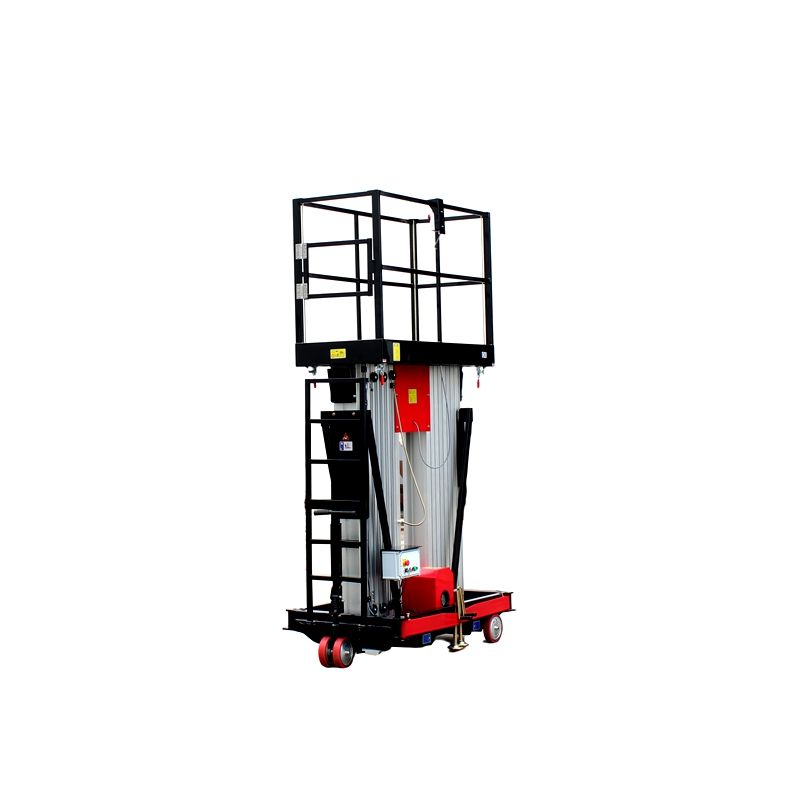

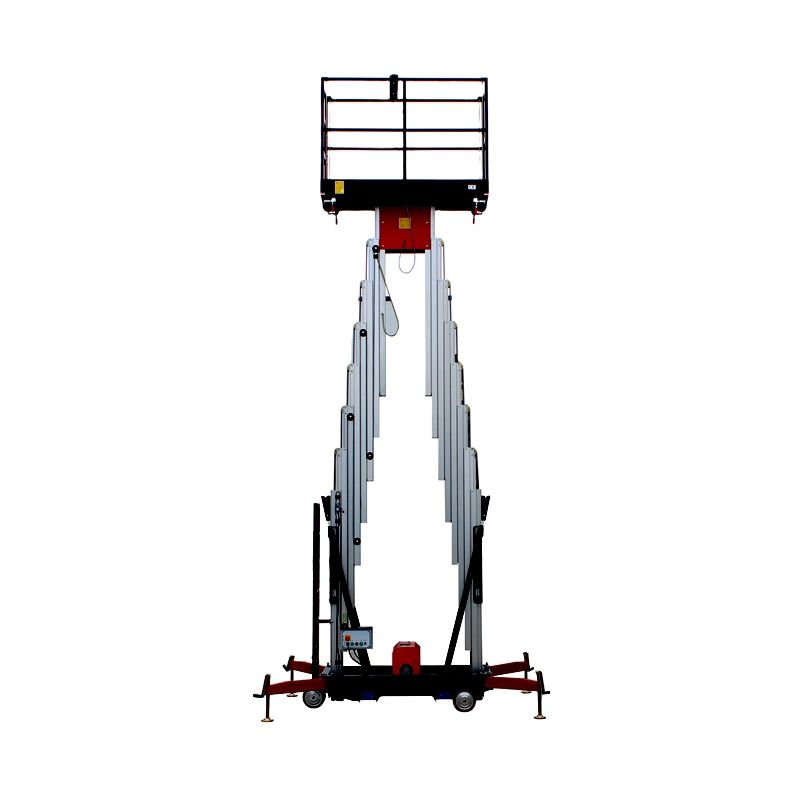

ATWP2-9 Double-Mast Swing-Outrigger Mobile Aluminum Platform: 9m Heavy-Duty Aerial Workhorse with Enhanced Safety

Double-Mast High-Strength Architecture: 200kg Load & 11m Reach

Constructed from aerospace-grade 6061-T6 aluminum alloy, the ATWP2-9 features a dual-mast design engineered for heavy loads, supporting 200kg to enable single-person operations with large tools or materials. It achieves a maximum platform height of 9m and a working height of 11m, making it ideal for high-reach tasks such as factory crane maintenance or warehouse shelf installation.

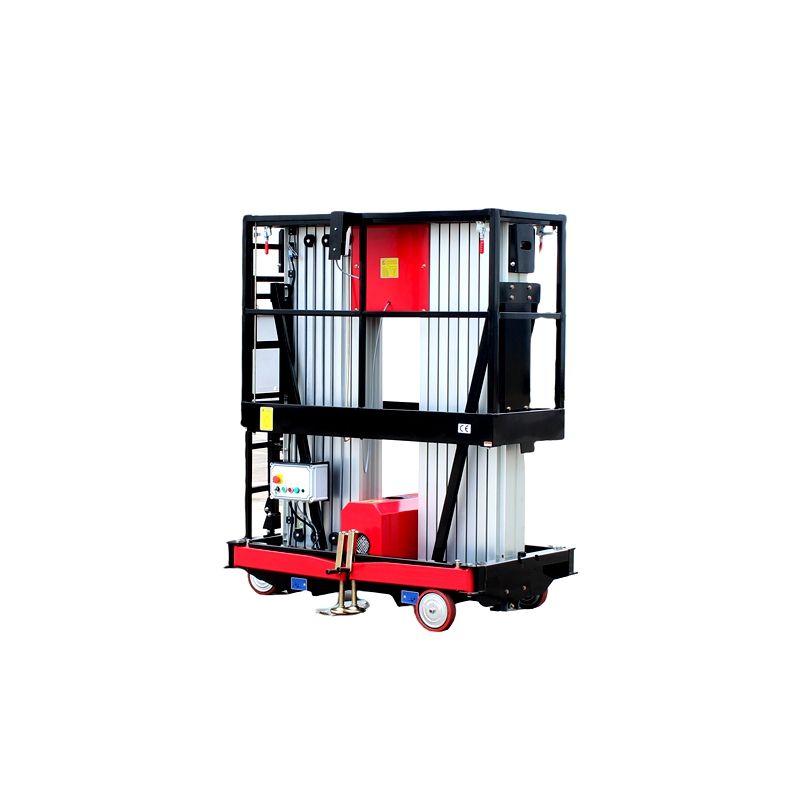

With compact folded dimensions of 1.70m×0.76m×1.99m, it can navigate narrow corridors (≥0.8m wide) and standard elevators. When deployed, its 2.4m×2.2m swing-outriggers form a stable trapezoidal base, limiting platform sway to ≤15mm at 9m height—certified by CE and ISO 16330 for industrial safety.

Dual-Power Systems: All-Scenario Performance

Standard AC Power:

Equipped with a 1.5kW high-efficiency motor compatible with 220V/110V input, it lifts at 0.6m/s—perfect for non-stop industrial use (e.g., factory equipment repairs, mall atrium lighting upgrades). Built-in thermal protection ensures it runs continuously for 12+ hours without overheating.

Optional DC Power:

Pair with two 12V/100Ah maintenance-free batteries and a 2.2kW motor for 7 hours of off-grid operation (8 lifts per hour). The 12V/15A charger fully recharges in 8 hours, making it ideal for remote jobs like wind turbine repairs or highway sign installation—free from cord constraints.

Fast Deployment & Precision Control

90-Second Setup:

Its patent-pending swing-outrigger mechanism allows one person to lock/unlock supports in 90 seconds—no tools required. With a folded width of 0.76m, it fits into tight spaces (e.g., warehouse aisles with 0.8m shelf gaps). Four heavy-duty 12-inch casters with electromagnetic brakes make moving the 730kg (AC model) easy, with single-person push resistance ≤35N on flat ground.

Intuitive Operation:

The platform handrail integrates a clear digital display showing height, load, and tilt. It adjusts speed from 0.3–0.6m/s with ±25mm accuracy—critical for tasks like pipe flange alignment or curtain wall installation. A foldable safety gate adds security, locking lifts if left open.

Core Safety Features (Industry-Standard Protection)

Anti-Misoperation Button: Prevents accidental starts by requiring a dual-button press to lift, eliminating errors.

Platform Self-Locking Gate: Automatically locks when open, cutting power to lifts to prevent falls.

Level Indicator: Triggers audible/visual alerts if tilt exceeds 3°, ensuring stable work surfaces.

Emergency Descent System: A manual pump lowers the platform in 30 seconds during power outages.

Emergency Stop Buttons: IP65 waterproof buttons on both ground and platform cut power in 0.3 seconds.

Forklift Access Points: Built-in 180mm×100mm ports for easy transport via warehouse forklifts.

Explosion-Proof Hydraulic Lines: Reinforced hoses with burst valves prevent sudden drops if lines fail.

All-Scenario Applications

Industrial Maintenance: Its 9m height handles factory crane rail checks, heavy machinery repairs, and warehouse rack reinforcement—with a 200kg capacity to carry welders or hydraulic tools.

Commercial Upgrades: Fits through mall/office elevators for ceiling installation, large sign mounting, or HVAC duct work—its narrow design avoids disrupting crowds.

Outdoor Construction: The DC model excels at highway overpass repairs, cell tower maintenance, or wind turbine bolt checks—operating on slopes up to 7°.

Municipal Work: Ideal for streetlight replacement, traffic signal repairs, or utility pole work—its weather-resistant build handles rain and snow.

Why It Stands Out

The AWP2-9 combines 9m reach, 200kg strength, and 7 critical safety features to outperform standard lifts. Whether you need non-stop industrial power or off-grid flexibility, it’s engineered for durability and ease—making it the top pick for heavy-duty aerial work.
