ATWP1-8 Single-Column Swivel-Leg Mobile Aluminum Platform: 8m Compact & Safe Solution for Single-Person Aerial Operations

Lightweight Single-Column Swivel-Leg Architecture: Engineering-Grade Balance of Narrow Design and Stable Support

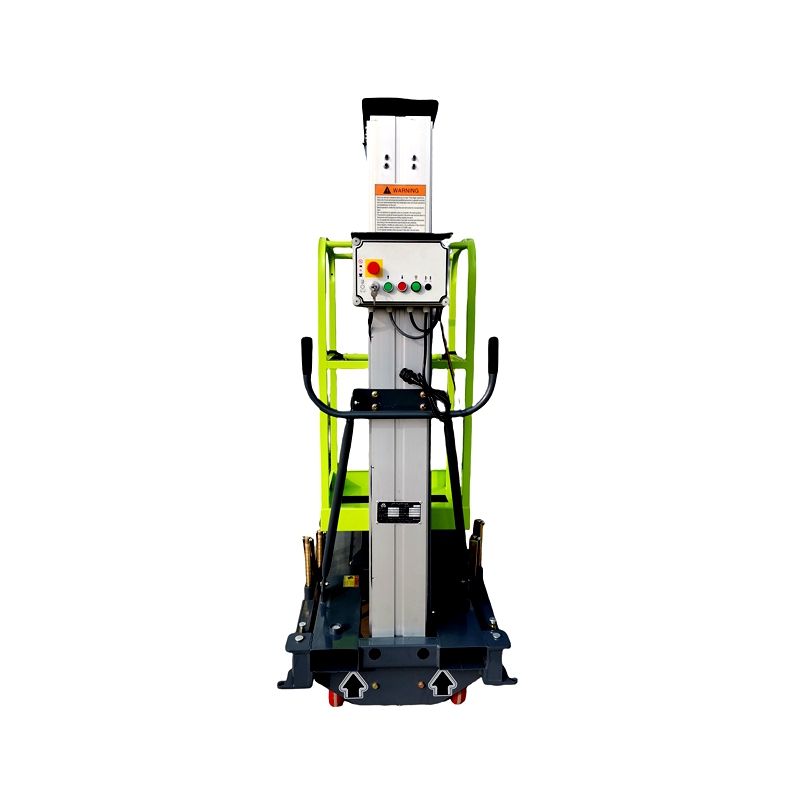

The ATWP1-8 features a single-column swivel-leg structure made of high-strength 6061-T6 aluminum alloy, achieving an 8m maximum platform height and 10m working height, with a 150kg rated load optimized for single-person aerial operations. The 0.6m×0.55m non-slip work platform is equipped with foldable guardrails and tool hangers, adapting to single-operator use with small tools or equipment. With retracted dimensions of 1.34m×0.85m×1.99m, it easily passes through indoor corridors ≥0.9m wide and standard residential elevators (car size ≥1.4m×1.1m). When deployed, the 1.7m×1.67m swivel-leg support forms a stable triangular base, limiting platform sway to ≤12mm at 8m height—compliant with GB/T 27548-2011 safety standards for aerial work equipment.

Dual-Power System: Adapting to Energy Needs Across All Scenarios

Standard AC Power Configuration

A 0.75kW lifting motor supports 220V/110V wide-voltage input, with a lifting speed of 0.4m/s. Ideal for continuous power scenarios such as shopping malls, offices, and factories, it enables uninterrupted operations for tasks like lighting replacement, pipeline maintenance, and high-shelf inventory management.

Optional DC Power

Equipped with a 12V/80Ah maintenance-free battery pack (available as an optional purchase), a 1.5kW DC motor enables 5 hours of continuous operation (12 lifting cycles per hour) on a full charge. The 12V/15A smart charger completes a full charge in 6 hours, making it suitable for outdoor billboard installation, courtyard streetlight maintenance, and equipment repairs in off-grid environments—free from cable constraints to enhance operational mobility.

Swivel-Leg Quick Deployment & Ergonomic Optimization

Space-Efficient Design

Both swivel legs are adjustable via lever handles, allowing single-person deployment or retraction within 90 seconds. The support area saves 25% of floor space compared to traditional outrigger structures, making it particularly suitable for operations in narrow areas such as stairwells and corridor corners. The AC model weighs 378kg, with 4 standard universal load-bearing wheels at the bottom, enabling single-person short-distance movement to reduce labor costs.

Precise Control Experience

The platform handrail integrates stepless speed control buttons, supporting lifting speed adjustment from 0.2-0.4m/s with ±25mm positioning accuracy—meeting the needs of fine operations such as electrical wiring and glass gluing. The foldable guardrail stands 1.1m high and is equipped with an auto-reset safety gate; lifting functions are disabled when the gate is open, eliminating fall risks at the source.

Industrial-Grade Safety & Durability

Structural Safety

The swivel-leg support features a dual design of mechanical locking + gravity self-locking. An audio-visual alarm triggers and restricts lifting when the tilt angle exceeds 3°, ensuring a level working surface. The hydraulic system includes a built-in overload protection valve, which automatically cuts power if the load exceeds 165kg (110% of the rated capacity) to prevent accidental tipping.

Durability Assurance

The aluminum alloy surface undergoes anodization, increasing corrosion resistance by 30% to adapt to harsh conditions such as humidity and dust. Key components like cylinders and motors use IP65 protection rating parts to extend equipment service life.

Versatile Application Scenarios

From high-altitude lighting maintenance in shopping malls to exterior wall maintenance of family villas, from power facility inspections to advertising sign installation, the ATWP1-8 precisely adapts to indoor and outdoor single-person aerial operation scenarios with its 8m platform height, narrow body, and swivel-leg stability. Whether for equipment debugging in narrow corridors or emergency repairs in off-grid environments, its dual-power configuration and seven-layer safety protection ensure efficient and safe operations. As the preferred solution for "8m single-column swivel-leg aluminum platforms" and "150kg single-person portable lifting equipment," the ATWP1-8 is becoming a trusted choice in commercial operations, home projects, and professional maintenance fields.
