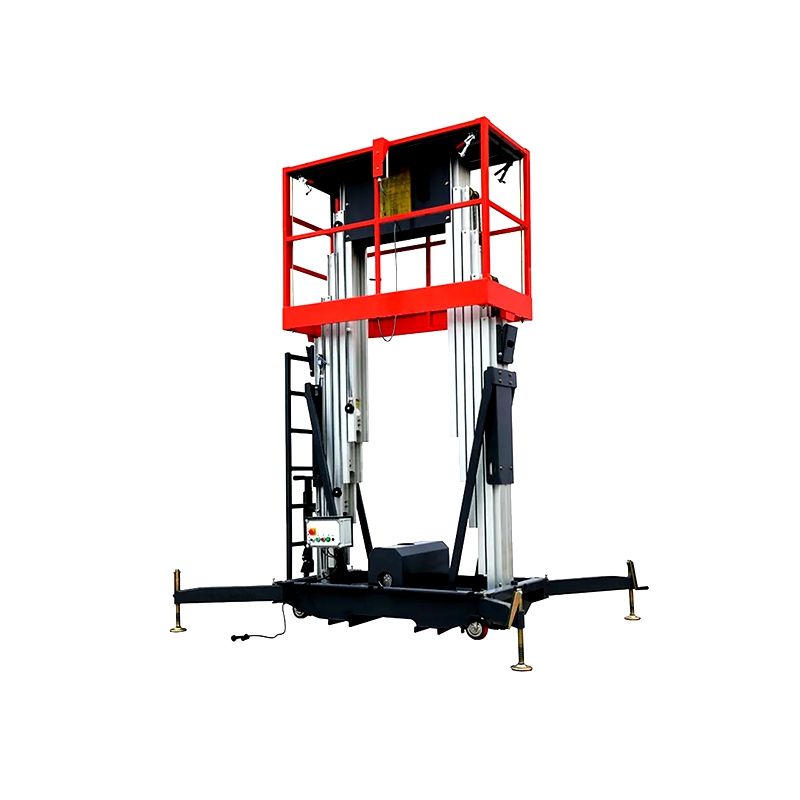

ATWY10-250-2-B Dual-Mast Aluminum Alloy Lifting Platform: 10m Mid-High Altitude "Space-Saving Heavy Lifter"

10m Height: Extend Mid-High Reach Beyond 8m

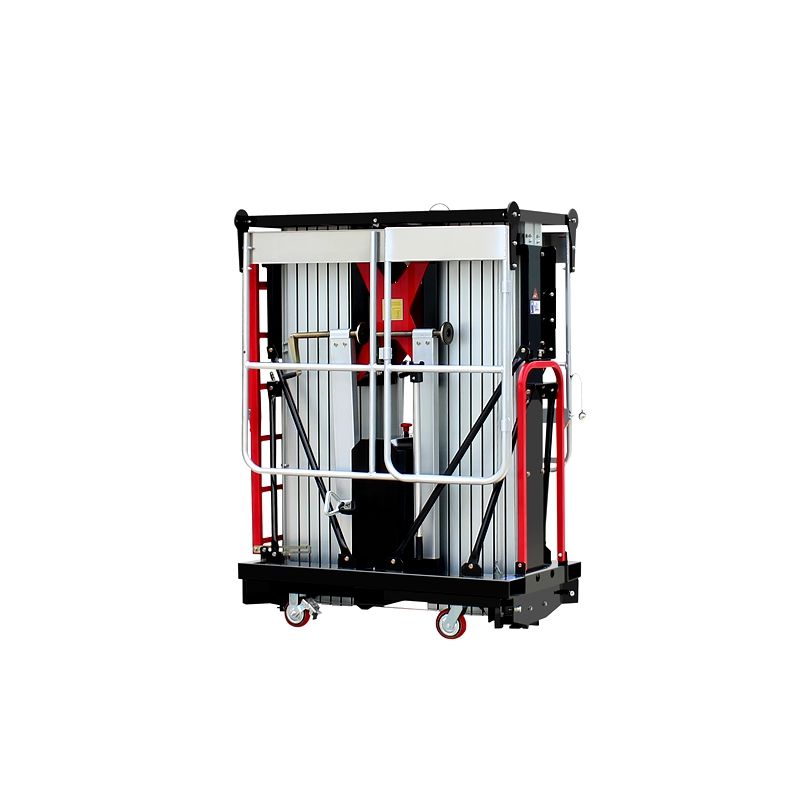

As a dual-mast lift tailored for 10m operations, ATWY10-250-2-B breaks through the "8m ceiling"—it reaches 10m-high factory overhead cranes, stadium roof trusses, and warehouse top-level racks, covering 20% more high-altitude areas than 8m models. Unlike bulky 12m lifts, its 1.84×0.85×2.0m compact size still fits through 1.2m-wide workshop doors, solving the "high height means large volume" problem.

250kg Payload + 1.5×0.63m Platform: Balance Between Load and Space

With a 250kg rated load, it easily carries 2 workers + tools (e.g., 15kg laser level + 20kg pipe cutter + 30kg spare parts), meeting "light-heavy" tasks that 200kg lifts can’t handle. The 1.5m-wide platform (30% wider than 1.2m models) adds extra space—no need to crowd when passing tools, and its 5mm anti-slip ridges prevent equipment from sliding during lifts.

Dual-Mast Stability: 10m Height Without Sway

Made of high-strength 6061-T6 aluminum alloy (tensile strength ≥280MPa), the dual masts use "gradient thickness" design: 5mm at the base (key stress area) and 3.5mm at the top. This ensures ≤3mm deflection at 10m with 250kg load—30% more stable than single-mast 10m lifts. Even when workers lean to adjust 10m-high fixtures, the platform stays steady.

1.5kW Power: Efficient Lifting for 10m Tasks

The 1.5kW motor is optimized for 10m height, lifting at 0.3m/s—reaching 10m in ~33 seconds (10% faster than standard 10m lifts). Its hydraulic system syncs dual masts (error ≤1mm), avoiding tilting that could shift 250kg loads. Run it for 6 hours (lifting once every 15 minutes with 250kg), and the motor stays cool (temperature rise ≤45℃), reliable for all-day use.

690kg Weight: Movable Despite 10m Height

At 690kg, it’s 15% lighter than same-height dual-mast heavy lifts. Thanks to the ergonomic push handle, one person can pull it on concrete (pull force ≤80N, like dragging a large suitcase). With a 2.0m turning radius, it navigates 1.5m-wide warehouse aisles, making repositioning between 10m work points easy.

Quiet & Floor-Friendly Mobility

Fitted with 90mm-wide polyurethane tires (3mm tread depth), it moves with ≤60dB noise—no disturbance in hospitals or schools. The steel-reinforced tires deform ≤5mm under 250kg, so they won’t scratch epoxy floors or leave marks on wooden floors, suitable for both industrial and commercial venues.

Full-Link Safety for 10m Operations

Anti-tilt Protection: A dual-axis level (15Hz sampling) locks the lift if tilted over 3°, 0.5° stricter than 8m models. Hidden outriggers (2.0×1.8m) spread pressure to ≤0.25MPa, preventing sinking on soft ground.

Emergency Control: The upgraded emergency descent valve adjusts speed (0.2-0.3m/s) during power loss; paired with a manual pump, it lowers from 10m to the ground in 40 seconds, eliminating stranding risks.

Tool Security: 4 built-in hooks (each holding 15kg) and 2 bolt holes fix tools, avoiding drops from 10m height.

Custom Options for Diverse Scenarios

Battery-Powered Version (12V/120Ah): 5-hour runtime, ideal for outdoor 10m tasks (e.g., street lamp repair) without cords.

Explosion-Proof Model (Ex dⅡBT4): Anti-static design suits chemical plant 10m pipe inspections, preventing sparks.

Powered Drive: Electric wheels (2.5km/h) cut repositioning time by 60% in large logistics parks.

Key Applications: 10m Tasks It Excels At

Industrial Overhaul: Reaches 10m overhead cranes, carrying 2 workers + 200kg detectors for fault checks.

Stadium Maintenance: Lifts 2 technicians + 100kg lighting fixtures to 10m trusses, with quiet tires protecting venues.

Warehouse Restocking: Carries 250kg goods to 10m shelves, reducing trips by 40% vs. smaller lifts.

Municipal Installation: Installs 10m traffic cameras in narrow roads, with battery power for outdoor use.

ATWY10-250-2-B redefines 10m lifting: it’s tall enough for 10m tasks, stable enough for 250kg loads, and compact enough for narrow spaces. Whether for repair, installation, or restocking, it makes 10m operations efficient and safe.
