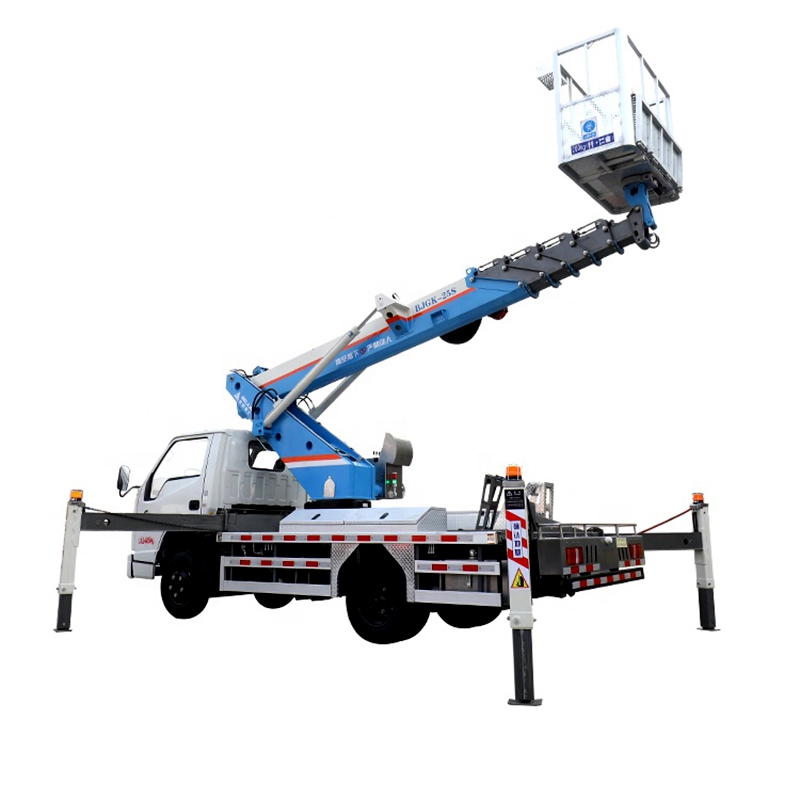

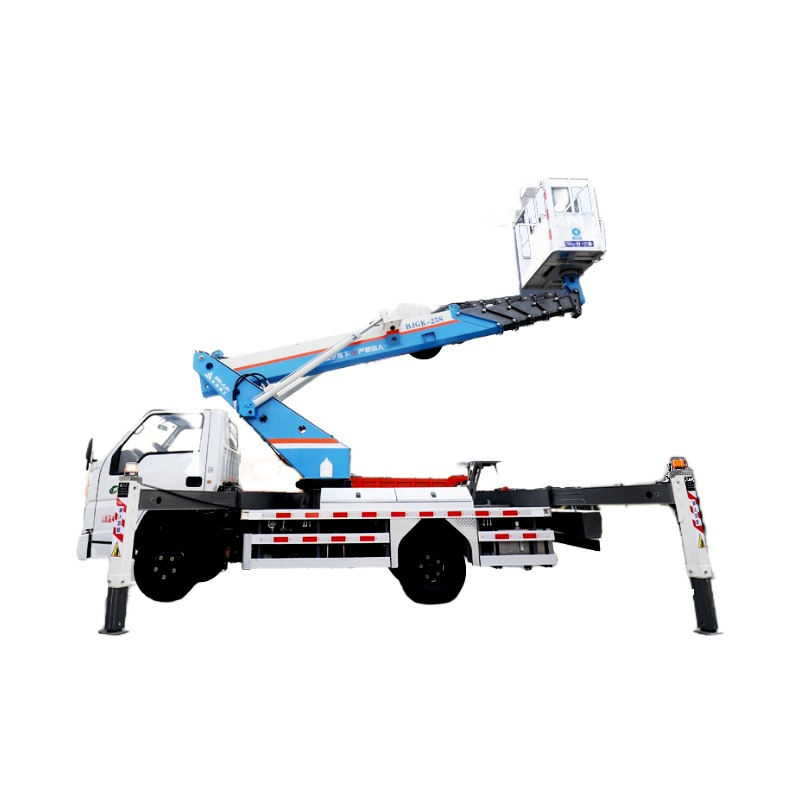

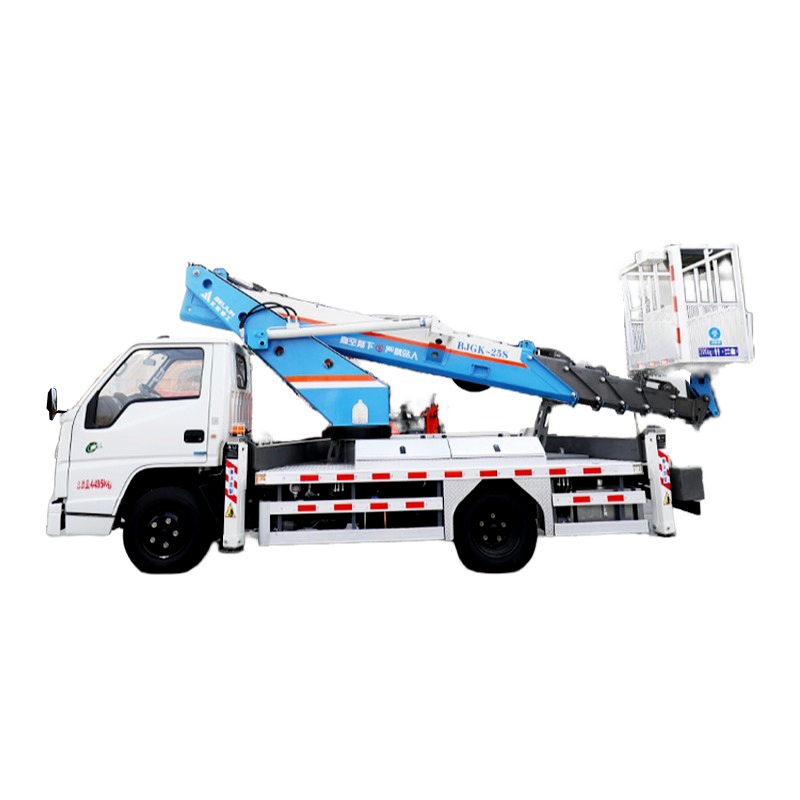

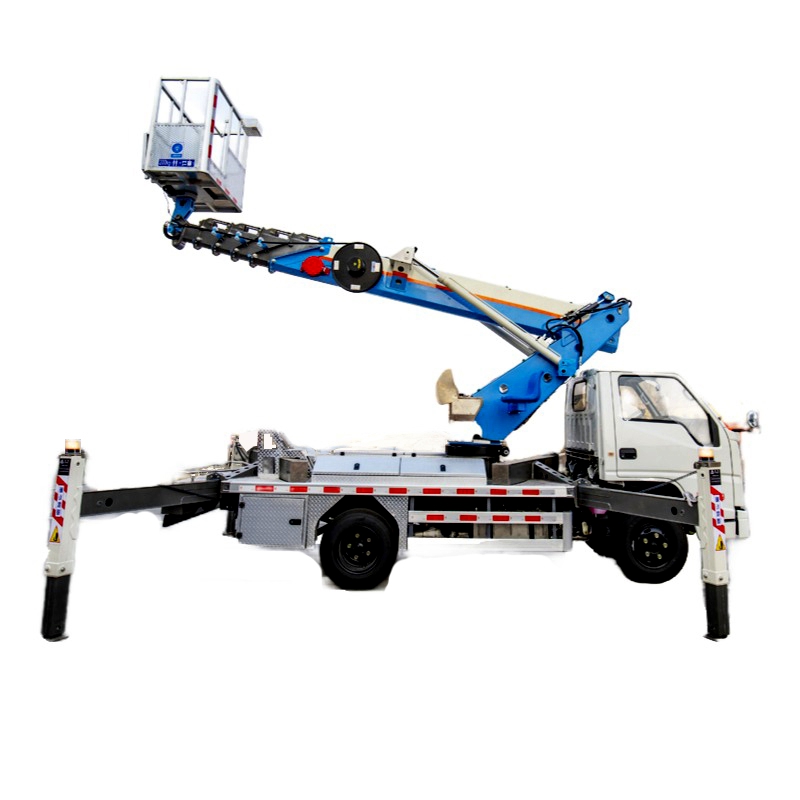

25m Aerial Work Platform: Euro VI Power • 6-Section Arm • All-Scenario Safety

1. Operational Capability: Precise Coverage, High Efficiency

Key Aerial Work Parameters:

25m maximum working height and 23.3m platform height for easy access to high-rise building tops, power lines, and other elevated points.

12m single-person working radius and 20m working height at maximum radius, with a 3m working radius at height, adapting to diverse scenarios from confined indoor factories to open outdoor infrastructure sites.

200kg-rated work platform (accommodates 2-3 operators + tools), ideal for frequent tasks like building facade repair, streetlight installation, and garden pruning.

2. Mobility and Deployment: Compact Design, Rapid Setup

Road Mobility:

Dimensions: 5950×2000×3000mm (similar to standard light trucks), 3360mm wheelbase, 200mm minimum ground clearance, 20° approach angle + 14° departure angle for seamless navigation in urban streets and rural roads.

80km/h max speed and 4495kg total mass paired with 4300/4100mm front/rear outrigger span + 3900mm longitudinal span ensure optimal transit efficiency and operational stability.

Rapid Deployment:

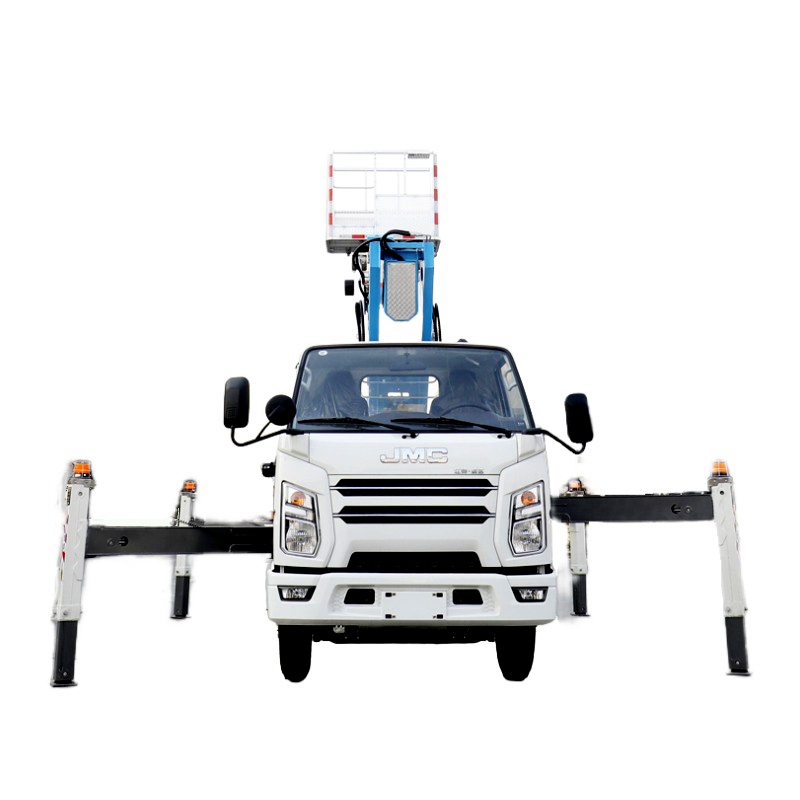

34-second outrigger deployment/retraction (50% faster than industry peers). Front X-type + rear H-type outriggers allow independent leveling for sloped or uneven terrain.

3. Core Configuration: Isuzu Euro VI Power, 6-Section Arm Precision

Chassis and Drivetrain (Customizable):

JX1041TG26 dedicated chassis with Isuzu Euro VI engine (85kW max power), 12L/100km fuel consumption, compliant with nationwide environmental registration standards.

Turbine reduction gear slewing mechanism, 75-second boom luffing time, 110s/r slewing speed, smooth operation with ≤10cm positioning error.

Intelligent Control:

6-section hexagonal synchronous telescoping arm (high-strength steel, wind resistance ≤Level 6), supporting dual-mode electrical operation via platform and ground remote.

Electro-hydraulic proportional control for stepless speed regulation; hydraulic automatic leveling ensures constant platform horizontal alignment, user-friendly for novices.

4. Safety Features: 10 Intelligent Protection Systems

Active Safety:

Automatic interlock between cab and platform (disables work functions while driving).

Outrigger pressure detection (intelligently locks boom movement if any leg is unloaded).

Real-time level sensor (alarms at >3° lateral/longitudinal tilt).

Emergency electric pump (manually lowers platform in main pump failure).

Passive Safety:

Engineering strobe lights + LED work lights (50m+ night warning distance).

Aluminum alloy anti-slip platform (30% higher friction coefficient than steel).

Dual safety harnesses + 360° guardrails (1150mm basket edge protection height).

5. Design Details: Durability and Ergonomics

Cab Experience:

Single-row 3-seat cabin with heating/AC; LCD dashboard displays real-time boom angle, outrigger status, and other key data.

Maintenance Convenience:

Mechanical power take-off (no electrical maintenance, <5% failure rate).

Open-type hydraulic tank (200L capacity with level gauge), extended 500-hour maintenance cycle.

Applications

Municipal projects: Streetlight maintenance, traffic sign installation.

Construction: Exterior painting, glass curtain wall replacement.

Power/telecom: High-voltage tower maintenance, base station antenna adjustment.

Rental market: Suitable for short/long-term leasing, <$400 annual maintenance cost.

Certifications: ISO 9001, CE certified. Supports flexible customization of colors, functional modules, and work tools to adapt to diverse operational requirements.
