Short Description:

Smart Limit Control: Imported controller with display for real-time monitoring and precise safety protection....

• Model: GKBJ-32-B
• Maximum Platform Height (m): 30.3
• Maximum Working Height (m): 32
• Rated Load of Work Platform (kg): 200
• Working Radius at Maximum Working Height (m): 3
• Maximum Working Radius (m)Single-person: 21
• Maximum Working Radius (m)Double-person: 18
• Working Height at Maximum Working Radius (m): 27
• Outrigger Span/Longitudinal (mm): 5900
• Outrigger Span/Transverse (mm): Front and rear 6200
• Boom Luffing Time (s): 75
• Boom Rotation Speed (s/r): 130
• Outrigger Retraction/Extension Time (s): 34
• Overall Dimensions (mm): 5980×2100×2920
• Seating Capacity (including driver): 2
• Total Mass (kg): 4495
• Front Overhang (mm): 1070
• Rear Overhang (mm): 1520
• Wheelbase (mm): 2800
• Maximum Driving Speed (km/h): 100
• Minimum Ground Clearance (mm): 200
• Approach Angle (°): 20
• Departure Angle (°): 14
• Chassis Model: QL1041DCFAY (Air Brake)
• Engine: Isuzu 4KB1-TCG60 2.5L / 130 hp
• Gearbox: Isuzu MSB Five-speed Gearbox
• Axle: Front Axle: Isuzu NP20A
• Tire Specification: 7.00R16LT
• Work Platform: 1800×800×1050

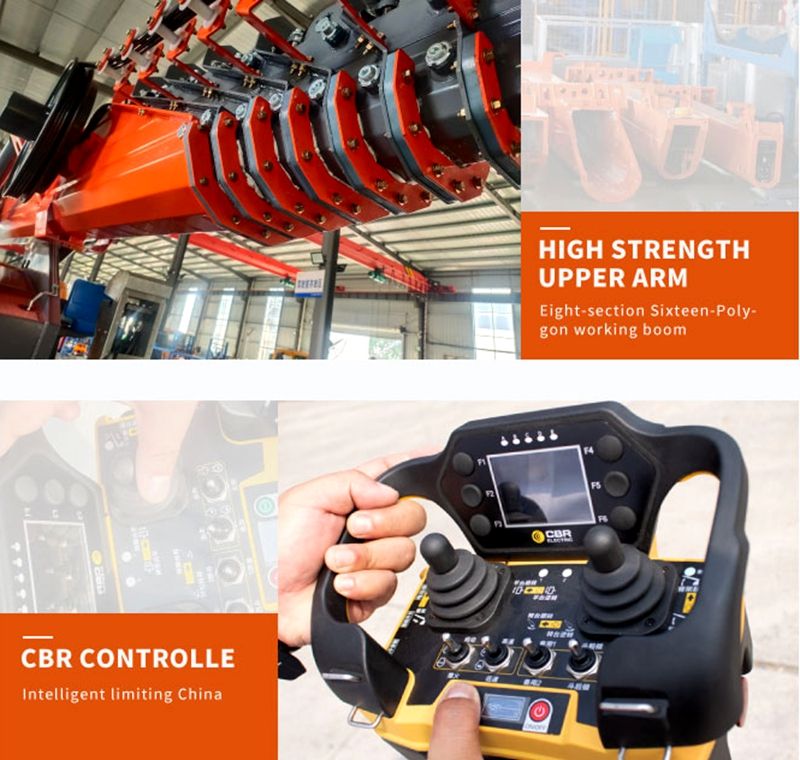

• Boom Form: 8-section 16-sided Working Boom, Synchronous Telescoping

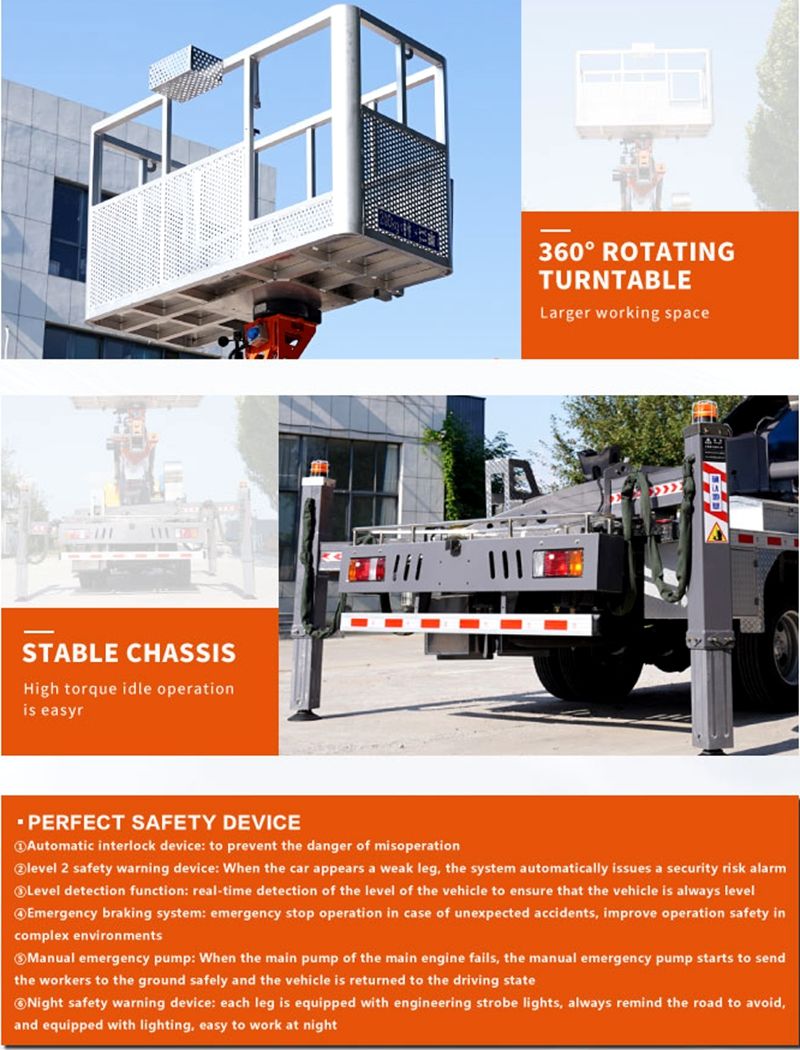

• Slewing Device: Turbine Rotating Speed Reducer Slewing

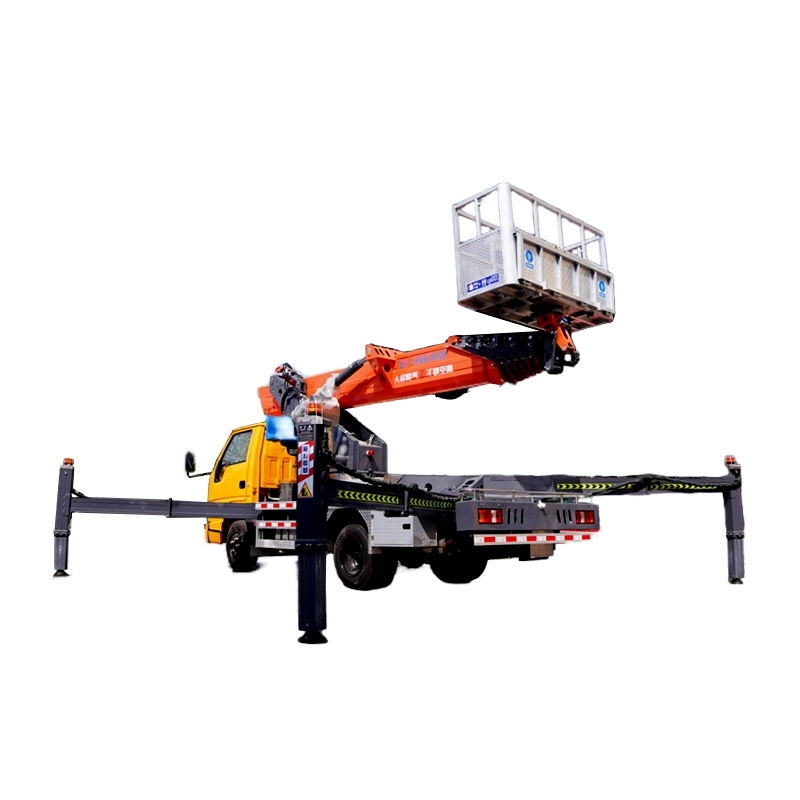

• Outrigger System: Front X-type, Rear X-type, Good Stability, Can Be Operated Simultaneously or Individually, Adapt to Various Working Conditions
• Operation System: Electrical Operation of Work Platform and Ground Remote Control
• Control System: Electro-hydraulic Proportional Control System, Achieving Stepless Speed Regulation
• Leveling System: Hydraulic Automatic Leveling
• Remote Control System: Cabar Intelligent System
