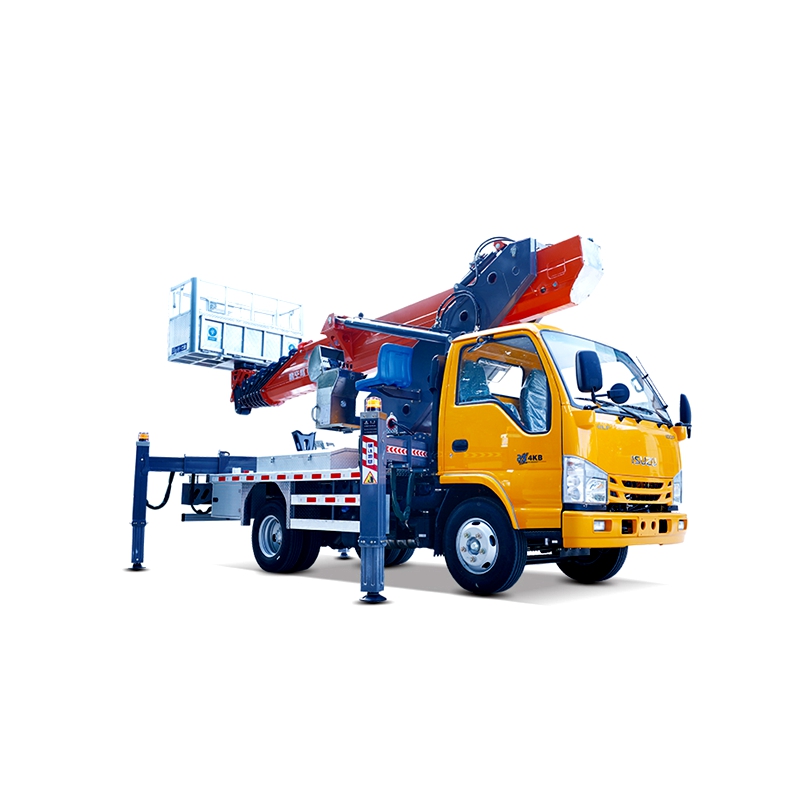

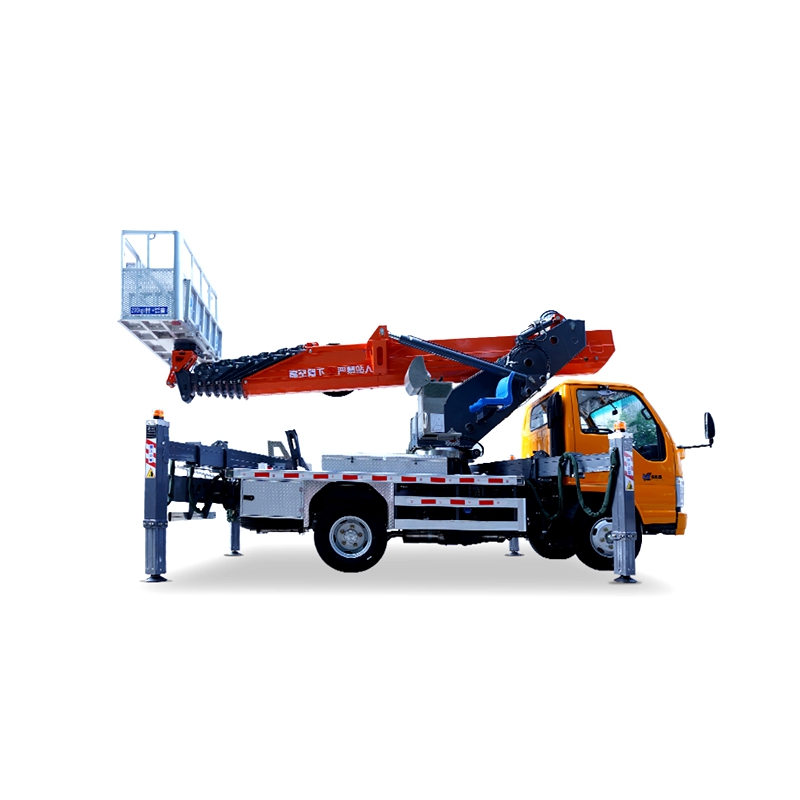

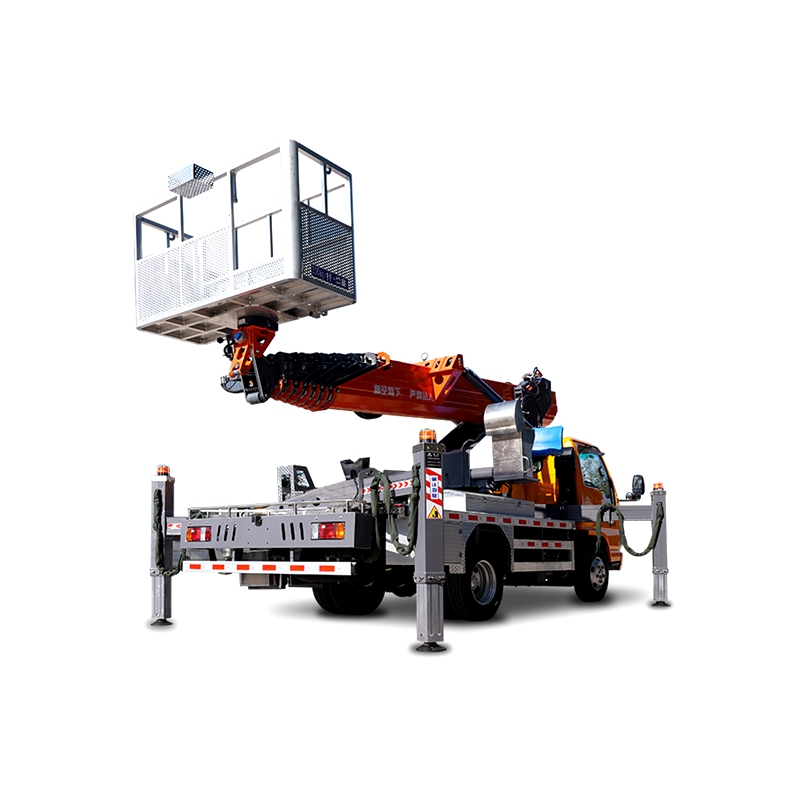

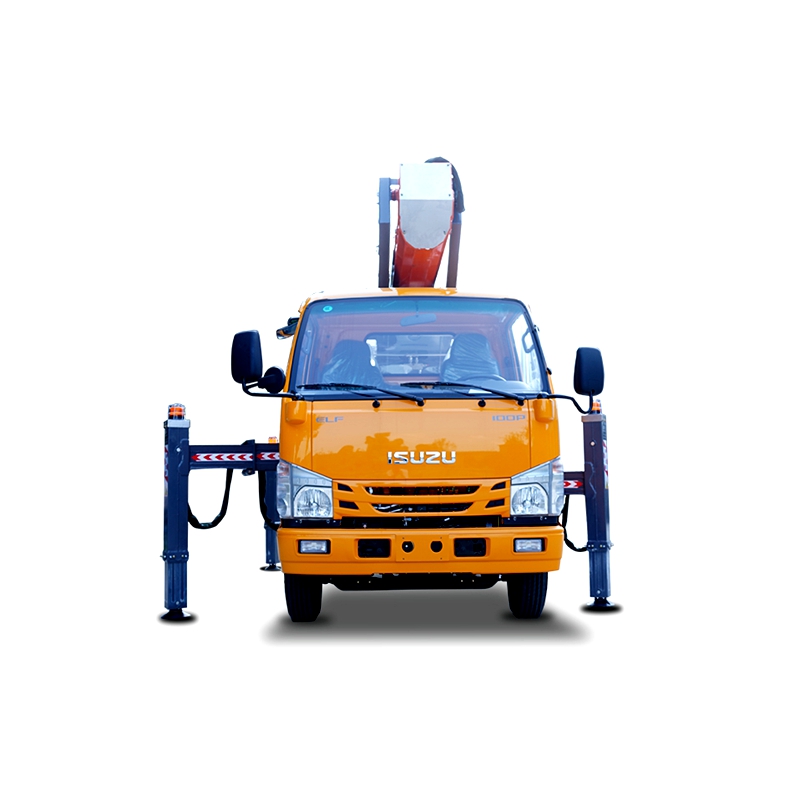

Qingling Isuzu 32m Aerial Work Platform: A New Paradigm of Exceptional Performance, Safety, and Efficiency

1. Outstanding Operational Capability

Superior Working Height and Reach: With a maximum platform height of 30.3m and maximum working height of 32m, it effortlessly accesses high-altitude work points. The single-person working radius is 21m, and the double-person working radius is 18m, with a working height of 27m at maximum radius. It excels in both confined-space precision tasks and large-scale open-area operations, widely applicable to scenarios such as building exterior decoration, power line maintenance, and streetlight servicing.

Practical Rated Load: The work platform has a 200kg rated load, sufficient to carry operators and necessary tools/materials, meeting regular aerial work requirements.

2. Excellent Driving and Stability Performance

Superior Driving Parameters: Overall dimensions are 5980×2100×2920mm, with a passenger capacity of 2 (including the driver) and a total mass of 4495kg. The 2800mm wheelbase, 100km/h maximum speed, 200mm minimum ground clearance, 20° approach angle, 14° departure angle, 1070mm front overhang, and 1520mm rear overhang ensure excellent road passability and driving stability for efficient site transitions.

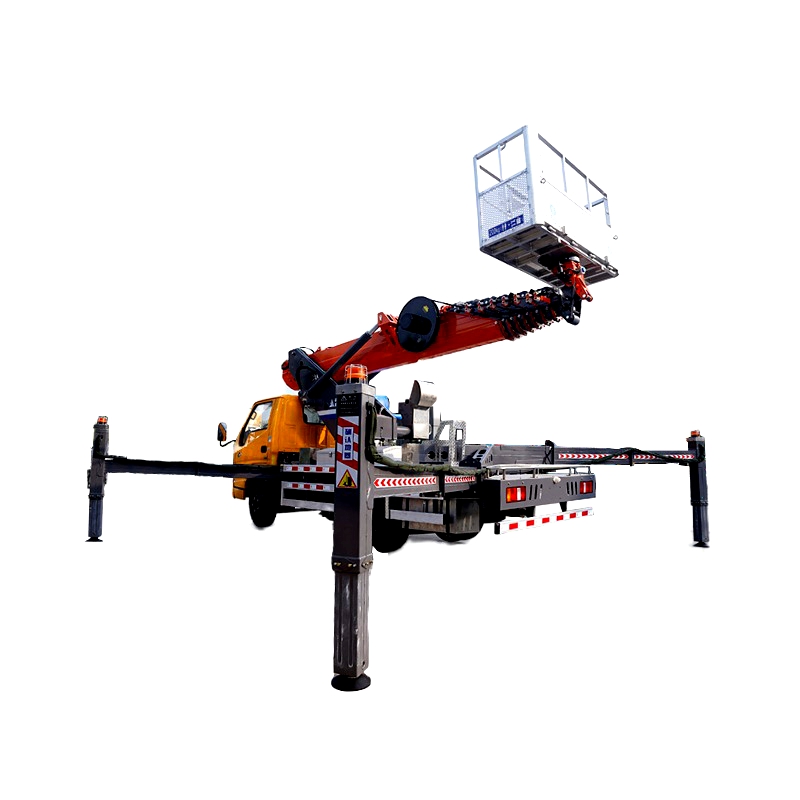

Reliable Outrigger Design: The outrigger span is 5900mm longitudinally and 6200mm transversely (front/rear). The front X-type and rear X-type outrigger system offers superior stability, allowing simultaneous or independent operation to adapt to various complex working conditions and ensure vehicle stability during operations. Outrigger deployment/retraction takes only 34 seconds, enabling rapid setup and evacuation.

3. Advanced and Sophisticated Configuration

Powerful Chassis and Drivetrain: Equipped with a Qingling Isuzu QL1041DCFAY air-brake chassis and a Isuzu 4KB1-TCG60 engine (2.5L displacement, 130HP), it delivers robust power and high reliability. The Isuzu MSB 5-speed gearbox, NP20A front axle, NE11M rear axle, and 7.00R16LT tire specification ensure a mature and stable power transmission and driving system.

Efficient Boom and Slewing Mechanism: The eight-section sixteen-sided working arm with synchronous telescoping design has a 75-second boom luffing time. The slewing device uses a turbine reduction gear for 130 seconds per revolution (s/r) slewing speed, enabling smooth movements and precise positioning to quickly adjust work positions and angles.

Intelligent Operation and Control: The operation system supports electrical operation via both the work platform and ground remote control. The control system uses electro-hydraulic proportional control for stepless speed regulation, ensuring precise and simple operation. The hydraulic automatic leveling system and Kabal intelligent remote control system enhance intelligence and reduce operational complexity.

4. Comprehensive Safety Provisions

Multiple Safety Devices:

Automatic interlock device between upper and lower vehicle prevents dangerous misoperations.

Outrigger detection function intelligently restricts movement when outriggers are unloaded.

Horizontal detection function real-time monitors the vehicle’s levelness.

Emergency electric pump safely lowers workers to the ground in case of main pump failure.

Emergency stop device enables rapid braking in emergencies.

Night safety warning devices include engineering strobe lights and work lights.

Vehicle levelness tester detects lateral and longitudinal tilting, ensuring all-around operational safety.

5. Thoughtful Detail Design

Anti-Slip Platform: The enclosure machine platform uses aluminum alloy checkered anti-slip plates to prevent operator slips and ensure walking safety.

Convenient Power Take-off (PTO) System: The mechanical operation PTO system is stable and reliable, facilitating quick power output switching.
