Stable, Swift, and Cost-Effective! The New-Generation Telescopic Boom Aerial Work Platform Integrates Safety and Efficiency into Every Step of the Operation Process

I. Exceptional Performance, Unmatched Capability

Operation Capability

With an outstanding combination of height and amplitude, it covers all-dimensional needs of high-rise construction. The 28m maximum working height breaks through conventional limits, paired with a 12m large working amplitude and 3m precise small amplitude, enabling effortless operation in complex spaces. The 200kg load capacity supports two operators working collaboratively, doubling efficiency.

Driving and Structure

Equipped with a dedicated EQ1045SJ16DC chassis and a Q23-95E60 full-diesel engine (95HP), it achieves a maximum speed of 75km/h for rapid site transitions. The compact body (5995×1950×2990mm) fits through narrow passages, while a 20° approach angle, 19° departure angle, and optimized ground clearance ensure seamless navigation across all terrains.

Operation Efficiency

The boom luffing, slewing, and outrigger deployment/retraction times are optimally minimized. The wide outrigger span (5450mm front/rear transverse, 3860mm longitudinal) provides a solid operational foundation, significantly enhancing construction pace.

II. Innovative Technology, Industry Leadership

Hexagonal Telescopic Boom

Empowered by aviation-grade high-strength steel, it enhances tensile resistance and rigidity while achieving lightweight design. The synchronous telescoping technology ensures millimeter-level error control (<5mm), leading the industry in operational precision. This precise positioning reduces repeated adjustments, driving breakthroughs in both construction quality and efficiency.

Intelligent Control System

The CBR electro-hydraulic proportional control system enables stepless speed regulation with a response time of <0.3 seconds, ensuring smooth operation. The vehicle-level horizontal monitoring system, combined with dual operating systems (platform and ground remote control, effective distance ≥15m), integrates intelligent safety and convenient operation.

High-Stability Chassis

The front double-X/rear double-H outrigger design offers a leading grounding area, with a 25% increase in anti-tip moment. The all-wheel-drive system and ≥30% gradeability allow smooth operation in complex sites, far surpassing competitors in stability.

III. All-Round Safety Assurance, Rock-Solid Reliability

Active Protection

Automatic interlock system between upper and lower vehicles prevents misoperation risks.

Outrigger pressure sensors monitor force status in real time, automatically locking operations if a single leg loses pressure.

±0.5° horizontal detection accuracy ensures a safe operational environment from the source.

Passive Protection

Aluminum alloy non-slip walkways (friction coefficient ≥0.6) and industrial-grade LED strobe warning lights (360° visibility ≥500m).

Guardrails made of φ42×3.5mm high-strength steel comply with EN280 impact resistance standards, building a multi-layered physical safety barrier.

Emergency System

Dual-circuit hydraulic system with emergency electric pump for instant switching in case of main pump failure.

Emergency stop devices across all operation areas cut off power within 0.5 seconds, while the turbine slewing reducer’s self-locking function maintains position during power outages.

IV. User-Centric Design, Enhanced Experience

Operational Comfort

Single-row cab with air conditioning and ergonomic seats.

Hydraulic automatic leveling system keeps the platform horizontal (error <1°), and integrated control handles (operation force ≤5N) minimize fatigue.

Maintenance Convenience

Dual-side engine compartment doors (850mm maintenance space), centralized lubrication system (12-point simultaneous lubrication), and CAN bus fault self-diagnosis system improve maintenance efficiency by 50% and reduce costs significantly.

V. Diverse Applications, Universal Coverage

Suitable for multiple scenarios:

Municipal engineering (streetlight maintenance, traffic sign installation, bridge inspection)

Construction (exterior insulation, glass curtain wall installation, high-altitude painting)

Power maintenance (substation equipment upkeep, overhead line repair)

Landscape maintenance (tall tree pruning, landscape light installation)

Warehousing logistics (high-bay shelf management, automated stereo warehouse maintenance)

It provides one-stop solutions for all aerial work needs, with unmatched adaptability.

VI. Technical Advantages, Industry Benchmark

Height Breakthrough

The 28m working height surpasses competitors, unlocking extreme scenarios like super-high-rise construction and bridge inspection, expanding the value boundary of operations.

Precision Leadership

Millimeter-level boom synchronization ensures the smallest positioning error in the industry, enabling "point-to-point" construction precision and dominating both quality and efficiency.

Stability Priority

The large grounding area and optimized outrigger design keep the platform stable on complex terrains, with safety coefficients far exceeding peers and full confidence in operations.

Agile Response

0.3-second ultra-fast control enables seamless action coordination, accelerating construction pace and significantly improving man-hour utilization.

Lightweight Excellence

The ultra-light design highlights advantages in transportation, site transition, and ground load, reducing comprehensive costs and expanding application scenarios for superior economy and flexibility.

The All-Round Benchmark, the Valuable Choice

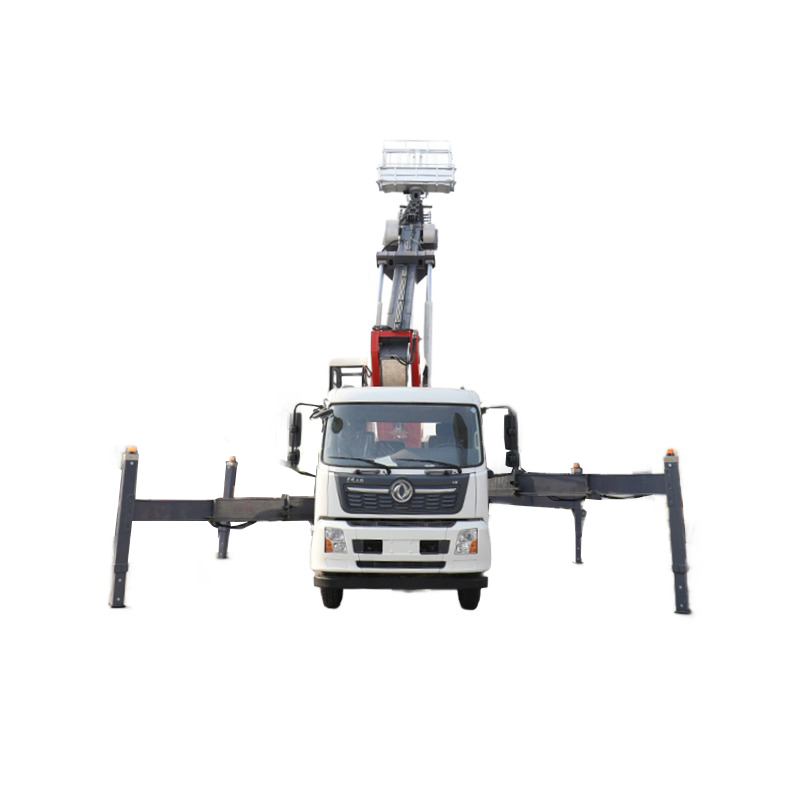

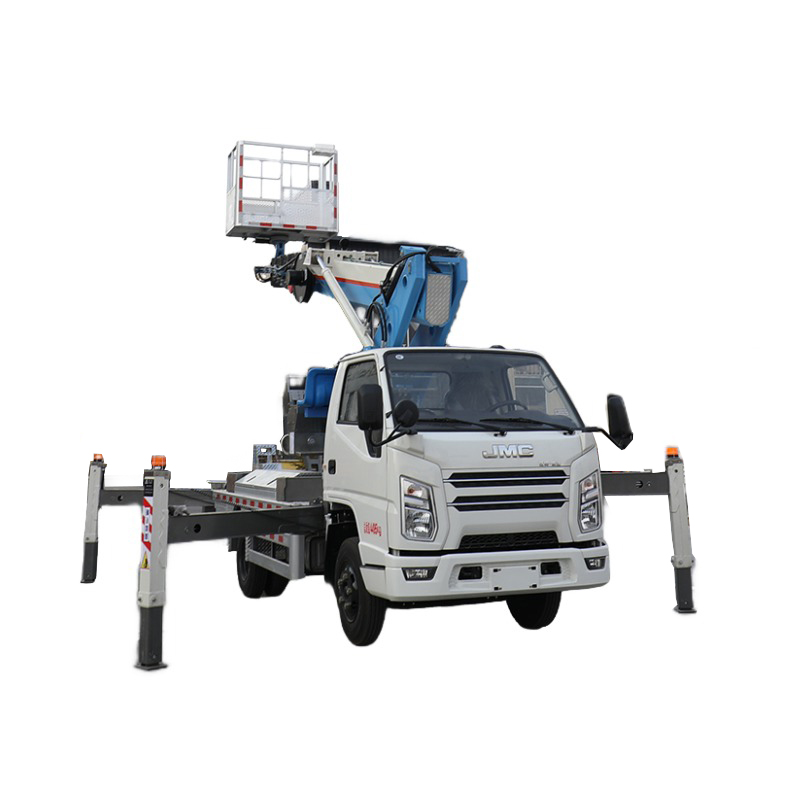

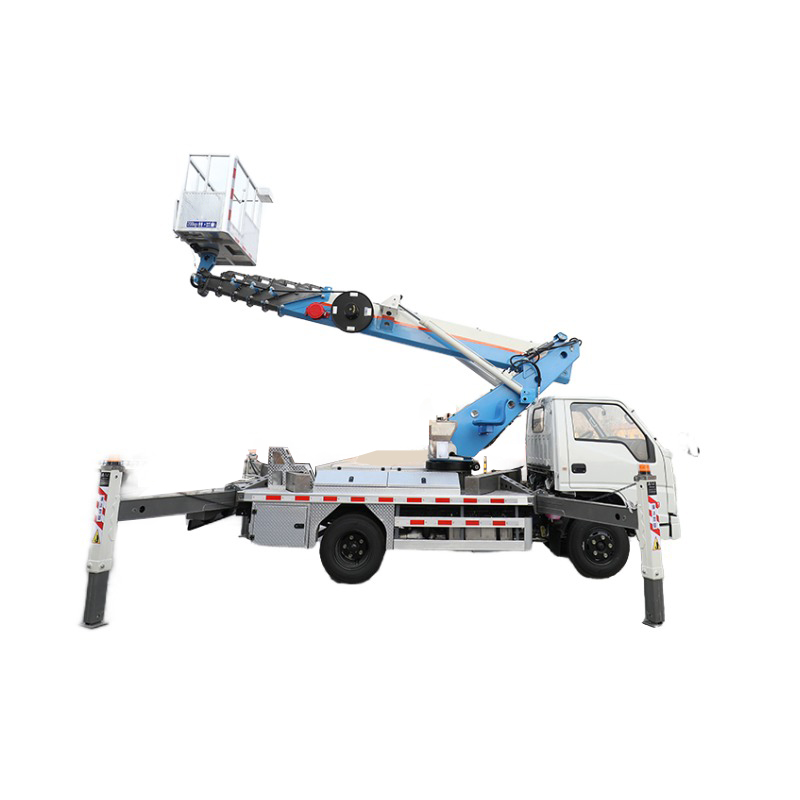

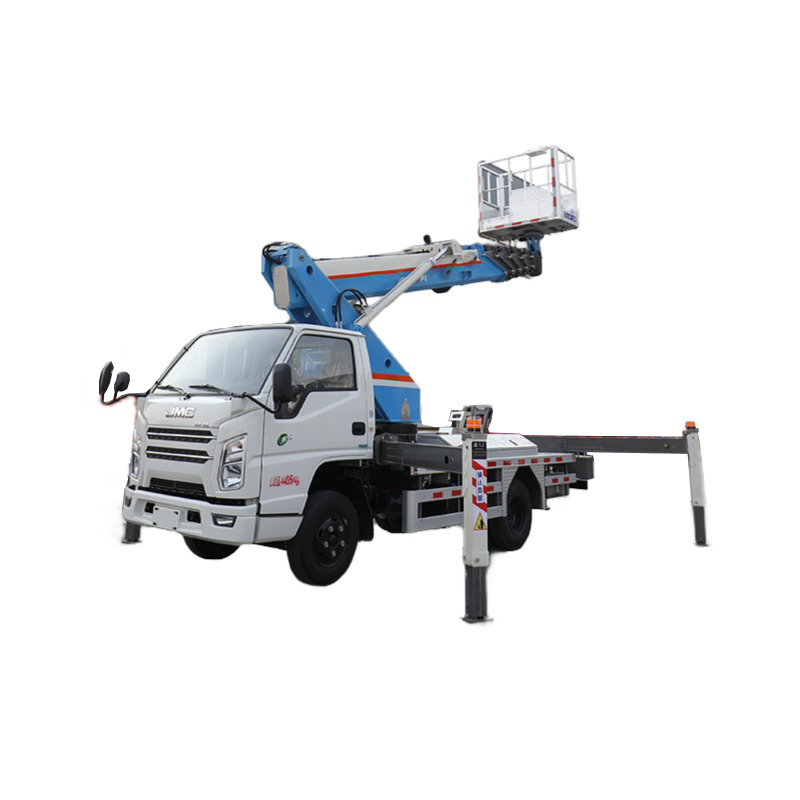

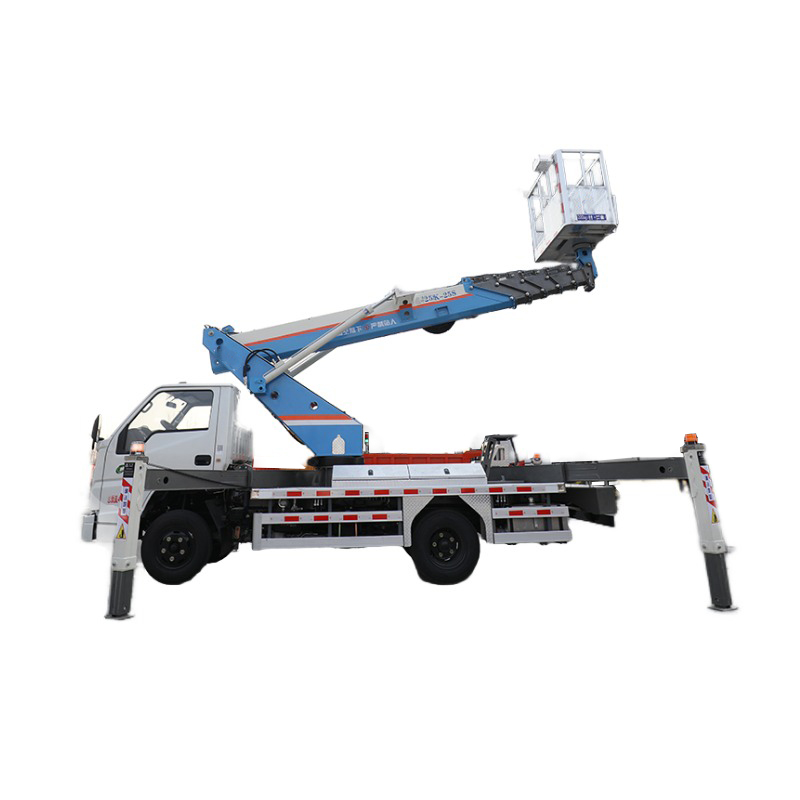

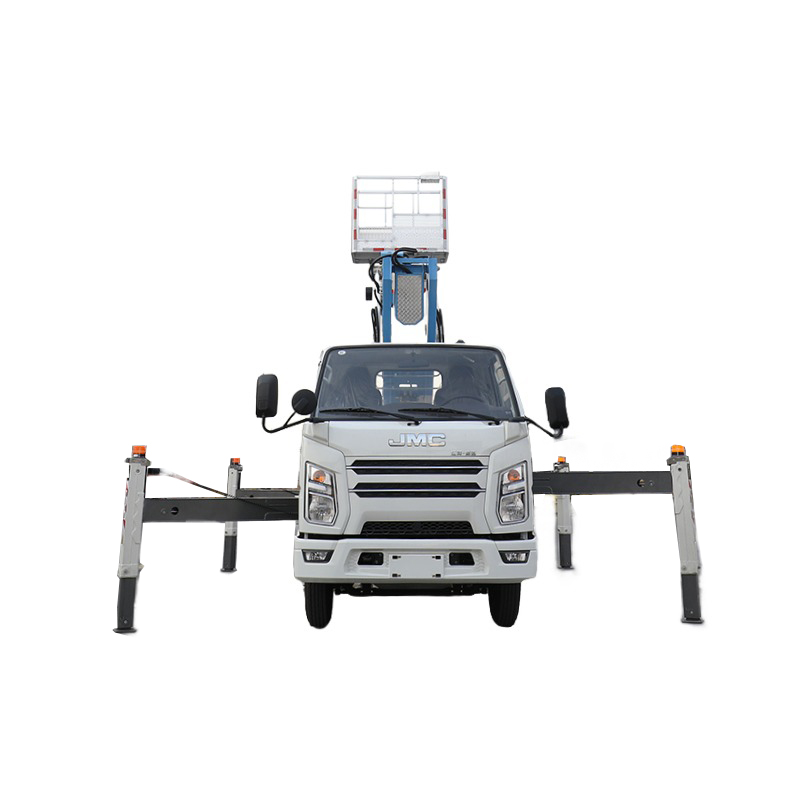

The Ant28 Telescopic Boom Aerial Work Platform, centered on "Height, Stability, Speed, and Lightweight", integrates performance, technology, safety, and user-centric design, demonstrating all-around leadership over competitors. Whether for the height demands of super-high-rise construction, stable operations on complex terrains, or millisecond-level control responses, it showcases industry benchmark strength. Providing users with "worry-free safety, excellent efficiency, and controllable costs", it becomes the first-choice tool for construction, municipal, power, and other industries, helping users "secure the lead and win efficiently" in aerial work scenarios.
