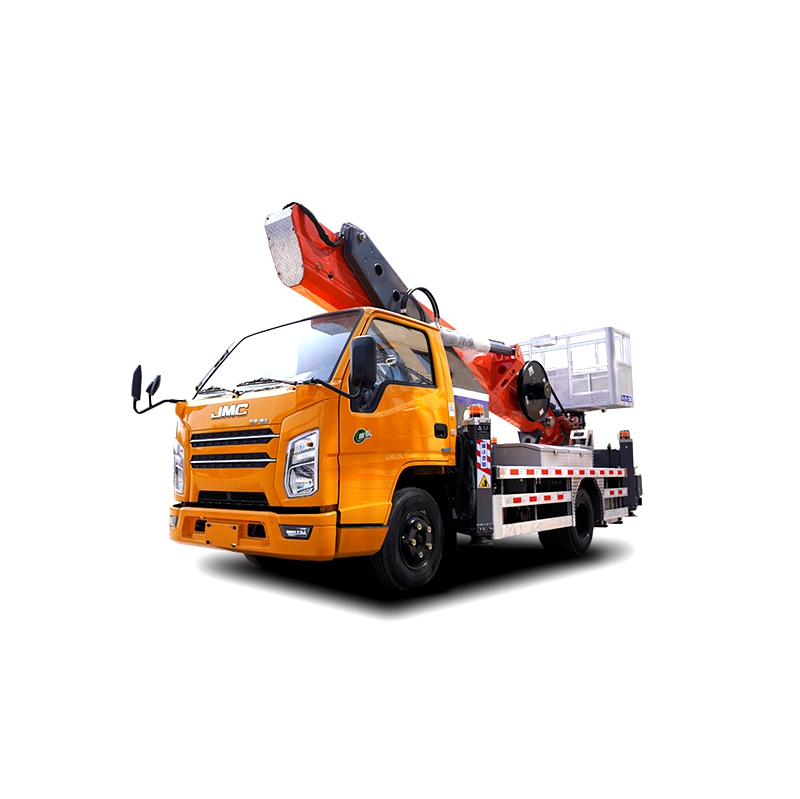

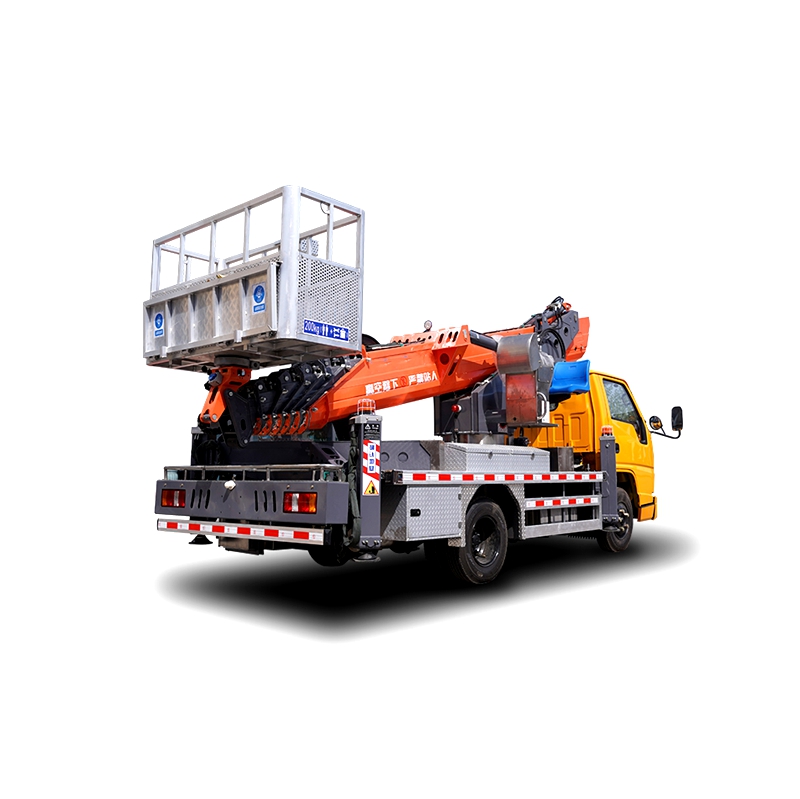

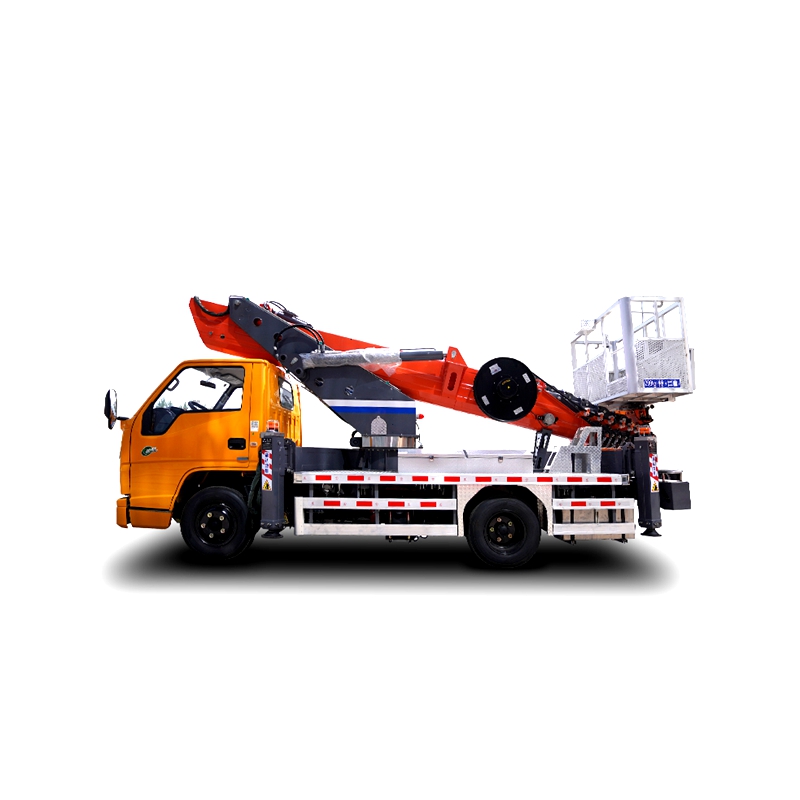

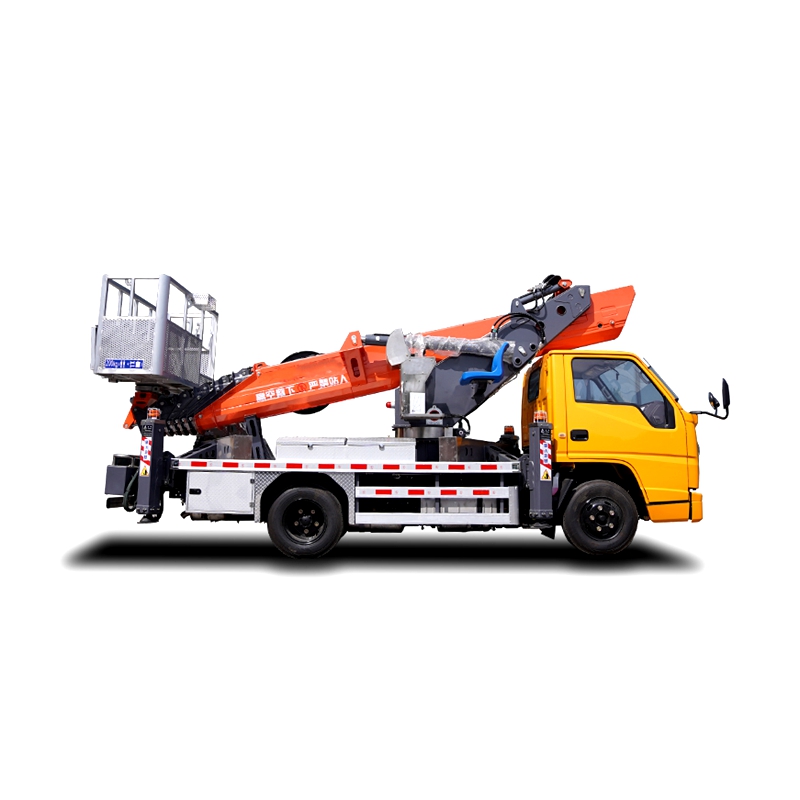

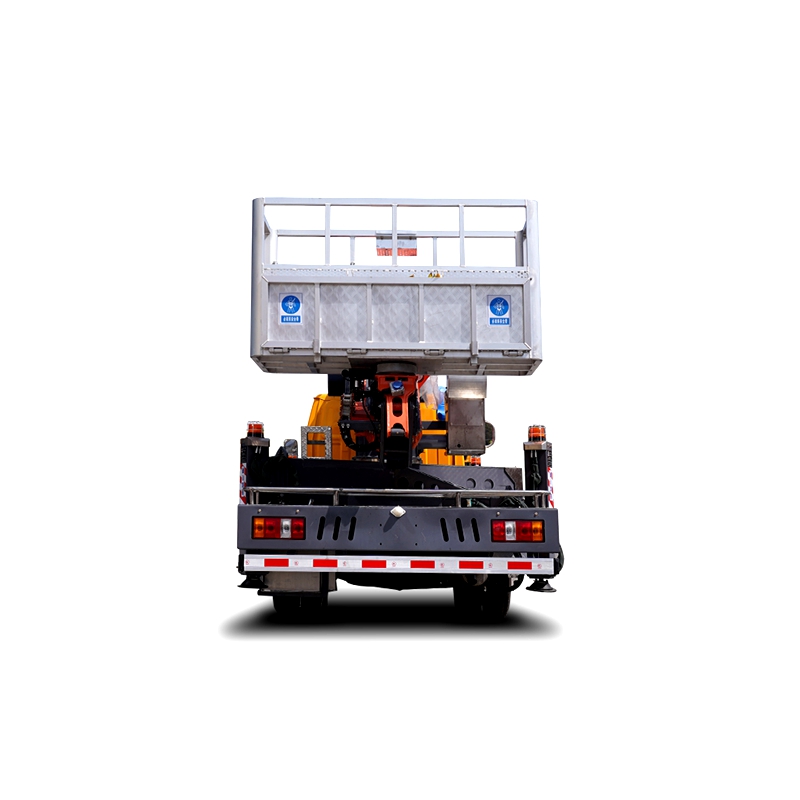

Ant 32 m Aerial Work Platform: The All-round King of Aerial Work, Redefining Industry Standards

Performance Peak, Breaking Operational Limits

Ultra-wide Operation Coverage: Equipped with an eight-section sixteen-sided working arm (synchronous telescoping), it achieves a 32m maximum working height, 21m single-person working radius, and 18m double-person coverage, with 24m high-radius operation effortlessly handled. Ideal for infrastructure, maintenance, and installation in both confined and open spaces, leaving no blind spots.

Strong Chassis and Power

JX1041TCD26 Heavy-duty Chassis (high-strength steel frame, 30% increased torsional stiffness) paired with JX4D30B6H engine (4×2 drive, 100km/h max speed for industry-leading transit efficiency). 4495kg total mass balances stability and mobility, with 2800mm wheelbase + X-type outriggers (5900×6200mm span), 20° approach/19° departure angles for all-terrain traversal. Outrigger deployment/retraction ≤60s for rapid on-site setup, saving 1.5 hours/day in construction schedules.

Intelligent Safety, Guarding Every Moment

Full-dimensional Protection System:

Outrigger Safety: Bidirectional hydraulic lock, detection switch, alarm light/buzzer, level gauge, independent outrigger adjustment (wireless/manual dual control, upper-lower vehicle interlock), and strobe lights (4 front/rear) for harsh-condition stability.

Arm Safety: Double-cylinder luffing (0°-78°), limit indicators (overload prevention), 3-4mm high-strength steel arm (sixteen-sided section, anti-torsion/deformation), ≤60s/r slewing speed for precise positioning.

Basket Safety: 200kg rated load (static hydraulic leveling + 360° electric slewing), oxidized aluminum alloy (anti-slip plate), double safety belts + emergency pump, 20MPa hydraulic system (bidirectional balance valve/lock) for secure aerial operations.

Operation Revolution, Efficiency Soars

Dual-mode Operation:

Turntable Cabin: Comfort seat + HVAC, electronic control (one-button arm/outrigger/engine control, remote electronic throttle for speed precision).

Basket End: Wireless 360° remote control, upper-lower vehicle interlock + dual-position engine start/stop, 120s rapid lifting + 95s fast descent, enabling 50% labor cost reduction (single-person full-operation capability).

Durability and Aesthetics, Long-term Value Addition

Hardcore Materials: 4-5mm high-strength steel (arms/outriggers), Xuzhou Saiyue horizontal slewing bearing, 200L hydraulic tank (liquid level gauge), 40ml/r fixed quantity pump (stable output), 13 cylinders (locking mechanism). 5-year durability tested, ≤5% annual maintenance cost.

Aesthetics & Quality: Premium brand paint (smooth/wear-resistant, sharp lines), ISO/CE-certified signage, aluminum alloy basket + toolbox. 20%+ rental market premium (industrial aesthetics + pragmatism).

Customer Testimonial-level Advantages

"Infrastructure Powerhouse" Choice: 32m height + 21m span double efficiency in bridge inspection, curtain wall installation, power O&M.

"Rental King" Tool: 100km/h transit + full-scenario adaptability + low maintenance, 30% shorter ROI cycle, 80%+ re-rental rate.

"Safety First" Benchmark: 13-layer safety + dual control, 15% lower insurance premiums, near-zero accident rate.

Unlock Now

This is more than an aerial work platform—it’s your "Aerial Money Printer", redefining standards in performance, safety, efficiency, and durability. Click to inquire, dominate aerial work!
