Short Description:

Wide Industry Applicability: With its excellent performance, it can perfectly adapt to the diverse high - altitude work needs of various industries....

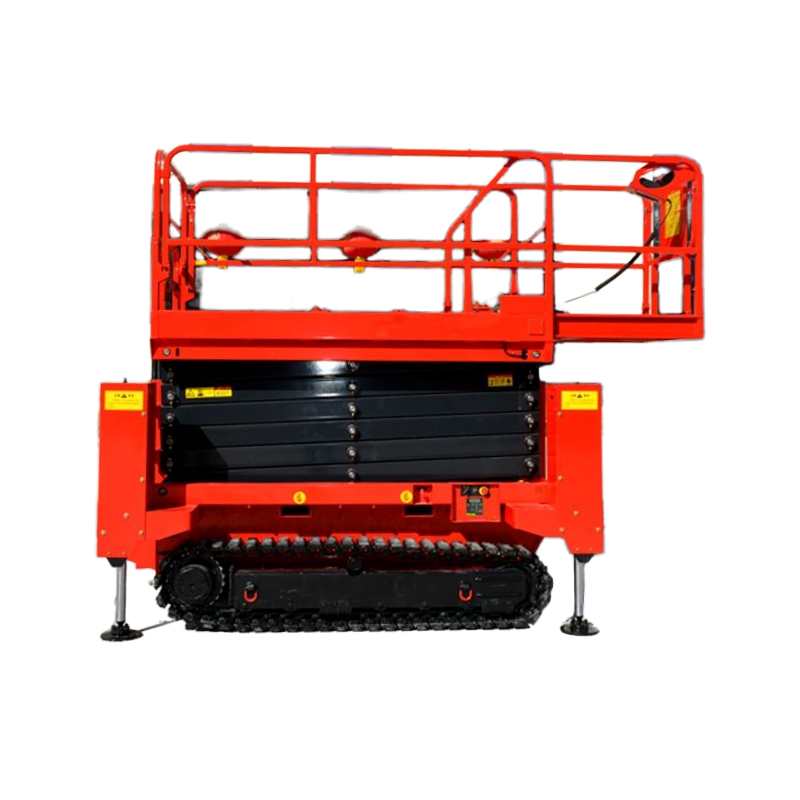

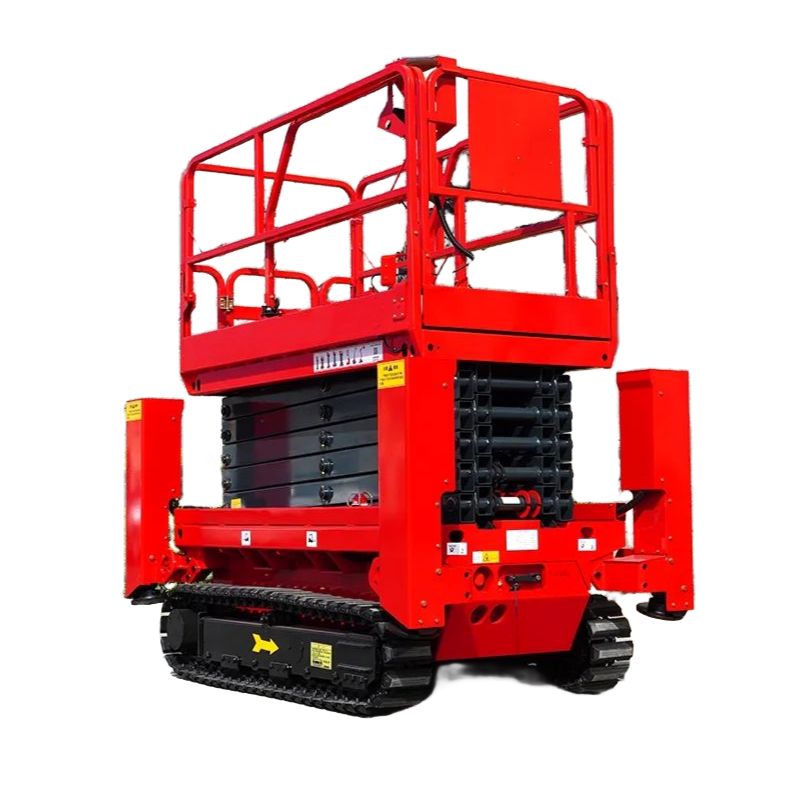

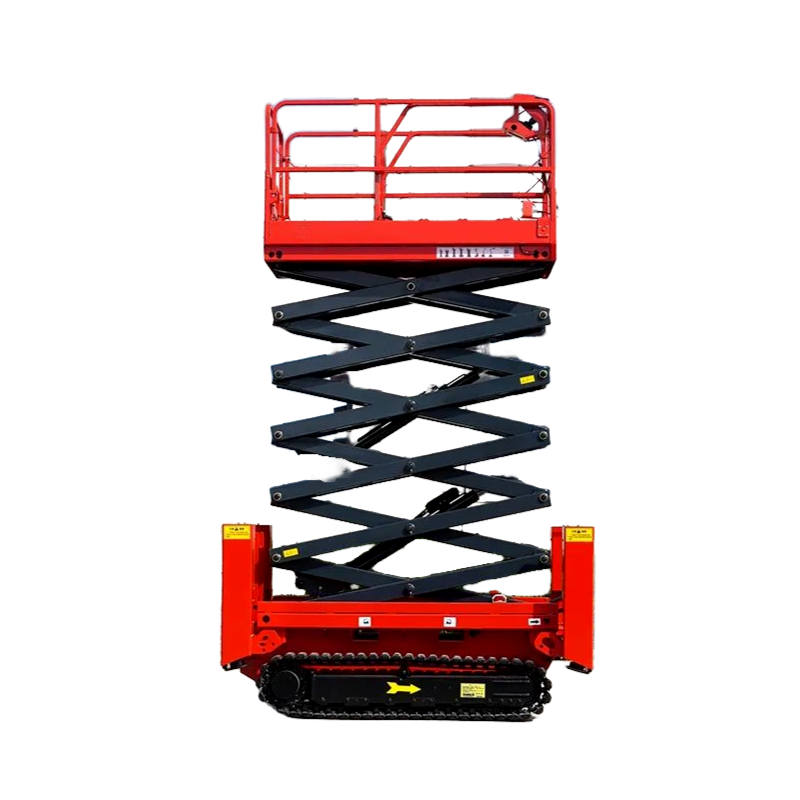

• Model: BJPT1214LD-C
• Max. Working height: 13.80m
• Max. Platform height: 11.80m
• Machine length: 2.72m
• Machine width: 1.65m
• Machine height (the guardrail is not folded): 2.542m
• Machine height (the guardrail is folded): 1.94m
• Working platform size: 2.27×1.10×1.1m
• Platform extension size: 0.9m
• Rated load: 320kg
• Extended platform safe working load: 113kg
• Liftingmotor: 48V/4.5KW
• Machine travel speed (folded state): 2.2Km/h
• Lift speed: 3 - 5m/min
• Max. Gradeability: 30%
• Working maximum allowable angle: 1.5° - 3°
• Storage battery: 8×12V/100Ah
• Charger: 48V/35A
• Machine weight: 3700kg
