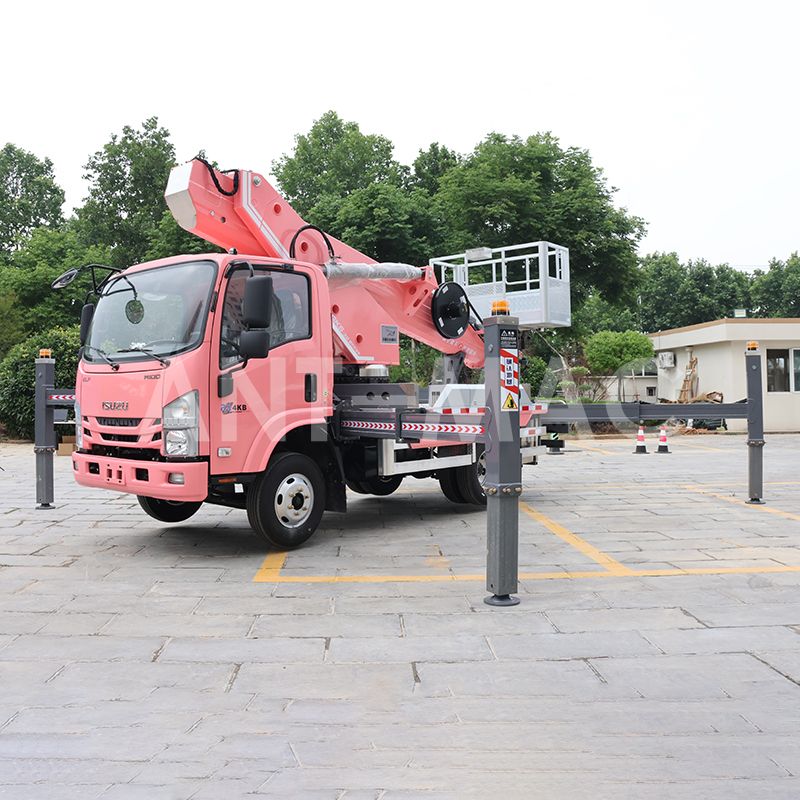

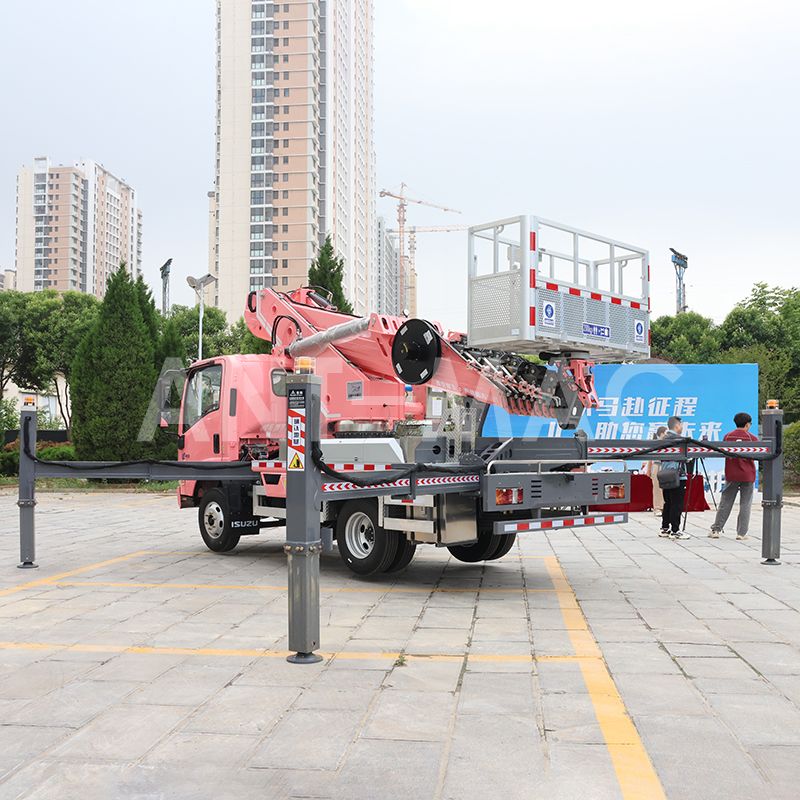

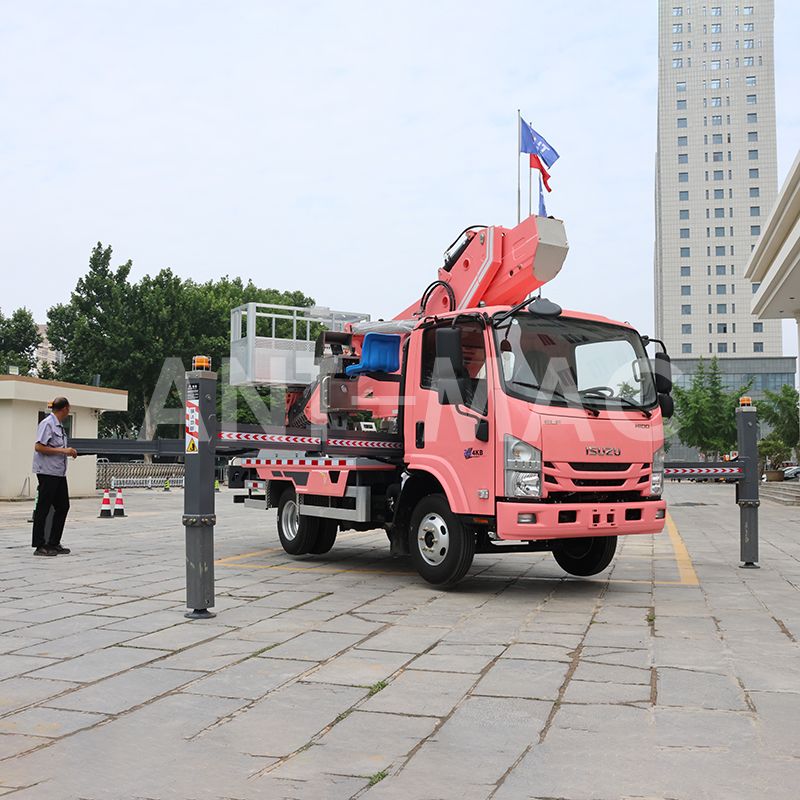

We have recently launched a newly upgraded aerial work platform truck. Designed for applications such as urban building maintenance, municipal upkeep, power engineering, and large-scale facility construction, this model offers enhanced working height, operational range, vehicle stability, and user service experience. This upgrade goes beyond hardware specifications, representing a significant commitment to product customization and after-sales support.

I. Comprehensive Breakthroughs in Operational Capability

Maximum working height increased to 32 meters, capable of servicing the exterior walls of buildings up to approximately 10 stories high;

Maximum operational range reaches 21 meters while maintaining a working height of 27 meters, effectively balancing horizontal reach and vertical height;

Rated platform load of 200 kg, accommodating two operators and their tools simultaneously.

II. Optimized Chassis and MobilityVehicle dimensions: 5,995 mm (length), 2,090 mm (width), and 3,150 mm (height), balancing road accessibility with operational stability;

Wheelbase of 2,800 mm with front and rear overhangs of 1,145 mm and 1,750 mm respectively, ensuring a more balanced center of gravity;

Minimum ground clearance of 200 mm and an approach angle of 20°, allowing for navigation across complex job site terrain;

Maximum driving speed of 100 km/h and a gross vehicle weight under 4,495 kg, meeting requirements for "Blue Plate" registration and Class C driver's licenses.

III. Upgraded Outrigger System and Operational Efficiency

Longitudinal span of 5,900 mm and front/rear lateral spans of 6,250 mm, providing exceptional resistance to tipping;

Outrigger deployment and retraction times are ≥60 seconds, balancing stability with safety protocols;

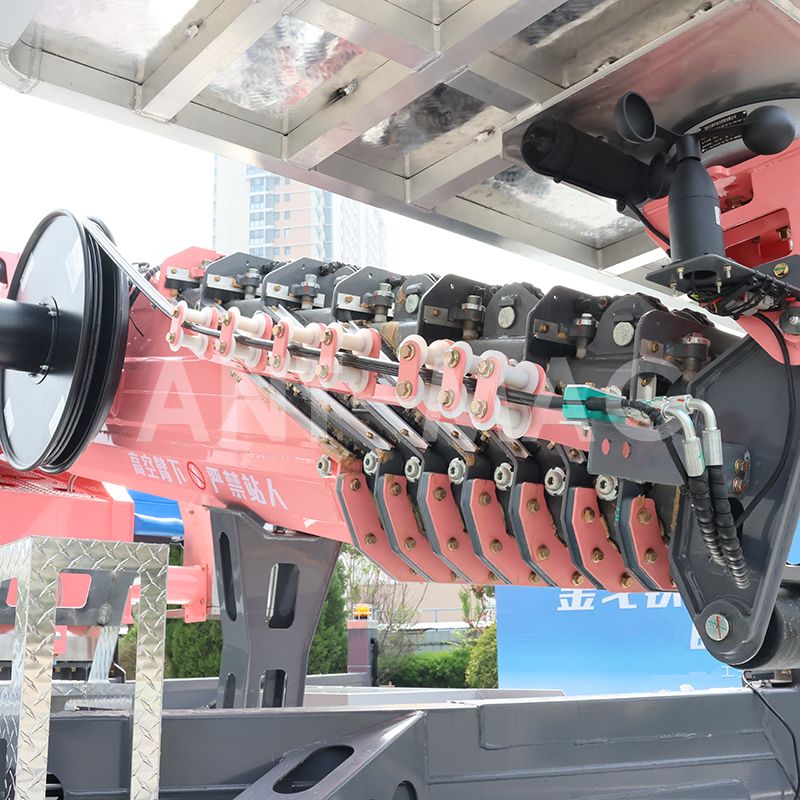

Boom luffing time is 75 seconds, slewing speed is ≥60 seconds per revolution, and platform lifting/lowering time is controlled within 120 seconds (lowering >95 seconds), resulting in an efficiency increase of approximately 15% compared to the previous generation. IV. Better Understanding of User Needs: Customization Support & One-Year Warranty

This upgrade brings simultaneous improvements to product services:

✅ Customizable Configurations

Tailor the platform dimensions, control system language, outrigger type, body color, and additional features (such as hydraulic generators or emergency descent systems) to specific operational scenarios—truly achieving a "vehicle-to-task" match.

✅ One-Year Comprehensive Warranty

Enjoy a 12-month, unlimited-hour warranty on the entire vehicle starting from the delivery date. Coverage extends to core components including structural parts, hydraulic systems, and electrical control systems, backed by a nationwide service network with a response time of under 48 hours.

✅ Lifetime Technical Support

Benefit from ongoing OEM technical support, spare parts supply, and remote operator training even after the warranty expires, helping to reduce long-term operating costs.

✅ Free Initial Operator Training

Professional training—conducted either on-site or via video—is provided upon purchase to ensure operators are qualified and compliant for safe operation.

V. Application Scenarios and User Value

The upgraded equipment is ideally suited for:

Exterior wall construction and maintenance for high-rise buildings;

Maintenance of large venues, bridge piers, and elevated streetlights;

Landscaping (tree trimming) and high-altitude signage installation;

Flexible operations in narrow spaces or on unpaved terrain.

In short: It goes higher and further, while offering greater stability and peace of mind.

To obtain a detailed product brochure, request a custom quote, or schedule an on-site demonstration, please visit our official website or contact us directly.
