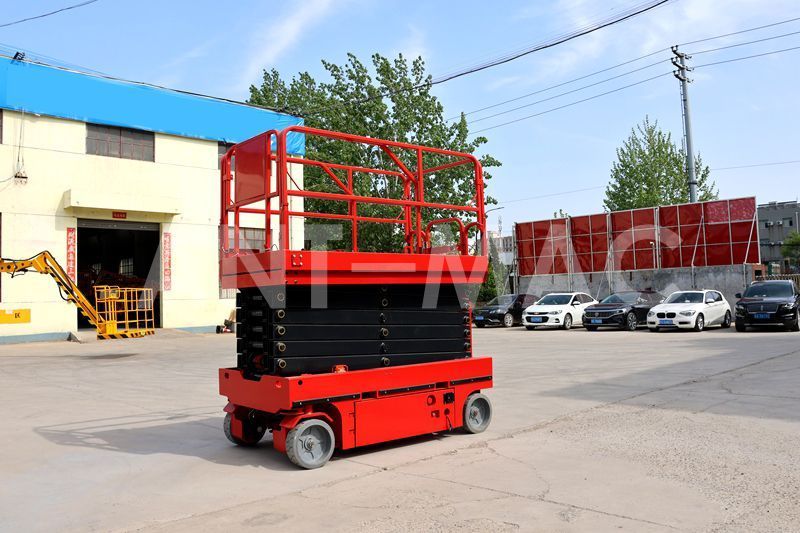

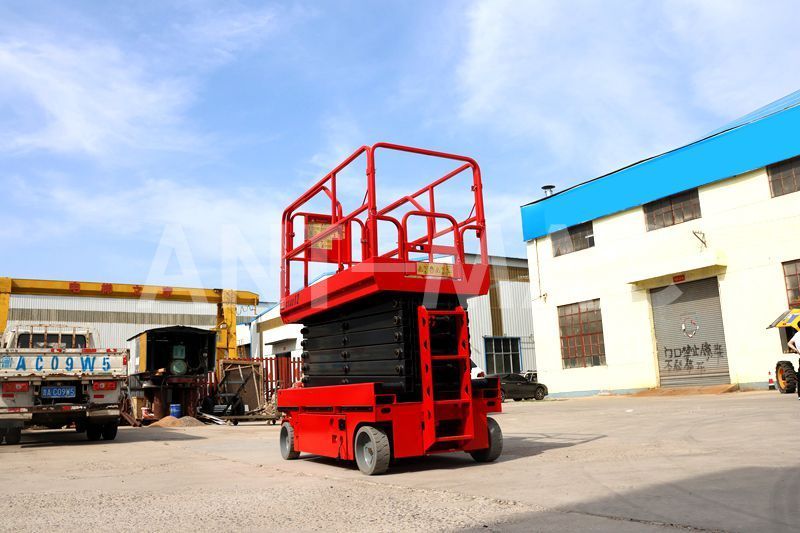

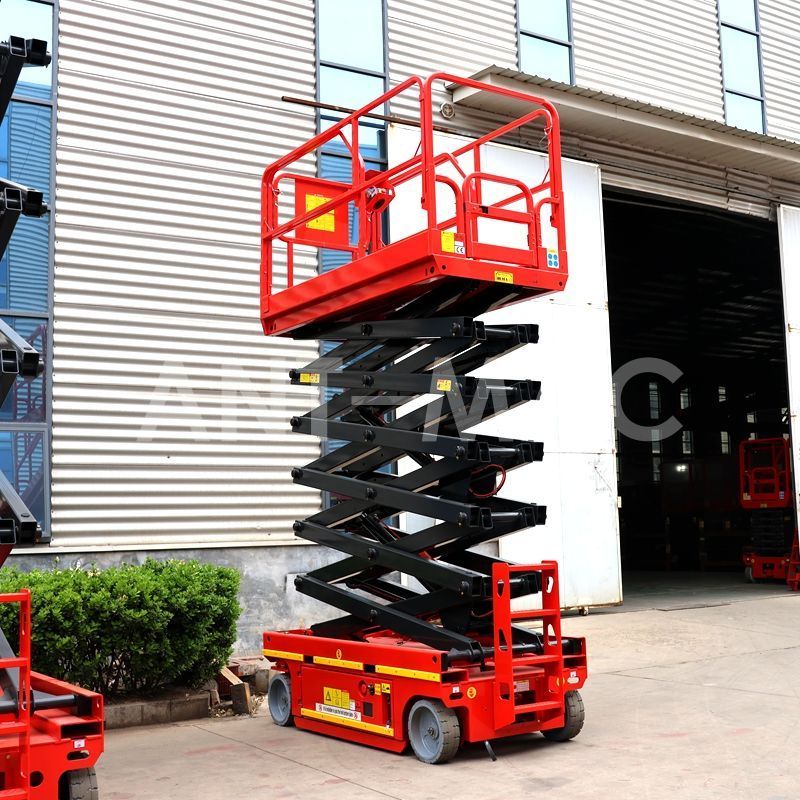

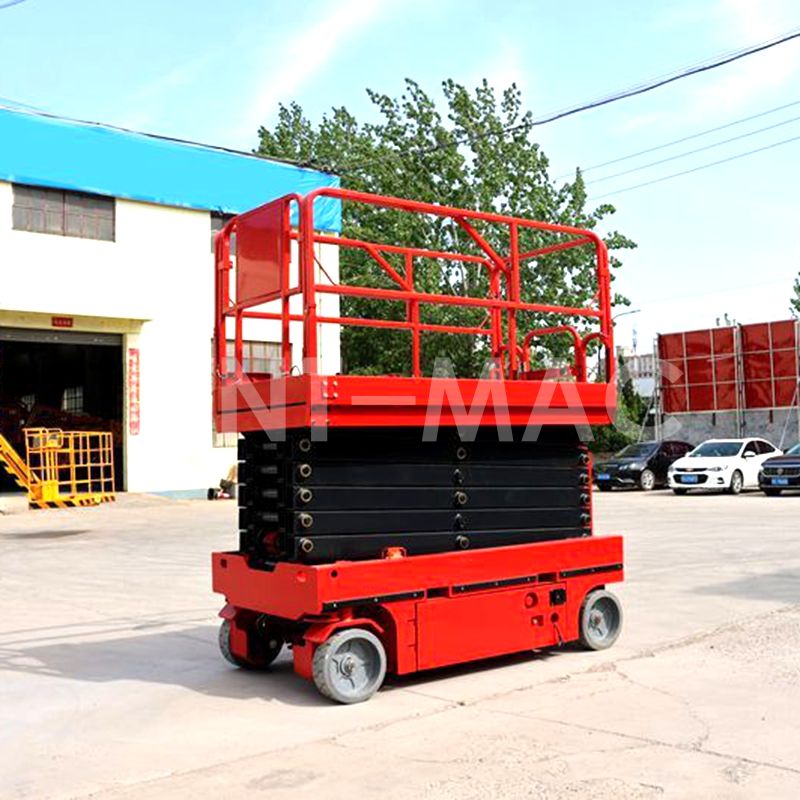

The BJSP0608 self-propelled hydraulic scissor lift is a device specially designed for efficient aerial work. With excellent performance parameters, durable structural design and thoughtful detail handling, it can play an important role in various indoor and outdoor work scenarios.

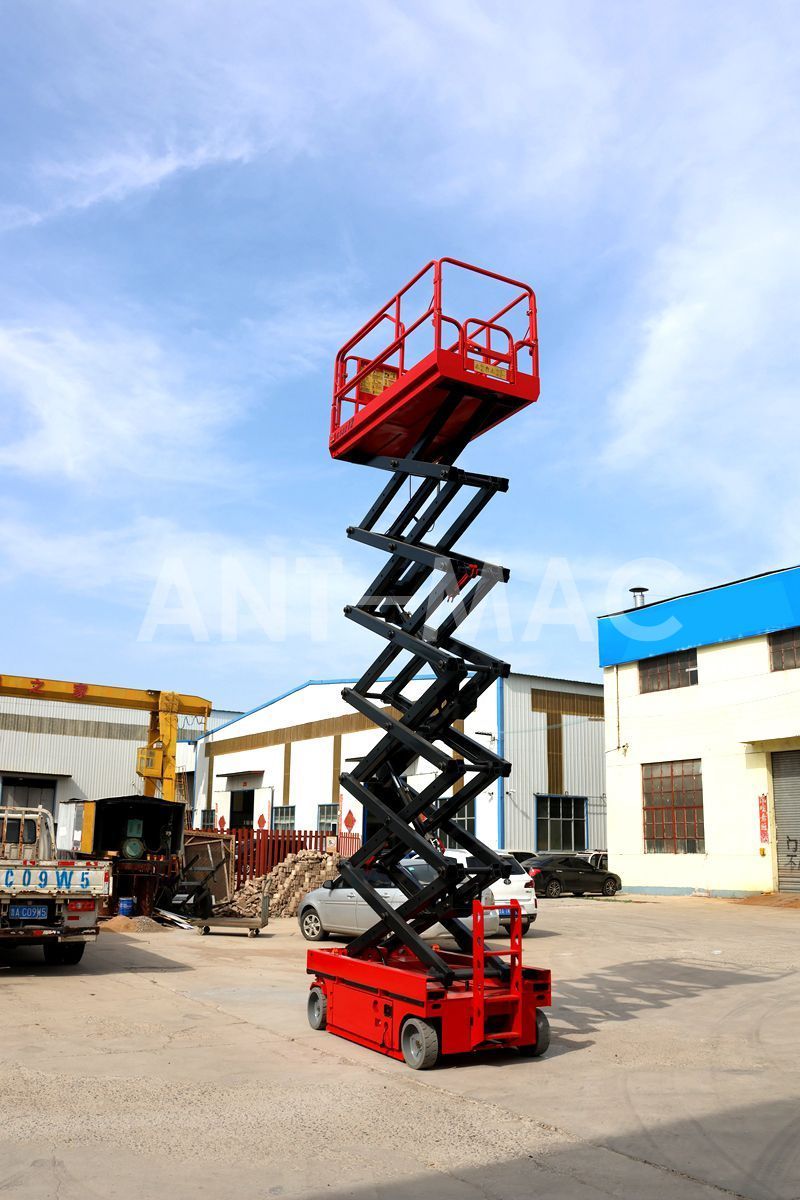

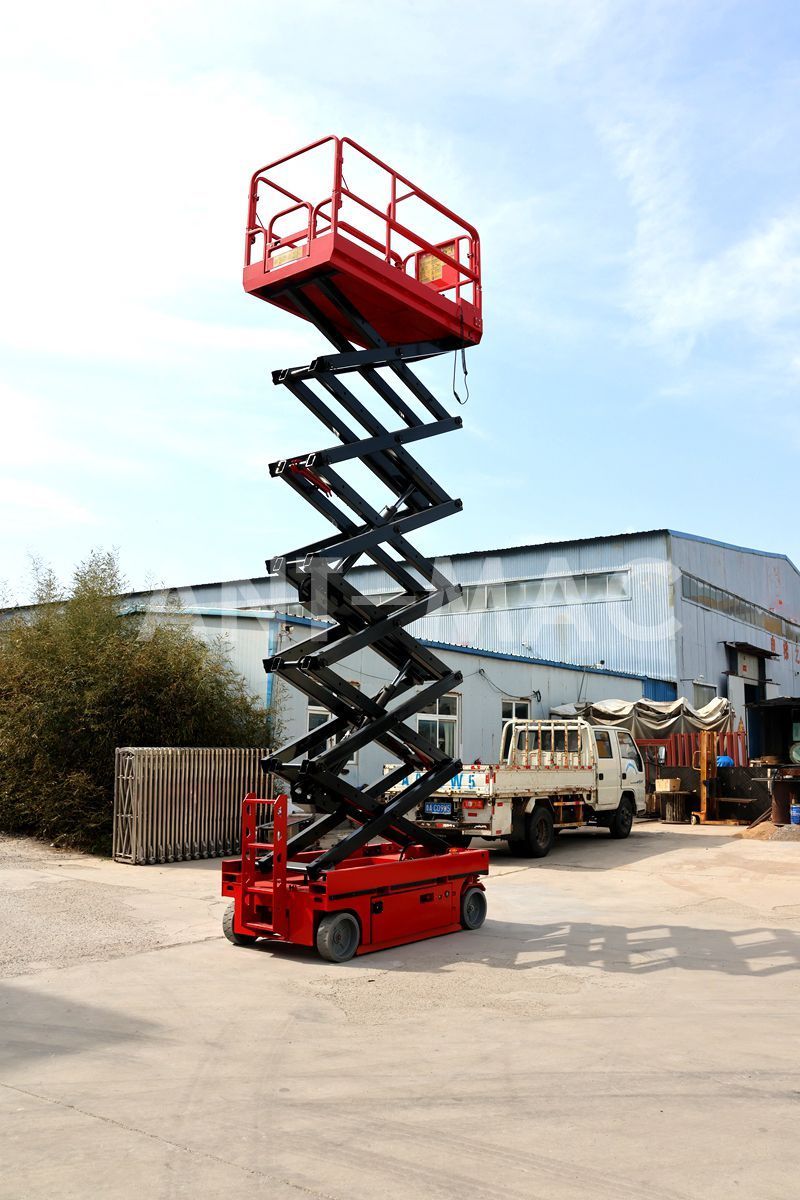

In terms of working height, the working height (A + 2) of this lift can reach 7.8 meters, and the maximum platform height is 5.8 meters. It can easily meet the needs of medium and low altitude operations such as indoor ceiling maintenance, lamp installation, shelf arrangement and outdoor low-rise building exterior wall maintenance, providing convenient high-altitude operation conditions for operators.

In terms of load-carrying capacity, its rated load is 230 kg, which can accommodate 2 people working at the same time; the rated load of the extended platform is 120 kg. When it is integral to amplify the working range, it can meet the working wants of 1 person, and it is adequate to raise the equipment and substances wanted for the work to make sure the clean development of the work.

The tools has a compact and lifelike structure design, with an common size of solely 1.84 meters, a width of 0.81 meters, and an average peak of 1.56 meters when the guardrail is folded. This small dimension allows it to go freely thru slim passages, doorways and work areas with constrained space, such as purchasing mall aisles and manufacturing unit workshops, which radically improves the site visitors ability and work flexibility in complicated environments.

In phrases of motion and lifting performance, the machine's riding velocity is four km/h in the stowed state, which is handy for speedy switch in the work web page and reduces non-working time; it is 0.8 km/h in the raised state, making sure security at some point of high-altitude operations. The lifting velocity is additionally very efficient, taking solely 18 seconds to upward jostle and 28 seconds to fall, which can shortly reply to the adjustment desires of the working peak and enhance the universal work efficiency.

Facing different terrain conditions, the BJSP0608-A also performs well. It has a maximum climbing capacity of 25% and a maximum allowable working angle of 1.5°/3°. It can hold a secure working kingdom on sloped websites such as out of doors mild slopes and warehouse unloading areas, making sure work safety.

In phrases of strength supply, the gear makes use of 24-volt DC power, powered by using four 6-volt 225-ampere-hour batteries. It now not solely offers secure energy output to meet the wishes of long-term work, however additionally is inexperienced and environmentally friendly, appropriate for indoor locations with excessive environmental necessities. At the same time, it is equipped with a highly reliable charger in the industry, which has high charging efficiency and stable performance, ensuring the continuous working capacity of the equipment.

The design of the total weight of 1545 kg, while ensuring the stability of the equipment itself, is also convenient for transportation and movement, and will not cause excessive pressure on the ground of the work site.

As a self-propelled hydraulic scissor lift, its characteristics are particularly prominent. The durable and reliable fork frame in the industry has passed 100,000 fatigue tests, which fully proves its excellent structural strength and service life, and can withstand long-term and frequent work use. The newly optimized platform has been improved in safety and comfort, providing a stable operating space for operators. In addition, the equipment pays attention to detail design. From the selection of parts to the overall assembly process, it shows strong strength and ensures the stable operation of the equipment under various working conditions.

Whether in commercial places, industrial factories or municipal facilities maintenance and other fields, the BJSP0608 self-propelled hydraulic scissor lift can rely on its efficient, reliable and flexible characteristics to become a capable assistant for operators.
