IP67 Protection and 30% Climbing Capacity Redefine Industrial Aerial Work Standards

Global Debut: Compact Intelligent Scissor Platform Breaks Through Traditional Design

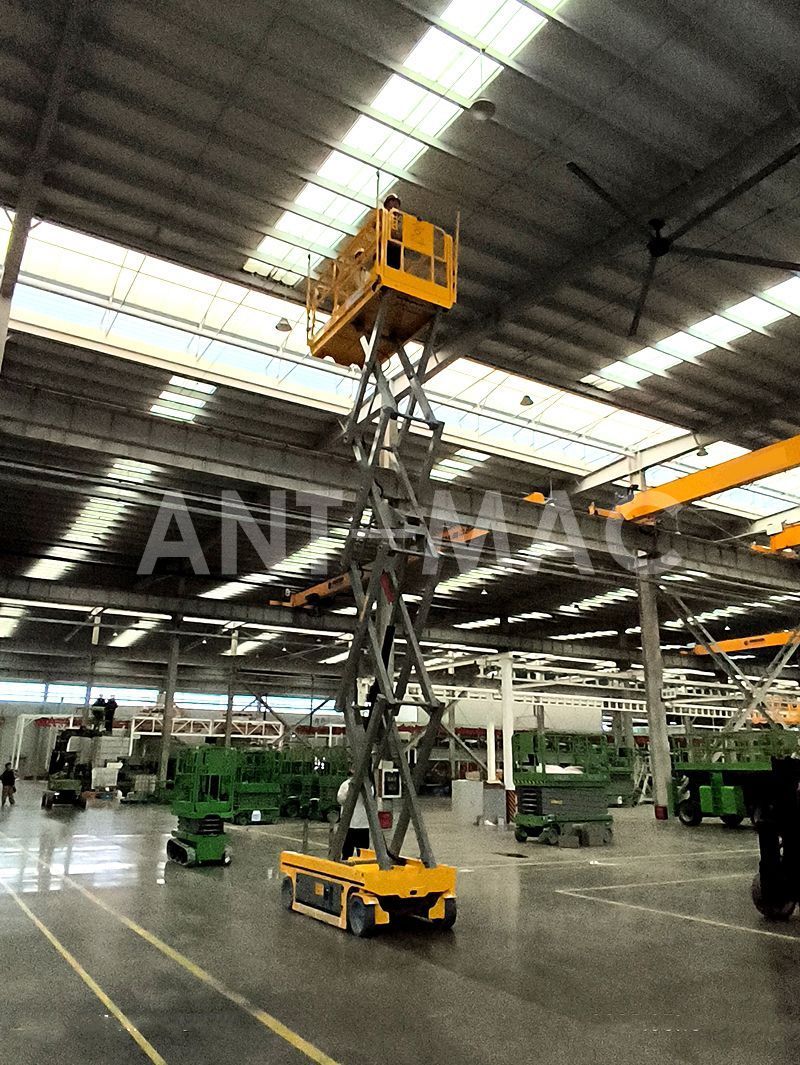

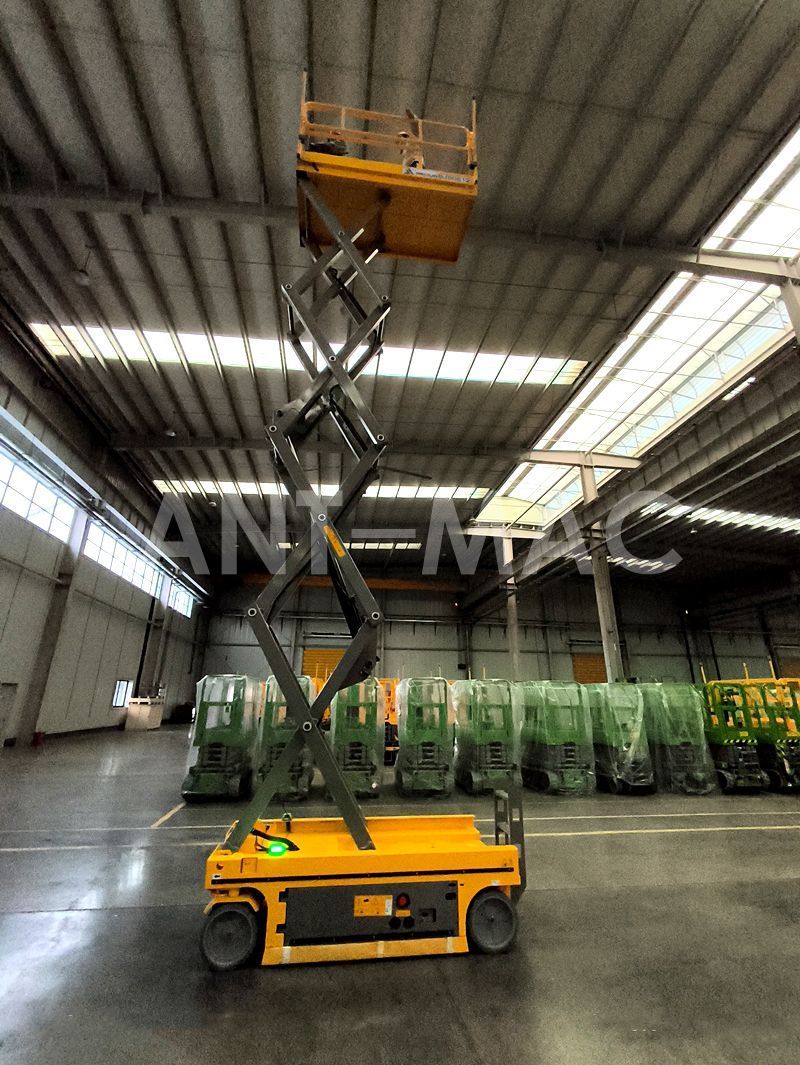

Ant's new-generation AC-driven scissor lift, BJSP1012AC-A, redefines the performance benchmark for aerial work equipment with its groundbreaking compact design and intelligent control system. Built for complicated working conditions, this tools points a 24V DC strength device and IP67-level water-resistant technology. It achieves a rated load of 320kg at a platform top of 9.8 meters whilst balancing environmental friendliness and an ultra-long provider life, making it an best preference for industrial, municipal, warehousing, and different fields.

Core Technical Highlights: Comprehensive Innovation from Structure to Intelligence

Intelligent Electronic Control System: Dynamic Safety Protection

Equipped with high-precision sensors and algorithms, it monitors equipment status in real time, automatically identifies 30% slopes, and adjusts power output. Additionally, through rollover warning and electronic limiting functions, it ensures stable operation within a working angle of 1.5°/3°. This system not only solves the power attenuation issue of traditional equipment when climbing slopes but also optimizes energy consumption through data feedback, increasing single-charge endurance by 15%.

Compact Body and Low-Wear Steering Mechanism

With an overall length of only 2.45 meters, width of 1.18 meters, and folded height of 1.92 meters, it can easily pass through standard door frames. The innovative double-link steering mechanism adopts adaptive angle compensation technology, reducing tire wear during turning by 40%. Combined with a driving speed of 3.2km/h in the stowed state, it significantly improves work efficiency in narrow spaces.

IP67 Waterproof and Maintenance-Free Design

The fully sealed AC drive system (for driving/lifting) reaches IP67 protection level, enabling continuous operation in rainy or dusty environments. Paired with 4 units of 6V 240Ah lead-acid batteries, the equipment not only achieves zero emissions but also reduces annual maintenance costs by 60% through its maintenance-free design, with a battery life of over 10 years.

Application Scenarios: Full-Scenario Adaptation from Factories to Outdoor Environments

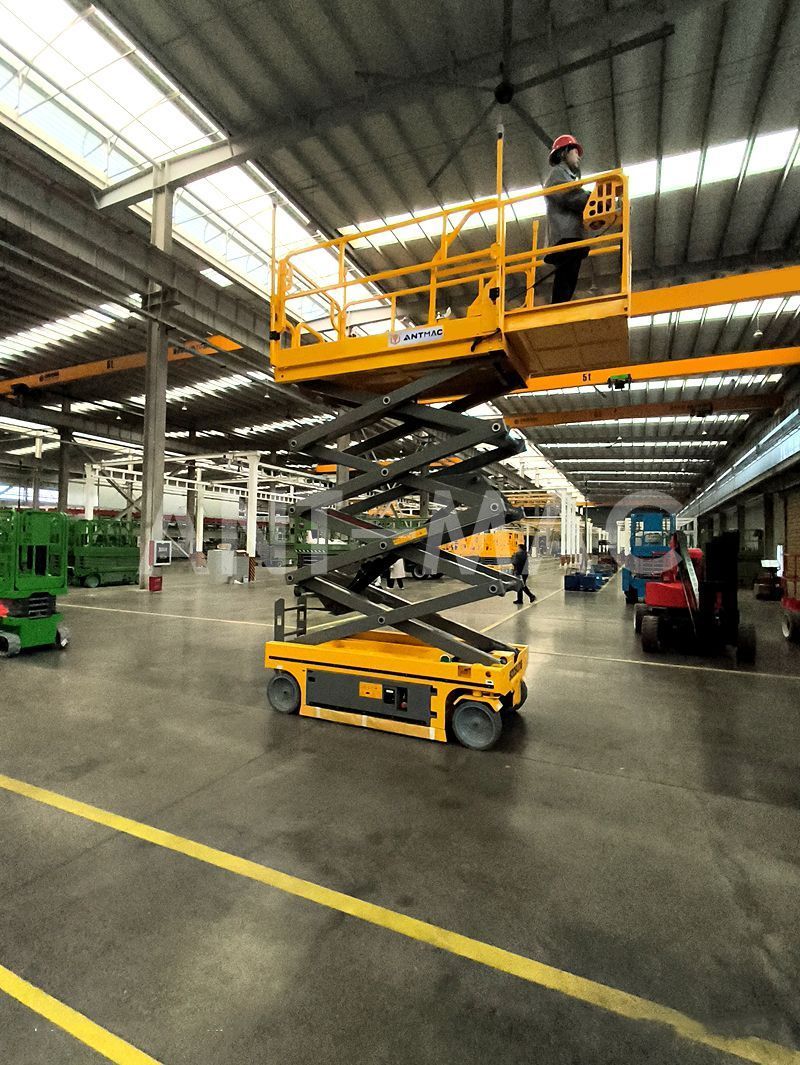

Industrial Manufacturing: With a 320kg rated load and a 0.9-meter prolonged platform, it can elevate two employees and equipment simultaneously, assembly the wishes of manufacturing line gear set up and maintenance.

Municipal Engineering: Boasting 30% mountain climbing potential and IP67 water-proof rating, it without difficulty handles out of doors operations such as city avenue lighting fixtures upkeep and bridge inspection.

Warehousing and Logistics: Its 1.18-meter width and bendy guidance mechanism make it appropriate for rack set up in stereoscopic warehouses and high-position cargo handling, lowering channel occupancy.

Green Future: Dual Commitments to Environmental Protection and Reliability

The BJSP1012AC is powered through lead-acid batteries, lowering carbon emissions with the aid of 95% in contrast to ordinary diesel equipment. Meanwhile, 98% of lead-acid battery substances are recyclable, complying with the EU RoHS directive and home environmental policies. The gear has additionally handed EN 1494 certification and is geared up with seven security mechanisms (including emergency descent and overload protection) to make certain secure operation during its lifestyles cycle.

Industry Trend Insight

As the electrification rate of global aerial work equipmentexceeds 40%, users are placing higher demands on equipment intelligence and environmental performance. The R&D director of Ant stated, "The birth of BJSP1012AC marks our shift from simply providing equipment to delivering overall solutions integrating 'safety + efficiency + sustainability'. In the future, we will continue to deepen the application of AI and IoT technologies to drive the industry toward unmanned and zero-carbon development."

Ant is a world-leading manufacturer of aerial work equipment, specializing in the R&D and production of scissor and boom lifts. Guided by the philosophy of "Innovation Drives Safety", its products cover a working height range of 4-56 meters, serving over 30 industries including construction, electric power, and aviation, with sales and service networks in more than 60 countries worldwide.
