Short Description:

Sensitive and Reliable Braking System: It is equipped with a sensitive and reliable braking device to ensure operation safety....

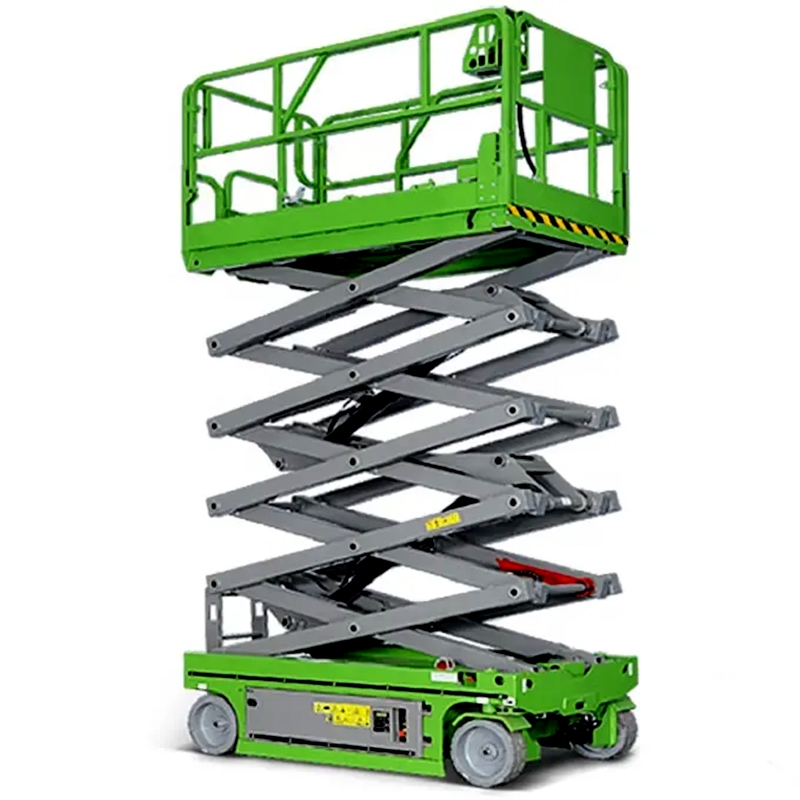

• Model: BJSP0812-A
• Rated load: 460 kg
• Total Weight: 2450 kg
• Rated load of extension platform: 120 kg
• Maximum number of workers: 2/1
• Working height (A + 2): 9.9 m
• Maximum platform height: 7.9 m
• Length of the whole machine (B): 2.45 m
• Overall width (C): 1.18 m
• Overall width - fence folding (D): 1.80 m
• Platform extension size: 0.9 m
• Machine travel distance (stowed / drifted): 3.2 / 0.8 km/h
• Rising / falling speed (s): 30 / 30 sec
• Maximum climbing ability: 30%
• Maximum allowable working angle: 1.5° / 3°
• Power source: 24V DC (4*6V225Ah Battery)
