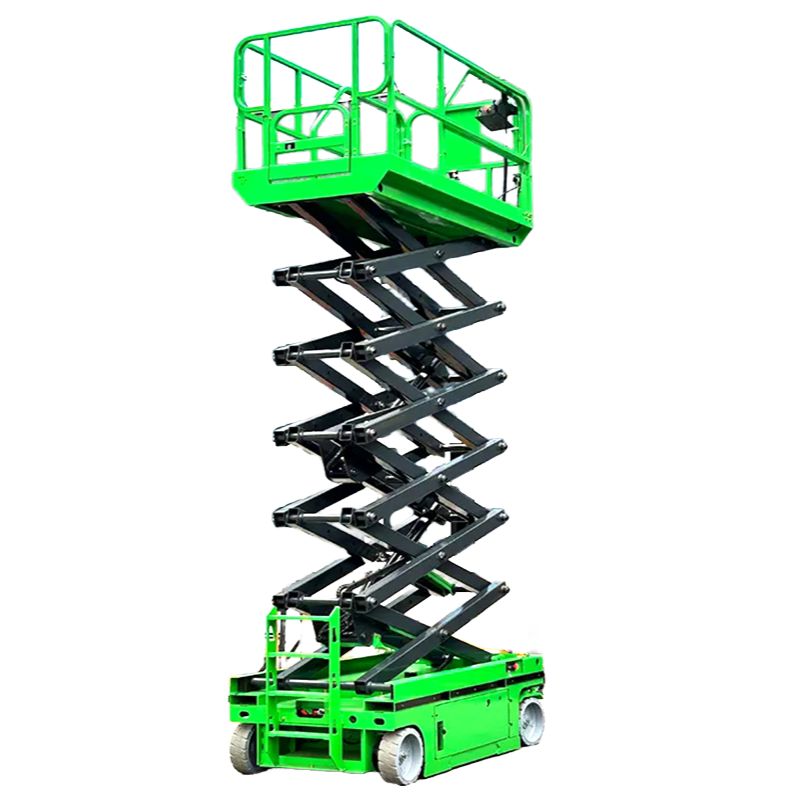

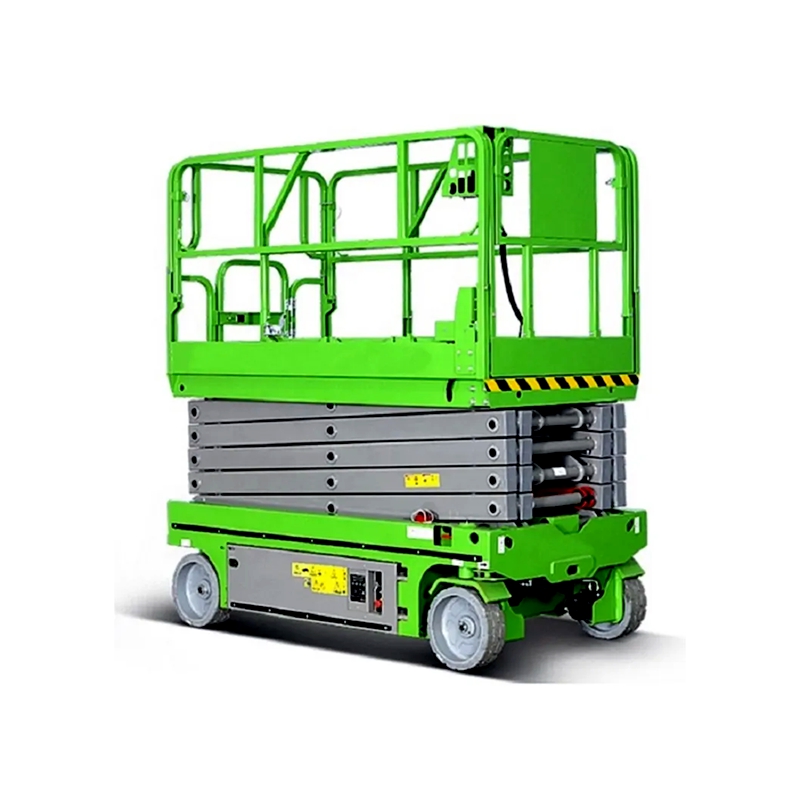

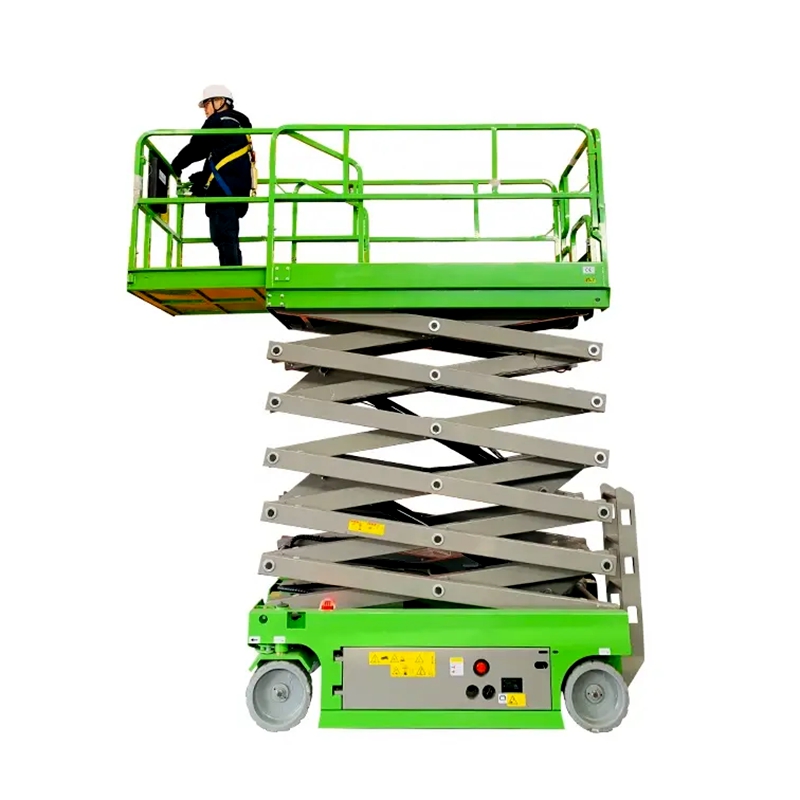

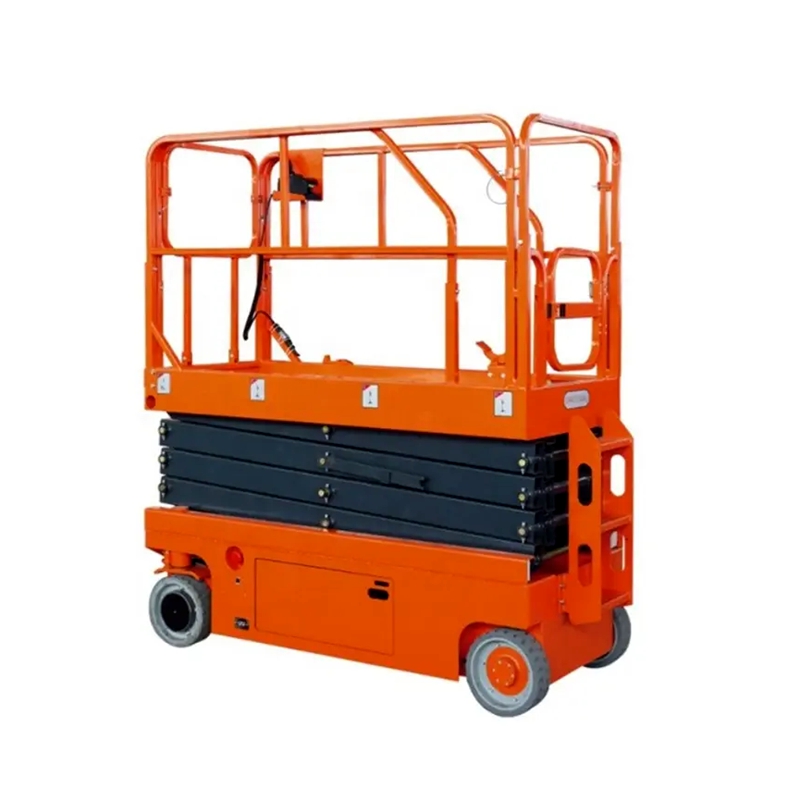

Short Description:

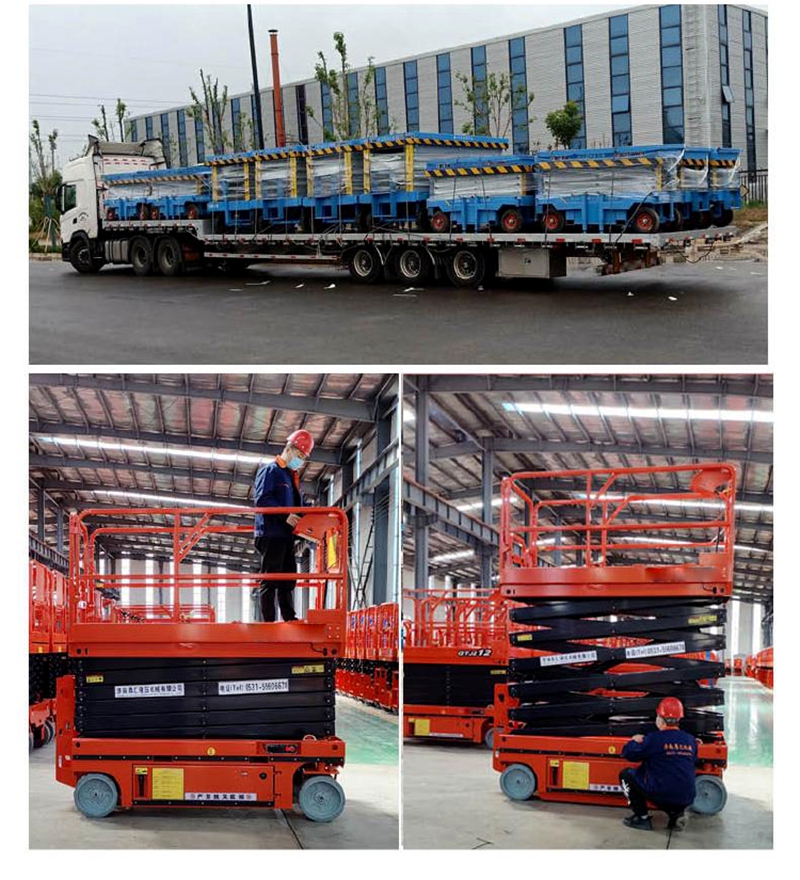

Convenient Transportation and Storage: With a reasonable volume design, it is convenient for transportation and storage....

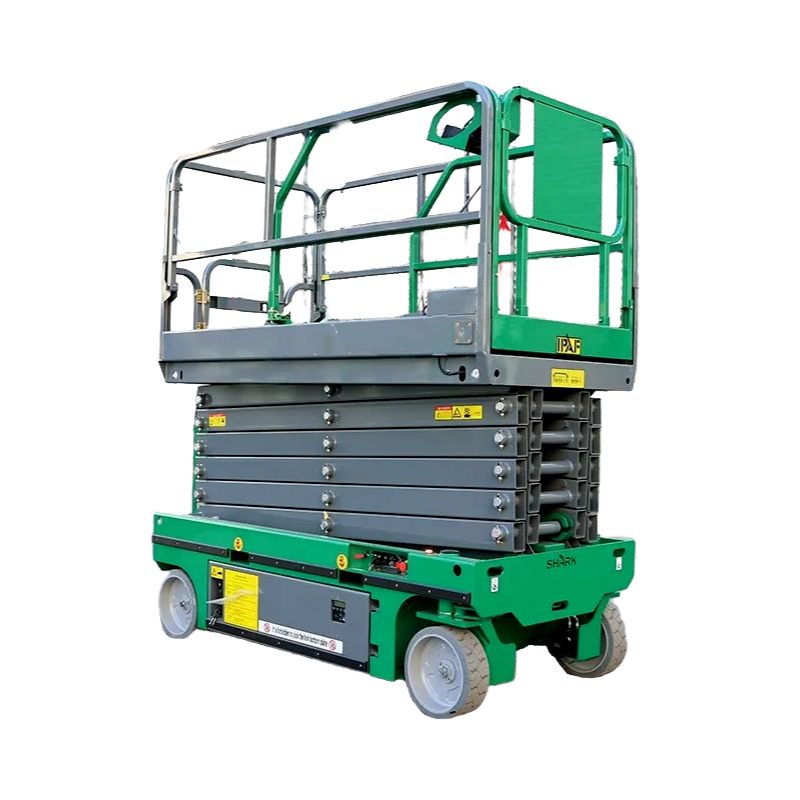

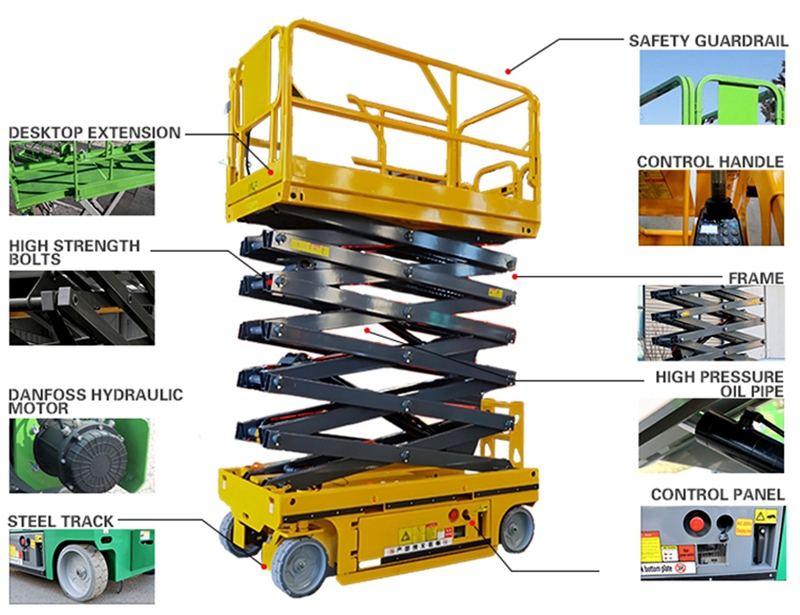

• Model: BJSP0607AC-A
• Rated load: 230 kg
• Total Weight: 1550 kg
• Rated load of extension platform: 120 kg
• Maximum number of workers: 2/1
• Working height (A + 2): 7.8 m
• Maximum platform height: 5.8 m
• Length of the whole machine (B): 1.84 m
• Overall width (C): 0.79 m
• Overall width - fence folding (D): 1.57 m
• Platform extension size: 0.9 m
• Machine travel distance (stowed / drifted): 4.0 / 0.8 km/h
• Rising / falling speed (s): 18 / 28
• Maximum climbing ability: 30%
• Maximum allowable working angle: 1.5° / 3°
• Power source: 24V DC (4*6V225Ah Battery)
