Short Description:

Rapid Fault Diagnosis and Repair: It has a built - in intelligent fault diagnosis system that can quickly locate problems, greatly shortening the repair time and reducing losses caused by equipment downtime....

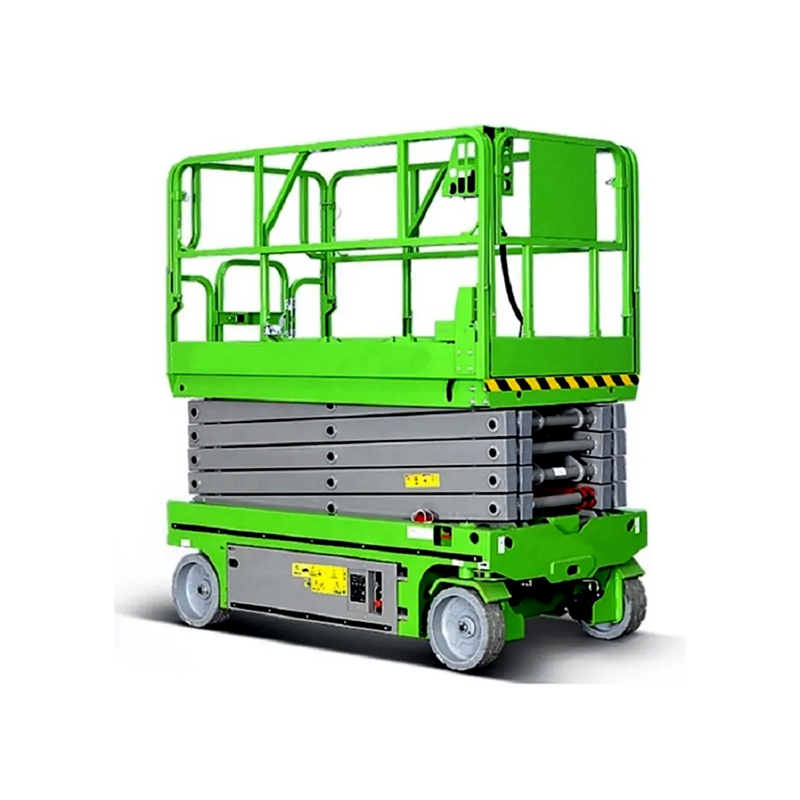

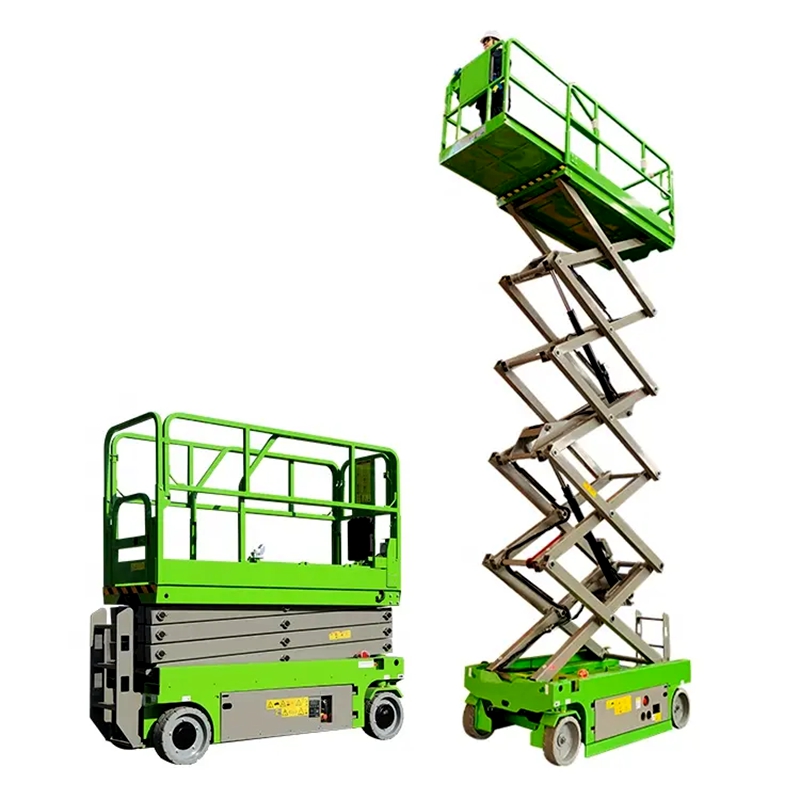

• Model: BJSP1414AC-A
• Rated load: 300 kg
• Total Weight: 3500 kg
• Rated load of extension platform: 120 kg
• Maximum number of workers: 2/1
• Working height (A + 2): 15.8 m
• Maximum platform height: 13.8 m
• Length of the whole machine (B): 2.82 m
• Overall width (C): 1.40 m
• Overall width - fence folding (D): 2.11 m
• Platform extension size: 0.9 m
• Machine travel distance (stowed / drifted): 3.2 / 0.8 km/h
• Rising / falling speed (s): 70 / 65 sec
• Maximum climbing ability: 25%
• Maximum allowable working angle: 1.5° / 3°
• Power source: 24V DC(4*12V150Ah Battery）
